product name

Tecumseh SBV-2331A 4-Cycle Short Blocks Vertical

Model: SBV-2331A

Save
 Part Not Listed?Part Not Listed?
product name

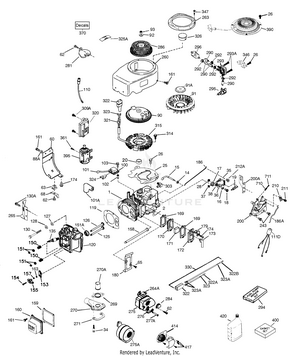

Engine Parts List #1

...
...
1
CYLINDER TPC-37467
...
2
PIN TPC-27652
...
14
WASHER TPC-28277
...
15
GOVERNOR ROD TPC-35324
...
20
OIL SEAL TPC-35319
...
38
RET RING TPC-29642
...
119
GASKET TPC-36932
...
159
GASKET TPC-35952
...
169
GASKET TPC-27896A
...
170
BREATHER TPC-28423
...
171
ELEMENT TPC-28424
...
172
VALVE COVER TPC-37555
...
173
TUBE TPC-37591
...
174
SCREW TPC-650128
...
269
GASKET TPC-35762
...
361A
SCREW TPC-651071
...
400
GASKET SET TPC-36947B

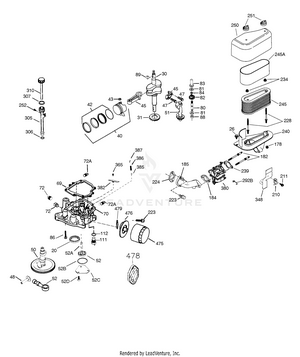

Engine Parts List #2

...
...
20
OIL SEAL TPC-35319
...
30
CRANKSHAFT-NLA TPC-36924A
...
31
GEAR TPC-35327
...
40
PISTON ASSY STD TPC-35776B
...
42
RING SET STD TPC-35779
...
43
RET RING TPC-35772
...
45
CONN ROD TPC-36925A
...
47
SCREW TPC-651033A
...
48
VALVE LIFTER TPC-35313A
...
50
CAMSHAFT TPC-37078
...
51
WEIGHT TPC-35315A
...
69
GASKET TPC-35317
...
70
MTG FLANGE TPC-36987
...
72A
PIPE PLUG TPC-28534
...
72A
PIPE PLUG TPC-28483
...
72
PIPE PLUG TPC-31927
...
80
GOV SHAFT TPC-35712
...
81
WASHER TPC-651080
...
82
GEAR TPC-35321
...
83
GOV SPOOL TPC-35322
...
84
RET RING TPC-29193
...
86
SCREW TPC-650833
...
88
SPACER TPC-31707A
...
184
GASKET TPC-36352
...
224
GASKET TPC-36942
...
239
GASKET TPC-36358
...
306
GASKET TPC-34265
...
361A
SCREW TPC-651071
...
...
...
