product name

Tecumseh SBH-SBH-58209 4-Cycle Short Blocks Horizontal

Model: SBH-SBH-58209

Save
 Part Not Listed?Part Not Listed?
product name

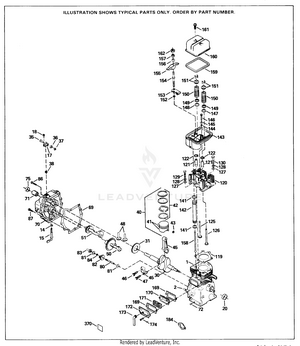

Engine Parts List

...
...
1
CYLINDER TPC-35677A
...
2
PIN TPC-27652
...
14
WASHER TPC-28277
...
15
GOVERNOR ROD TPC-35685
...
17
CLAMP ASSY TPC-35687A
...
18
SCREW TPC-651018
...
20
OIL SEAL TPC-35319
...
30
CRANKSHAFT TPC-35701A
...
31
GEAR TPC-35327
...
35
SCREW TPC-29826
...
36
WASHER TPC-29918
...
37
NUT TPC-29216
...
38
RET RING TPC-29642
...
40
PISTON ASSY 020 TPC-34862A
...
40
PISTON ASSY STD TPC-35776B
...
40
PISTON ASSY 010 TPC-35777A
...
41
PISTON ASSY 020 TPC-34862A
...
41
PISTON ASSY 010 TPC-35777A
...
41
PISTON ASSY STD TPC-35776B
...
42
RING SET 020 TPC-35781
...
42
RING SET STD TPC-35779
...
42
RING SET 010 TPC-35780
...
43
RET RING TPC-35772
...
45
CONN ROD TPC-36898A
...
46
SCREW TPC-651063
...
47
SCREW TPC-651033A
...
48
VALVE LIFTER TPC-35313A
...
50
CAMSHAFT TPC-35682A
...
51
WEIGHT TPC-35315A
...
69
GASKET TPC-35683
...
70
CYL COVER TPC-35684B
...
71
GASKET (OBS) FUEL CAP TPC-35-377
...
72
PIPE PLUG TPC-27642
...
75
OIL SEAL TPC-35319
...
80
GOV SHAFT TPC-35751
...
81
WASHER TPC-651080
...
82
GEAR TPC-35321
...
83
GOV SPOOL TPC-35322
...
84
RET RING TPC-29193
...
86
SCREW TPC-650833
...
87
SCREW TPC-650832
...
119
GASKET TPC-35306A
...
120
CYL HEAD TPC-35307
...
121
VALVE GUIDE TPC-730218
...
122
Ring, Retaining TPC-792035
...
125
EXH VALVE OS TPC-35433
...
125
EXH VALVE STD TPC-35308
...
126
INT VALVE ST TPC-35309
...
126
INT VALVE OS TPC-35432
...
127
WASHER TPC-650691
...
128
WASHER KIT TPC-730324
...
129
SCREW TPC-650746
...
130
SCREW--NLA TPC-650692
...
141
O RING TPC-33481
...
142
ROD TUBE TPC-35475
...
143
ROCKER HSG TPC-35310
...
144
O RING TPC-33484
...
145
WASHER TPC-650168
...
146
SCREW TPC-32610A
...
147
O RING TPC-33509
...
148
O RING TPC-34410
...
149
VALVE CAP TPC-33510
...
150
VALVE SPRING TPC-33507
...
151
VALVE RET TPC-33508
...
152
O RING TPC-35295
...
153
GUIDE TPC-35296
...
154
STUD TPC-650878
...
155
ROCKER ARM KIT TPC-730221A
...
156
BEARING TPC-35298
...
157
NUT TPC-28264
...
158
PUSH ROD TPC-35466
...
159
O RING TPC-35299B
...
160
COVER TPC-35300A
...
161
SCREW TPC-650879
...
162
NUT TPC-650903
...
169
GASKET TPC-27896A
...
170
BREATHER TPC-28423
...
171
ELEMENT TPC-28424
...
172
VALVE COVER TPC-28425
...
173
TUBE TPC-35350
...
174
SCREW TPC-650128
...
184
GASKET TPC-33515A
...
370
DECAL TPC-36261
...
...
...
