Tecumseh MG-610914 Magneto Parts

Model: MG-610914

Save
 Part Not Listed?Part Not Listed?
product name

Magneto

...
...
0

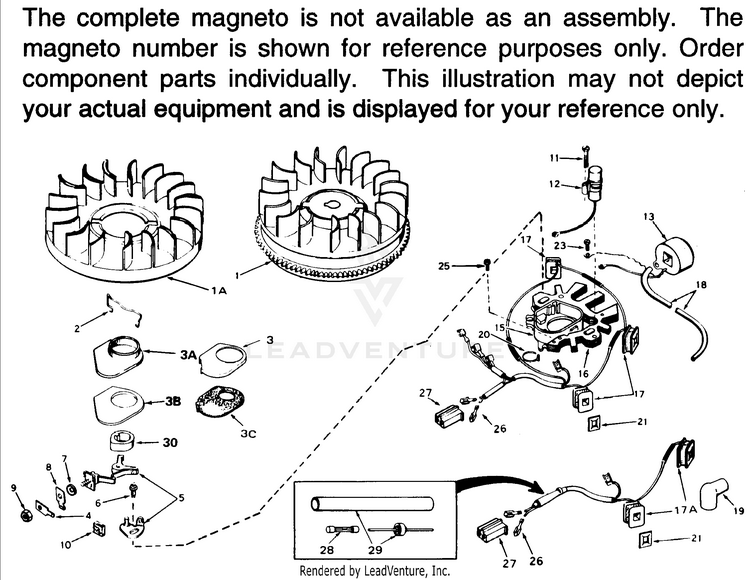

"Magneto This magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in parts breakdown. TPC-610914
...
1A
FLYWHEEL FAN TPC-610934
...
1
FLYWHEEL TPC-610915
...
2
COVER SPRING TPC-30836
...
3C
GASKET TPC-610957
...
3C
GASKET TPC-610956
...
4
TERMINAL TPC-610923
...
5
BREAKER SET TPC-30547A
...
6
SCREW TPC-29181
...
7
WASHER TPC-610385
...
8
TERMINAL TPC-33356
...
9
NUT TPC-610408
...
10
WIPER FELT TPC-30549
...
11
SCREW TPC-610593
...
12
CONDENSER TPC-30548B
...
13
COIL TPC-30560A
...
15
STATOR ASSY TPC-610916
...
16
STATOR ASSY TPC-610916
...
17
STATOR ASSY TPC-610916
...
18
LEAD WIRE TPC-30554
...
19
PLUG COVER TPC-610118
...
20
STRAP TPC-610919
...
21
SPRING TPC-610969
...
23
SCREW TPC-29117
...
26
TERMINAL TPC-610922
...
27
CONNECTOR TPC-610921
...
...
...
