Tecumseh ES-590541 Starter

Model: ES-590541

Save
 Part Not Listed?Part Not Listed?
product name

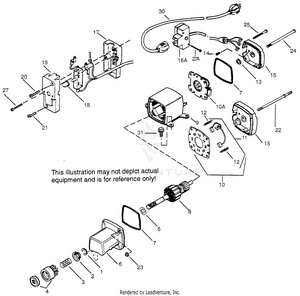

Engine Parts List

...
...
1A
RET RING TPC-31749
...
2
RETAINER TPC-33522
...
3
SPRING TPC-33769
...
4
GEAR & NUT TPC-37332
...
6
END CAP TPC-33526
...
8
ARMATURE TPC-33527
...
9
HOUSING ASSY TPC-34483
...
10
CARD ASSY TPC-33438
...
11
BRUSH ASSY TPC-33439
...
12
BRUSH SPRING TPC-33440
...
13
WASHER TPC-590500
...
14
SCREW TPC-33441
...
15
END CAP TPC-33442
...
16
SWITCH TPC-34359
...
17
SWITCH BOX TPC-33444
...
18
BUTTON TPC-33445
...
19
COVER TPC-33446
...
20
SCREW TPC-33447
...
21
SCREW TPC-33448
...
22
BOLT TPC-33529
...
23
NUT TPC-651016
...
26
SCREW TPC-650819
...
28
NUT TPC-650742
...
29
ELEC CORD TPC-32450B
...
30
SCREW TPC-650759
...
31
DECAL TPC-34161
...
...
...
