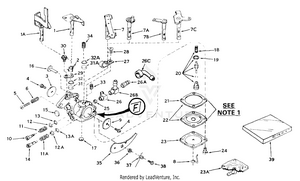

Tecumseh CA-631316 Carburetor Parts

Model: CA-631316

Save
 Part Not Listed?Part Not Listed?
product name

Carburetor

...
...
1A
SHAFT & LEV TPC-631255
...
2
SPRING TPC-631767
...
3
SHUTTER TPC-631036
...
4
SCREW TPC-650506
...
5
SCREW TPC-651025
...
6
SPRING TPC-630766
...
7
SHAFT & LEV TPC-631300
...
10
ADJ SCREW TPC-631562
...
11A
SPRING TPC-630738
...
11
SPRING TPC-630738
...
12A
WASHER TPC-630739
...
12
WASHER TPC-630739
...
13A
O RING TPC-630740
...
13
O RING TPC-630740
...
14
ADJ SCREW TPC-630737
...
15
WELCH PLUG TPC-630748
...
17
WELCH PLUG TPC-632554
...
18
SPRING TPC-631049
...
19
GASKET TPC-630742
...
20
INLET NEEDLE TPC-630932A
...
21
GASKET TPC-630750A
...
22
DIAPHRAGM TPC-630978
...
23A
COVER TPC-32185
...
24
SCREW TPC-650545
...
25
CHECK VALVE TPC-631201
...
26C
FUEL FITTING TPC-631808
...
33
SPRING TPC-630735
...
39
REPAIR KIT TPC-631893A
...
...
...
