Simplicity by MTD 317E262-094 (1997) Snow Thrower

Model: 317E262-094 (1997)

Save
 Part Not Listed?Part Not Listed?
product name

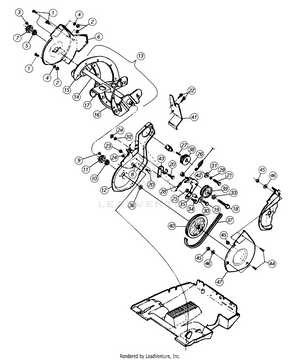

Auger And Drive Group

...
...
1
Truss Machine Screw MTD-710-0473
...
2
Hex Nut MTD-712-0121
...
3
Rivet MTD-928-0145
...
4
Flat Washer MTD-736-0400
...
5
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
6
Frame, RH MTD-784-0355
...
7
Retainer Bearing MTD-784-0357
...
8
Hex Screw: 1/4 - 20 x .625 Gr 2 MTD-710-0258
...
9
Rivet MTD-928-0145
...
10
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
11
Retainer Bearing MTD-784-0357
...
12
Frame, LH MTD-784-0359
...
13
AUGER ASSEMBLY, COMPLETE MTD-684-0087
...
14
AUGER ASSEMBLY MTD-684-0085
...
15
Rivet, Truss MTD-928-0197
...
16
Auger Blade MTD-731-1717
...
17
Auger Paddle MTD-731-1716
...
18
Hex Screw: 3/8 - 16 x 1.50 Gr 5 MTD-710-0520
...
19
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
20
Hex Screw: 1/4 - 20 x .75 Gr 5 MTD-710-3015
...
21
Hex Screw: 5/16 - 24 x .88 Gr 2 MTD-710-1245
...
22
Hex Screw MTD-710-1335
...
23
Sems Nut: 5/16 - 18 MTD-712-0265
...
24
Sems Nut: 1/4 - 20 MTD-712-0271
...
25
Lock Nut: 1/4 - 20 MTD-712-0291
...
26
Flange Lock Nut 3/8-16 MTD-912-0431
...
27
KEY, SPINDLE MTD-914-0105
...
28
Extension Spring MTD-732-0691
...
29
Lock Wash. 5/16" I.D. MTD-936-0119
...
30
Flat Washer: .344 ID X 1.12 OD MTD-936-0123
...
31
Flat Washer: .385 ID x .87 OD x .092 MTD-736-0262
...
32
Flat Washer: .25 ID x .62 OD MTD-736-0463
...
33
Flat Washer: .406 ID x .81 OD x .051 MTD-736-3050
...
34
Shoulder Screw MTD-738-0961
...
35
Spacer, Brake Belt MTD-750-1045
...
36
Spacer, Auger Pulley MTD-750-1046
...
37
Belt, Auger Drive MTD-954-0452
...
38
Engine Pulley MTD-756-0652
...
39
Idler Pulley MTD-756-0653
...
40
Auger Pulley MTD-756-0654
...
41
Shield, Bolt MTD-784-0356
...
42
Idler Arm MTD-784-0358
...
43
Bracket, Belt MTD-784-0362
...
44
Machine Screw #10 - 24 x .62 MTD-710-0425
...
45
Hex Nut MTD-712-0121
...
46
Flat Washer: .218 ID x .62 OD x .063 MTD-736-0400
...
47
Belt Guard MTD-784-0360-0637

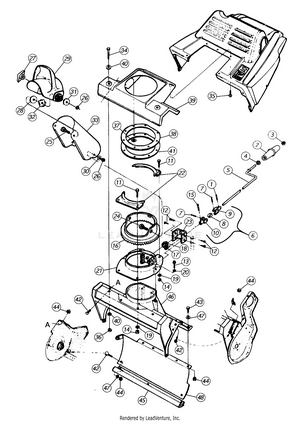

Auger Housing And Chute Group

...
...
1
Rolled Pin, 1/8 x .63 MTD-915-0138
...
2
Chute Rotating Knob MTD-720-0201A
...
3
Push Cap MTD-726-0100
...
4
Fl-Wash. MTD-936-0117
...
5
Rod, Chute Crank MTD-747-0624-0637
...
6
U-Joint Assembly MTD-631-0045
...
7
Pin, Roll: 5/32 x .88 MTD-715-0164
...
8
Connector, U-Joint MTD-731-1729
...
9
Clevis, Rear U-Joint MTD-731-1730
...
10
Clevis, Front U-Joint MTD-731-1731
...
11
Hex Screw: 1/4-20 x .75 Gr 5 MTD-710-3015
...
12
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
13
Hex Screw MTD-710-1328
...
14
Sems Nut: 1/4-20 MTD-712-0271
...
15
Cotter Pin: 1/8 dia x 1.25 MTD-714-0470
...
16
Chute Base: Black MTD-731-1724
...
17
Gear, Drive MTD-731-1725
...
18
Gear, Idler MTD-731-1726
...
19
Flat Washer MTD-736-0173
...
20
Flat Washer MTD-736-0400
...
21
Plate, Chute Base MTD-784-0353
...
22
Retainer, Chute Base MTD-784-0366
...
23
Mounting Bracket MTD-784-0367
...
24
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
25
Carriage Screw: 5/16-18 X 1.0 MTD-710-0276
...
26
Hex Lock Nut: 5/16-18 MTD-712-0429
...
27
Knob Assembly MTD-720-0284
...
28
Rubber Washer: .50 X 1.50 X .08 MTD-731-1733
...
29
Chute Deflector (Black) MTD-731-1720
...
xx
Chute Deflector (Green) MTD-731-1756
...
30
FLAT WASHER MTD-736-0275
...
31
Flat Washer MTD-736-0430
...
32
Washer, Octagon MTD-784-0363
...
33
Lower Chute MTD-784-0364
...
34
Hex Screw: 1/4-20 X .75 Gr 5 MTD-710-3015
...
35
Special Screw, #10-16 x .625 MTD-710-04669
...
36
Sems Nut: 1/4-20 MTD-712-0271
...
37
NUT PUSH ON MTD-726-0343
...
38
Chute Gasket MTD-731-1723
...
39
Chute Base Cover (Gray) MTD-731-1759
...
xx
Chute Base Cover (Black) MTD-731-1721
...
40
Flat Washer MTD-736-0173
...
41
Retainer, Gasket MTD-784-0365
...
42
Carriage Bolt: 1/4-20 X .75 MTD-710-0703
...
43
Hex Screw: 1/4-20 x .75 Gr 5 MTD-710-3015
...
44
Sems Nut: 1/4-20 MTD-712-0271
...
45
Shave Plate MTD-731-1728
...
46
Auger Housing (Gray) MTD-731-1762
...
xx
Auger Housing (Black) MTD-731-1727
...
xx
Auger Housing (Green) MTD-731-1764
...
47
Flat Washer MTD-736-0463
...
48
Lower Auger Housing MTD-784-0354

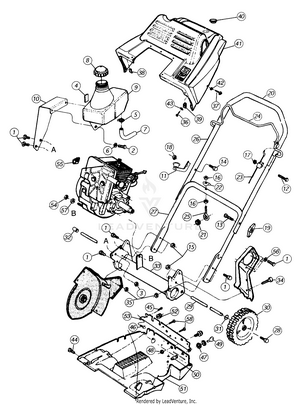

Frame And Handle Group

...
...
1
Hex Screw: 5/16 - 18 x .75 Gr 2 MTD-710-0118
...
2
Hex Screw: 1/4 - 14 x .625 MTD-710-0896
...
3
Sems Nut MTD-712-0265
...
4
Foam Strip MTD-722-0157
...
5
Hose Clamp 1/2" OD MTD-726-0205
...
6
Flat Washer MTD-736-0173
...
7
FUEL HOSE LOW PERMEATION MTD-751-10349-13
...
8
FUEL CAP (MAX 10% ETHANOL) MTD-751-0603A
...
9
Fuel Tank MTD-751-0635
...
10
Support Bracket MTD-784-0368
...
11
BRACKET MTD-684-0089
...
12
Hex Screw: 1/4 - 20 x 2.0 Gr 5 MTD-710-0501
...
13
Carriage Bolt: 5/16 - 18 x 2.0 Lg. Carved MTD-710-1174
...
14
Oval C-Sunk Screw MTD-710-1270
...
15
Sems Nut MTD-712-0265
...
16
HEX NUT 5/16-18 MTD-712-3010
...
17
Sems Nut 1/4 - 20 MTD-712-0271
...
18
Top Lock Nut 1/4 - 20 MTD-712-0324
...
19
Knob Assembly MTD-720-0284
...
20
Foam Grip, Handle MTD-720-0296
...
21
Grommet: .44 ID x .94 OD x .50 MTD-735-0234
...
22
Side Lock Washer MTD-736-0451
...
23
Drive Cable, Auger MTD-746-0934
...
24
Auger Bail, Drive Dipped MTD-747-0942
...
25
Eye Bolt 5/16 - 18 MTD-747-0943
...
26
Upper Handle MTD-749-0994
...
27
Lower Handle MTD-749-0995
...
28
Tap Screw: 3/8 - 16 x .5 MTD-710-0773
...
29
Axle, Tube MTD-711-1123
...
30
Wheel Assembly (Gray) MTD-734-1797
...
xx
WHEEL-7X1.50 MTD-734-04062A
...
31
Flat washer: .510 ID x .75 OD x .03 MTD-736-0108
...
32
Spacer, .51 x .75 x .44 MTD-950-1069
...
33
TUBE FRAME MTD-684-0086
...
34
Hex Cap Screw: 5/16 - 18 x 1.00 MTD-710-1088
...
35
Sems Nut MTD-712-0265
...
36
Hex Screw MTD-710-1329
...
37
Ab Screw MTD-710-1339
...
38
CLIP U TYPE SPEED MTD-726-0342
...
39
TINNERMAN CLIP "U" MTD-726-0344
...
40
Snap-In Plug MTD-731-0732
...
41
Upper Engine Cover (Gray) MTD-731-1748
...
xx
Upper Engine Cover (Orange) MTD-731-1754
...
xx
Upper Engine Cover (Yellow) MTD-731-1750
...
42
Flat Washer MTD-736-0173
...
43
Flat Washer MTD-736-0400
...
44
Hex Screw: 1/4 - 20 x .625 MTD-710-0258
...
45
Tap Screw: 10 - 24 x .75 MTD-710-1334
...
46
Tap Screw: 10 - 25 x .75 MTD-710-1335
...
47
Jam Nut: 5/8 - 32 x .12 MTD-712-0252
...
48
Sems Nut 1/4 - 20 MTD-712-0271
...
49
Key MTD-925-0201
...
50
Key Switch MTD-725-3232
...
51
Lower Engine Cover (Gray) MTD-731-1747
...
xx
Lower Engine Cover (Orange) MTD-731-1753
...
xx
Lower Engine Cover (Yellow) MTD-731-1749
...
52
Grommet: .280 x .750 x .40 MTD-750-1049
...
53
Control Panel MTD-784-0361
...
54
Sems Nut 5/16 - 18 MTD-712-0265
...
55
Mounting Clamp MTD-726-0152
...
56
Lock Wash. 5/16" I.D. MTD-936-0119
...
57
FLAT WASHER MTD-736-0275
...
58
Special Screw, #10-16 x .625 (Electric Start Models Only) MTD-710-04669
...
?59
Cord Assembly (Electric Start Models Only MTD-629-0236
...
...
...
