Silver Series 12A-264A009 (2000) Self-Propelled Mower

Model: 12A-264A009 (2000)

Save
Part Not Listed?Part Not Listed?
product name

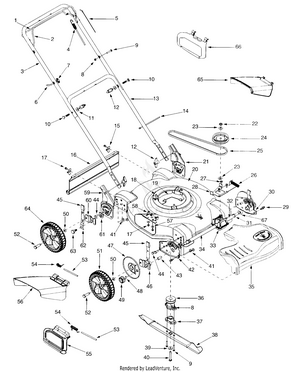

General Assembly

...
...
1
Drive Control Handle MTD-747-1214

...
2
Blade Control MTD-747-1161A-0637

...
3
Upper Handle MTD-749-1092A

...
4
Drive Control Cable 55.50" MTD-946-1092A

...
5
Control Cable MTD-946-1113A

...
5
Control Cable MTD-946-1114

...
6
Eye Bolt MTD-710-1205

...
7
Wing Nut 1/4-20 MTD-720-0279

...
8
Hex Lock Nut 1/4-20 MTD-712-0324

...
9
Hex Cap Screw 1/4-20x 1.5 MTD-710-0606

...
10
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174

...
11
Shoulder Washer .320 ID x .93 OD MTD-736-0451

...
12
Star Knob MTD-720-04072A

...
13
Lower Handle MTD-749-04037

...
14
Cable Tie MTD-725-0157

...
15
Hinge Clip MTD-782-9065

...
16
Trailshield MTD-731-04019

...
17
Hex Screw 1/4-14 x .625 MTD-710-0896

...
18
Hex Washer Screw 3/8-16 x 1.875 MTD-710-1008

...
19

...
20
22" Deck Assembly MTD-687-02046

...
21
Handle Bracket Assembly, LH MTD-682-3065-0637

...
22
Hex Jam Nut 7/16-20 MTD-912-0240

...
23
Bell Washer .45 ID x 1.00 OD MTD-736-0407

...
24

...
25
V-BELT 3L x 38.3" MTD-954-0483

...
26
Compression Spring MTD-732-0992

...
27
Hex Washer Screw 1/4-20 x.750 MTD-710-1276

...
28
Transmission Belt Keeper Bracket MTD-782-9062

...
29

...
30
Forward Height Adj. Plate - LH MTD-782-0585A-0637

...
31
Retainer Ring MTD-716-0198

...
32
Sleeve Spacer, .550 ID x 2.5 MTD-750-1209

...
33
Transmission Assy. Comp. MTD-918-0607A

...
34
Sleeve Spacer .550 ID x 8.9 MTD-750-1210

...
35
Transmission Cover MTD-731-0073

...
36
Drive Pulley MTD-756-1163

...
37
Blade Adapter MTD-748-0426

...
38

...

...
39
Bell Washer .396 ID x 1.140 OD MTD-736-0452

...
40
Hex Cap Screw 3/8-24 x 2.5 MTD-710-1257

...
41
Lock Nut 3/8-16 MTD-712-3005

...
42
Forward Hght. Adj. Plate - RH MTD-782-0584-0637

...
43
Sleeve Bearing MTD-741-0710

...
44
Hex Cap Screw 3/8-16 x .75 MTD-710-0216

...
45
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1

...
46
Spring Lever Assembly Not shown MTD-682-0586

...
46
Spring Lever Assembly Shown MTD-682-0587

...
47
Wheel Dust Cover MTD-731-2249

...
48
Dowel Pin MTD-915-0221

...
49
Spur Gear 14T - LH MTD-717-1533

...
49
Spur Gear 14T - RH MTD-717-1534

...
50
Bell Washer .401 ID x .870 OD MTD-736-0105

...

...
52
Shoulder Screw 3/8-16 MTD-738-0102

...
53
Hinge Pin MTD-747-0710A

...
54
Torsion Spring MTD-932-0593

...
54
Torsion Spring - Mulching Baffle MTD-732-0981

...
55
Mulching Baffle (If Equipped) (If Equipped) MTD-631-0098

...
56
Chute Deflector Ass'y. MTD-931-1034B

...
57
SPRING WASHER BELL MTD-736-0270

...
58
Chute Deflector Ass'y. MTD-931-1034B

...
59
Handle Bracket Assembly, RH MTD-682-3064-0637

...
60
Pivot Arm Assembly MTD-682-0143

...
61
Height Adjustment Bearing MTD-741-1102

...
62
Spring Lever MTD-732-0969

...
63
Shoulder Screw 3/8 - 16 x.442 MTD-738-1127B

...
64
Wheel 8 x 1.8 MTD-734-1987

...
65
Snap Discharge Chute (If Equipped) MTD-731-2230

...
66
Mulching Baffle (If Equipped) MTD-731-1386D

...
67
Bearing Spacer MTD-748-0390

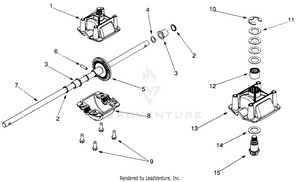

Transmission Assembly

...
...
1
Upper Housing Assembly MTD-618-0392

...
2
Oil Seal MTD-921-0329

...
3

...
4
Flat Washer .504 ID x .70 OD MTD-936-0520

...
xx
Flat Washer .504 ID x .700 OD x .035 MTD-736-0711

...
xx
Flat Washer .504 ID x .700 OD x .040 MTD-736-0712

...
xx
Flat Washer .504 ID x .700 OD x .045 MTD-736-0713

...
5
Bevel Gear 44T MTD-717-1596

...
6
Roll Pin MTD-715-0139

...
7
Output Shaft MTD-711-1388

...
8
Lower Housing MTD-719-0538

...
9
Hex Washer Screw 1/4-20 x .75 MTD-710-1276

...
10
E-Ring .750 MTD-716-0231

...
11
FLAT WASHER MTD-936-0336

...
xx
Flat Washer .625 ID x 1.0 OD MTD-736-0337

...
xx
FLAT WASHER MTD-936-0349

...
xx
Flat Washer .632 ID x 1.0 OD x .035 MTD-736-0494

...
xx
THRUST WASHER MTD-736-0495

...
12
Needle Bearing .625 x .813 MTD-741-0735

...
13
Upper Housing MTD-719-0537

...
14
FLAT WASHER MTD-936-0336

...
xx
Flat Washer .632 ID x 1.0 OD x .035 MTD-736-0494

...
15
Input Shaft MTD-711-1390
...
...
...
