Robomow by MTD 22ASDDAE037 RS622 (2018) Robotic Mower

Model: 22ASDDAE037 RS622 (2018)

Save
 Part Not Listed?Part Not Listed?
product name

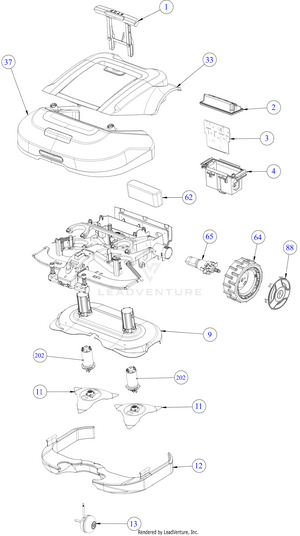

General Assembly

...
...
1
CARRYING AND STOP HANDLE MTD-FR-MSB6310B
...
2
LCD PANEL ASSEMBLY MTD-FRPMSB6340B
...
4
C-BOX ASSEMBLY MTD-FR-MSB6320A
...
5
HD DRIVE MOTOR ASMALUMINUM SPLINE MTD-FR-SMSB6206B
...
8
WHEEL LOCK MTD-FR-INJ6160A
...
9
MOWING DECK ASSEMB MTD-FR-MSB6003B
...
11
HIGH CUT BLADE SET KIT MTD-FR-MRK6108A
...
xx
2 BLADE KIT-RS MOD MTD-FR-MRK6101A
...
12
FLOATER ASSEMBLY MTD-FR-MSB6004C
...
13
FRONT WHEEL ASSEMBLY (2014) MTD-FR-MSB6007D
...
14
WIRE LOCKER MTD-FR-INJ6580A
...
15
MOWING UPPER ARM MTD-FR-INJ6071A
...
16
MOWING MOTOS LOCKE MTD-FR-INJ6040A
...
17
MOWING LOWER ARM MTD-FR-INJ6072A
...
18
BALL JOINT ASSEMBL MTD-FR-MSB6002B
...
19
SHAFT-PARRAL ASSEM MTD-FR-GEN6020B
...
20
FLOATER SPRING MTD-FR-GEN6018A
...
21
WING LEFT MTD-FR-INJ6082B
...
22
WING TO FLOATER SHAFT MTD-FR-GEN6009B
...
23
WIRE SENSOR CAP MTD-FR-INJ6200B
...
24
Y SHAFT TO WING MTD-FR-GEN6008A
...
25
MOWING DECK SPRING MTD-FR-GEN6017A
...
27
WING RIGHT MTD-FR-INJ6081B
...
29
FRONT WHEEL MAGNET MTD-FR-MSB6173A
...
31
CHASSIS ASSEMBLY S MODELS MTD-FR-SPP6104A
...
32
Y ARM SNAP MTD-FR-INJ6480A
...
33
COVER ASSEMBLY (GREEN) MTD-FR-MSB6008B
...
34
RS DOOR SHUTTER KIT MTD-FR-SPP6009A
...
36
C-BOX RUBBER DOOR MTD-FR-INJ6550A
...
37
BUMPER ASSEMBLY BLACK MTD-FR-MSB6001A
...
38
LIGHT COVER-BUMPER MTD-FR-INJ6260A
...
39
BUMPER HANG CAVITY MTD-FR-INJ6274A
...
40
BUZZER BRACKET MTD-FR-INJ6371A
...
41
PIEZO BUZZER W/CAB MTD-FR-BUZ6000G
...
42
BASE STATION W/O H MTD-FR-MSB6391A
...
43
FASTENING STAKES-B MTD-FR-GEN0223B
...
47
20M CABLE-PBOX TO STATION MTD-FR-WSB6015D
...
49
WIRE SENSORS CABLE W/HOLDERS MTD-FR-WSB6002C
...
50
FUSE-BATTERY CABLE MTD-FR-SPP6105A
...
51
MAIN BOARD TO DRIVE MOTOR CABLE MTD-FR-WSB6004D
...
52
MAIN BOARD TO BATTERY CELLS CABLE MTD-FR-WSB6012D
...
55
FUSE THREAD MTD-FR-SPP6107A
...
56
FUSE-32V/20A FAST MTD-FR-FUS6000A
...
57
FRONT WHEEL SLEEVE MTD-FR-INJ6750D
...
62
BATTERY (RS612/RS622) (4.6AH) MTD-FR-P-MRK6105A
...
64
POWER WHEELS (W/CAP) MTD-FR-MRK6107A
...
65
HD DRIVE MOTOR ASMALUMINUM SPLINE MTD-FR-SMSB6206B
...
66
RS MAIN RED (2018) MTD-FR-SPP6208A
...
67
FRONT BOARD S (2018 RED) MTD-FR-ESB6203C1
...
70
RS CHARGE ADAPTER (2018) MTD-FR-SPP6130A
...
71
MAIN BOARD TO FRT WHEEL CABLE (18) MTD-FR-WSB6001H
...
72
RS COMM/GSM SPLIT CABLE PCG6200 MTD-FR-WSB6023A
...
73
GSM W/GPS US (CATM1) MTD-FR-ESB7020B2
...
88
RS PREMIUM TAS MTD-FR-INJ6991A
...
202
MOWING MOTOR BRUSH MTD-FR-SPP6111A
...
203
POWER BOX HANGING BRACKET MTD-FR-GEN6034B
...
204
SCREW + "DIBEL" X 2 KIT MTD-FR-SCR6000A
...
207
MINI JUMPER 2.54MM MTD-FR-CON0144G
...
208
STAKE-PERIMETER SW MTD-FR-GEN0175A
...
210
PERIMETER SWITCH (ESB5009F) MTD-FR-UNT5007C
...
211
BATTERY PACK-PERIM MTD-FR-MRK5006A
...
212
PERIMETER SWITCH B MTD-FR-GEN0176A
...
213
PERIMETER SWITCH STICKER MTD-FR-STC5009B
...
xx
PLOT CONNECTOR (Not Shown) MTD-FR-CON0054A
...
xx
ROBORULER 40CM (Not Shown) MTD-FR-DOC6010D
...
xx
HANDLE ROD (Not Shown) MTD-FR-GEN6012A
...
xx
HANDLE SPRING (Not Shown) MTD-FR-GEN6015A
...
xx
SPRING-ADJUSTMENT (Not Shown) MTD-FR-GEN6019A
...
xx
STARLOCK 8060 5MM (Not Shown) MTD-FR-GEN6038A
...
xx
SWITCH RUBBER CUP (Not Shown) MTD-FR-GEN6041A
...
xx
BATTERY SHIELD (Not Shown) MTD-FR-GEN6053B
...
xx
METAL SHELF (Not Shown) MTD-FR-GEN6061A
...
xx
FLOATER SPRING (THICK) (Not Shown) MTD-FR-GEN6063A
...
xx
MOWING FLANGE (Not Shown) MTD-FR-INJ6020A
...
xx
WING RIGHT WITH FLOATER LIMITER (Not Shown) MTD-FR-INJ6081C
...
xx
WING LEFT WITH FLOATER LIMITER (Not Shown) MTD-FR-INJ6082C
...
xx
ADJUSTMENT KNOB (Not Shown) MTD-FR-INJ6131A
...
xx
ADJUSTMENT KNOB-LO (Not Shown) MTD-FR-INJ6132A
...
xx
ADJUSTMENT KNOB (Not Shown) MTD-FR-INJ6140A
...
xx
ALUMINUM RS DRIVE SPLINE (Not Shown) MTD-FR-GEN6069A
...
xx
SHELTER LEG RIGHT (Not Shown) MTD-FR-INJ6181A
...
xx
SHELTER LEG LEFT (Not Shown) MTD-FR-INJ6182A
...
xx
MAINBOARD HOUSING (Not Shown) MTD-FR-INJ6372A
...
xx
SHELTER SHAFT (Not Shown) MTD-FR-INJ6383A
...
xx
IRDA MOUNT (Not Shown) MTD-FR-INJ6510A
...
xx
WIRE SENSOR HOLDER (Not Shown) MTD-FR-INJ6520A
...
xx
FUSE HOUSE HOLDER (Not Shown) MTD-FR-INJ6570A
...
xx
IR HORN (Not Shown) MTD-FR-INJ6640C
...
xx
KNOB COVER-ADJUSTM (Not Shown) MTD-FR-INJ6710A
...
xx
SHELTER LEG INCLINE (Not Shown) MTD-FR-INJ6914A
...
xx
PEGS-PACK OF 50 (Not Shown) MTD-FR-MRK0012A
...
xx
PERIMETER WIRE (Not Shown) MTD-FR-MRK0040A
...
xx
BLUETOOTH REMOTE C (Not Shown) MTD-FR-MRK7100A
...
xx
SHORT PEGS (PKG OF 50) (Not Shown) MTD-FR-MRK7101A
...
xx
RS HEIGHT LIMITER ASSEMBLY (Not Shown) MTD-FR-MSB6030A
...
xx
SHELTER COVER ASSEMBLY (Not Shown) MTD-FR-MSB6500A
...
xx
RETAINING RING FOR 12MM SHF (Not Shown) MTD-FR-RNG0002A
...
xx
SNAP RING FOR 6MM (Not Shown) MTD-FR-RNG6010A
...
xx
WASHER M6X11X1.6 DIN 433 STEEL (Not Shown) MTD-FR-RNG6013A
...
xx
SCREW-KA40 x 20 WN (Not Shown) MTD-FR-SCR5009A
...
xx
TORX WN1451 K40 L1 (Not Shown) MTD-FR-SCR6005A
...
xx
EJOT WN 1452 K30 L (Not Shown) MTD-FR-SCR6008A
...
xx
EJOT WN 1452 K30 L (Not Shown) MTD-FR-SCR6009A
...
xx
EJOT WN 1452 K30 L (Not Shown) MTD-FR-SCR6010A
...
xx
TOREXS M5 10MM-COL (Not Shown) MTD-FR-SCR6012A
...
xx
RETROFIT RS RAIN SENSOR (100 PCS) (Not Shown) MTD-FR-SPP6010A
...
xx
8X14X1 DIN 988 WASHERS (50 PACK) (Not Shown) MTD-FR-SPP6011A
...
xx
ADAPTOR FOR LARGE PERIMETER S (Not Shown) MTD-FR-SPP6117A
...
xx
SIDE DANGER STICKER (Not Shown) MTD-FR-STC6001A
...
xx
REAR 7 WARNING STICKER (Not Shown) MTD-FR-STC6002A
...
xx
MOWING HEIGHT ADJUSTMENT STICKER (Not Shown) MTD-FR-STC6003B
...
xx
MOWING HEIGHT MEASURE STICKER (Not Shown) MTD-FR-STC6004B
...
xx
ON/OFF STICKER (Not Shown) MTD-FR-STC6010A
...
xx
ALARM STICKER (Not Shown) MTD-FR-STC6036W
...
xx
BLADE REMOVAL TOOL (Not Shown) MTD-FR-TOL0006B
...
xx
S DRIVE SPLINE REPLACE TOOL (Not Shown) MTD-FR-TOL6105A
...
xx
USB2RS232 UP TO WIN8 (Not Shown) MTD-FR-WSB0101C
...
...
...
