Riccar PRIMAP.TAD Canister Vacuum

Model: PRIMAP.TAD

Save
 Part Not Listed?Part Not Listed?
product name

Riccar PRIMAP.TAD

...
...
xx
Hepa And Granulated Charcoal Secondary Filter Set RF19G
...
1
Fbi Bezel B338-24SV
...
2
Lid Hinge E-Clip B338-8300
...
3
Matte Black Bag Door Lid (Primap.Tad, Primap.Tap, R50Ss, R50Fsn, R50Tap) B338-9600
...
4
Bag Lid Latch B338-10SV
...
5
Lid Hinge Cover B338-2914
...
6
Lid Hinge Pin B338-4600
...
7
Hinge Seal Grommet B338-3000
...
8
Fbi Assembly C338-0300
...
9
Main Inlet Seal B338-2600
...
10
Main Suction Inlet (Straight Suction Version) B338-1614
...
10
Main Suction Inlet (Powered Version) B338-9100
...
14
Variable Speed Slide B338-3200
...
15
Variable Slide Bushing B338-8100
...
16
Variable Speed Slide Cover B338-14SV
...
17
On/Off Foot Pedal B338-1314
...
19
Spring On/Off Foot Pedal B338-6600
...
22
Cord Strain Relief B338-1214
...
24
Lid Latch Flat Spring B338-2500
...
25
Hepa Filter Bulk B338-52B4
...
25
Hepa Filter Set (Includes Secondary Foam Filter) RF19

Riccar PRIMAP.TAD

...
...
1
Bag Compartment Filter Frame B338-23B4
...
2
Foam Secondary Filter Bulk B338-8000
...
2
Hepa And Foam Secondary Filter Set RF19
...
2
Hepa And Granulated Charcoal Secondary Filter Set RF19G
...
3
Hepa Bag Bulk B338-53B4.2
...
3
Hepa Bag (6 Pack) RCH-6
...
4
Bag Compartment Seal B338-1700
...
5
Hepa Filter Seal B338-4700
...
6
Main Pcb W/Variable Speed Control (Straight Suction) B338-3300
...
6
Main Pcb W/Variable Speed Control (Powered Version) B338-9000
...
7
Spring Bag Holder B338-6500
...
8
Bag Holder B338-50B4
...
9
Bag Compartment Insert/Motor Cover B338-0414
...
10
Cord Reel B338-0600
...
11
Wheel Assembly (Includes Bearing, Axle, E-Clip) C338-0200
...
12
Cord Reel Cooling Tube B338-4800
...
13
Back Docking B338-0914
...
14
Front Caster Assembly C338-0614
...
15
Handle Grip B338-0714
...
16
Bottom Housing B338-0114
...
17
Motor Compartment Seal B338-4400
...
18
Motor Compartment Sound Dampener B338-4500
...
20
Motor Compartment Wire Grommet B338-5100
...
21
On/Off Switch B338-3100

Riccar PRIMAP.TAD

...
...
1
Motor Assembly C338-0500
...
2
Motor Cocoon Back Vibration Rubber B338-4100
...
4
Motor Rear Cocoon B338-3700
...
9
Motor Front Cocoon B338-3600

Riccar PRIMAP.TAD

...
...
1
Straight Suction Hose Assembly C338-0700
...
1
Powered Hose Assembly D338-0600
...
2
Straight Suction Wand Assembly C338-1100
...
2
Powered Wand Assembly C338-1000
...
3
Replaceable Wand Tip B338-8800
...
4
Tool Adapter B226-1149
...
5
Tool Caddy B338-6900
...
6
2 In 1 Tool B338-7614
...
7
Crevice Tool B338-5414
...
8
Microfiber Bare Floor Tool B338-7800B
...
8
Floor Tool Microfiber Pad (Package Of 3) MFP-3
...
11
Snap On Base B226-1000
...
11
Rug/Floor Combo Tool Blue Mopping Pads (Package Of 3) BFP-3
...
11
Rug/Floor Combo Tool White Polishing Pads (Package Of 3) WFP-3

Riccar PRIMAP.TAD

...
...
1
Nozzle Cover (Rtapn.D) D220-2450
...
1
Nozzle Cover (Rtapn.P) D220-2470
...
2
Park B220-7814
...
3
Lens B018-0415
...
4
Furniture Guard B220-2614
...
5
Neck Button Cover B351-8214
...
6
Neck Button B351-8124
...
7
Spring B351-8300
...
8
Neck B220-7914
...
9
Neck Lock Ring B354-2800
...
10
Pigtail Cord B351-8400
...
11
Pigtail Plug Retainer B351-7914
...
12
E Clip (Rtapn.D) A732-3000
...
13
Motor Support Boss B223-2814C
...
15
Motor Housing B223-0114
...
16
Screw M5 X 6Mm Socket A733-5000
...
17
Pivot Bushing B220-4414
...
18
Felt Pivot Seal B220-4500
...
19
Scroll Housing Right B220-7714
...
20
Washer (Behind Fan) A733-3300
...
21
Motor Fan B220-4314
...
22
Washer A733-2200
...
23
Hex Nut A432-0605
...
24
Scroll Housing Left B220-4114
...
25
Pan Head Screw #8 X 5/8 A732-8314
...
26
Motor Inlet Seal B480-4514
...
27
Flat Belt Motor Assembly (Rtapn.D) D223-1914
...
27
V Belt Belt Motor Assembly (Rtapn.P) D223-2500
...
28
Screw M4X12 A732-2500
...
29
Strain Relief Washer B034-0100
...
30
Inlet Duct Cover B220-0214
...
31
2 Amp Circuit Breaker (Rtapn.D) A350-0500
...
32
Circuit Breaker Harness (Rtapn.D) B223-1700
...
33
Screw Hi Lo #8 X 7/16" A732-8414
...
34
Hall Sensor Assembly (Rtapn.P) D475-0310
...
35
Led Board (Rtapn.D) B317-1400K
...
35
Led Board (Rtapn.P) B317-1600K
...
36
Basetray Assembly D220-0114
...
37
Basetray Plug (Rtapn.D) B016-1914
...
38
Basetray B220-0114D
...
39
Rear Axle Clamp 54-136
...
40
Upright Stop Spring B220-0900
...
41
Pedal Assembly D220-0714
...
42
Upright Stop Pedal B220-0714
...
43
Upright Stop Pedal Pivet B220-0800
...
44
Rear Wheel With Axle D220-0631
...
45
Large Wheel Axle B010-2800C
...
46
Rear Wheel C220-0531C
...
47
Small Wheel Axle B010-2800C
...
48
Small Wheel C010-2714B
...
49
Flat Belt Single (Rtapn.D) B014-0814B
...
49
Lifetime Belt (Rtapn.P) B014-1200
...
50
Flat Belt Agitator Assembly (Rtapn.D) D012-2300
...
50
V Belt Agitator Assembly (Rtapn.P) D013-0400
...
51
Baseplate Assembly D220-0414
...
52
Front Wheel Assembly With Bushing B370-1843
...
53
Bottom Plate Axle B370-1700
...
54
Baseplate Cover Screw B220-0414
...
55
Squeegee B015-3000B
...
56
Baseplate B220-0314
...
57
Delux Tandem Air Power Nozzle (Flat Belt) RTAPN.D
...
57
Premiumtandem Air Nozzle (W/ Belt Protection) RTAPN.P

Riccar PRIMAP.TAD

...
...
xx
Pulley For Lifetime Belt (Rtapn.P) B013-1400
...
1
1/4-28 Locking Hex Nut A375-0100
...
2
Metal End Cap B013-1600
...
3
Agitator Screw 80Mm A733-1810
...
4
Retainer Ring B475-1900
...
5
Felt Seal B375-3900
...
6
Bearing A375-0200
...
7
Pulley For Flat Belt (Rtapn.D) B220-1200
...
8
White Brush Strip Short B013-0301
...
9

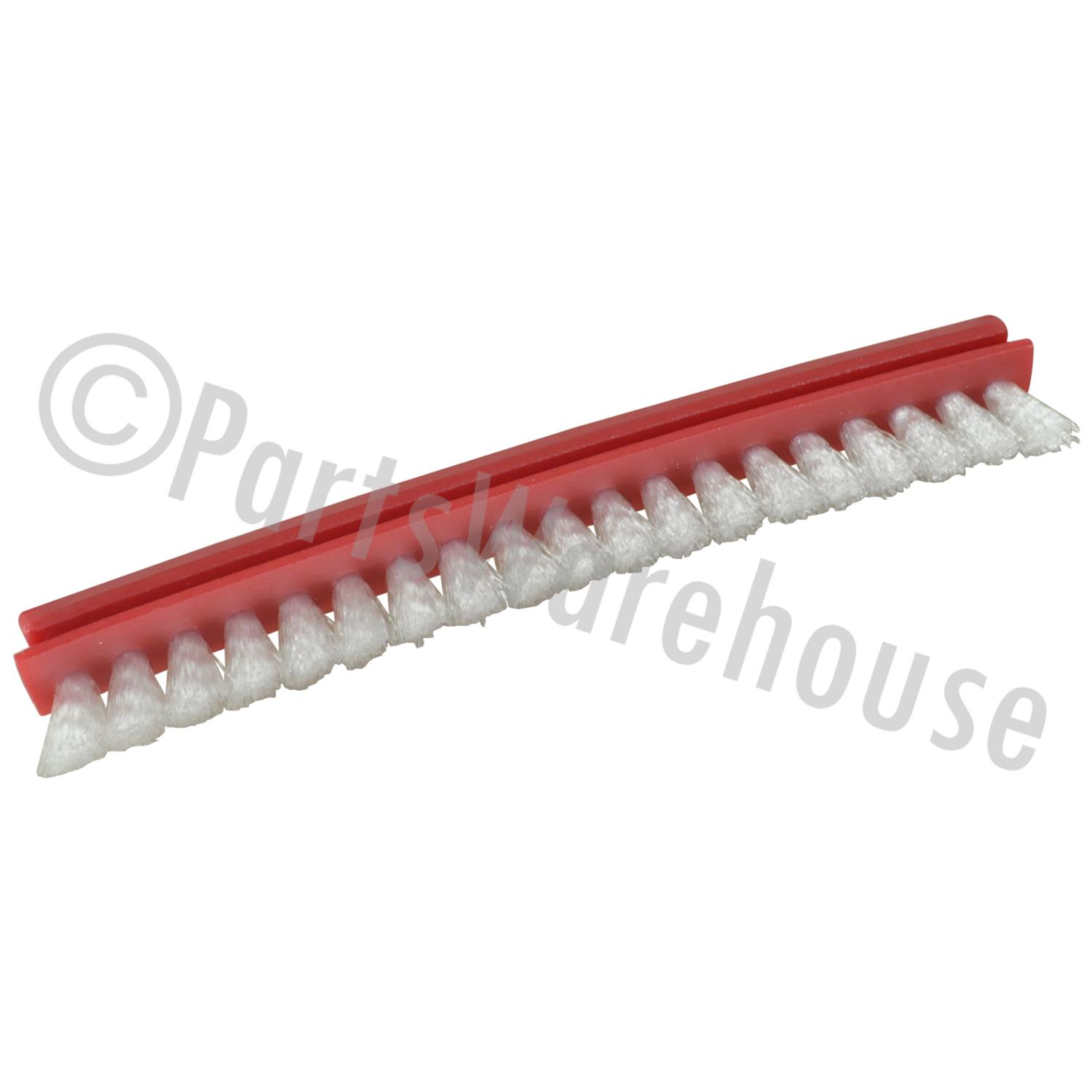

White Brush Strip Long B013-0401B
...
10
Edge Brush Bearing Holder With Bearing B013-1500
...
11
Flat Belt Agitator (Rtapn.D) D012-2300
...
11
Lifetime Belt Agitator (Rtapn.P) D013-0400
...
...
...
