Poulan/Turf King TK2145 Gas Trimmer

Model: TK2145 Gas Trimmer

Save
Part Not Listed?Part Not Listed?
product name

CARBURETORS WA-215, & WA-218 BREAKDOWN

...
...
1
DIAPHRAGM PLN-503896701

...
2
Gasket-Metering Diaphragm PLN-530035011

...

...
4
PUMP DIAPHRAGM PLN-504130807


...
6
Metering Lever PLN-505520127

...
7
Fuel Inlet Screen PLN-530035178

...

...
9
Metering Lever Spring PLN-530037330

...
10
Metering Lever Pin Screw PLN-530035016

...
11
Carburetor Repair Kit PLN-530069842

...
12
GASKET SET PLN-531004519

...
13
Circuit Plate Gasket PLN-530035211

...
14
Spring-Idle Needle-Type II PLN-530035342

...
15
Idle Needle-Type II PLN-530035341

...
16
Limiter Cap-Type II PLN-530035337

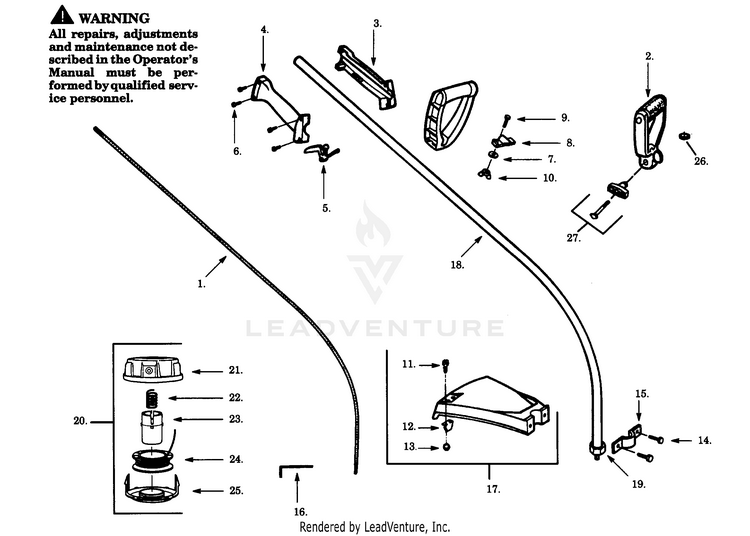

CUTTING HEAD & DRIVE SHAFT ASSEMBLIES

...
...
1
Drive Shaft PLN-530094671

...

...
3
Throttle Hsg. (Left) PLN-530036514

...
4
Throttle Hsg. (Right) PLN-530036515

...
5
Throttle Lever PLN-530036556


...




...

...
12
Line Limiter PLN-530094570


...

...
15
Bracket Shield PLN-530029373

...
16
Hex Wrench (5/32) PLN-530031159

...
17
Shield Kit Ass'y. PLN-530069299

...
18
Drive Shaft Hsg. PLN-530094874

...
19

...
20
TRIMMY HIT JR-5/16 PLN-695000394

...
21
Hub Ass'y. PLN-530094875

...
22

...
23
Release Button PLN-530094827

...
24
Spool w/Line PLN-952701619

...


...
27
HANDLE KIT PLN-530069347

...
xx
Carton Contents Bag PLN-530014612

...
xx
Operator Manual Not Shown. PLN-530081998

...
xx
Shaft Warning Decal Not Shown. PLN-530029159

...
xx
Carton (Not a serviceable part) Not Shown. PLN-530061595

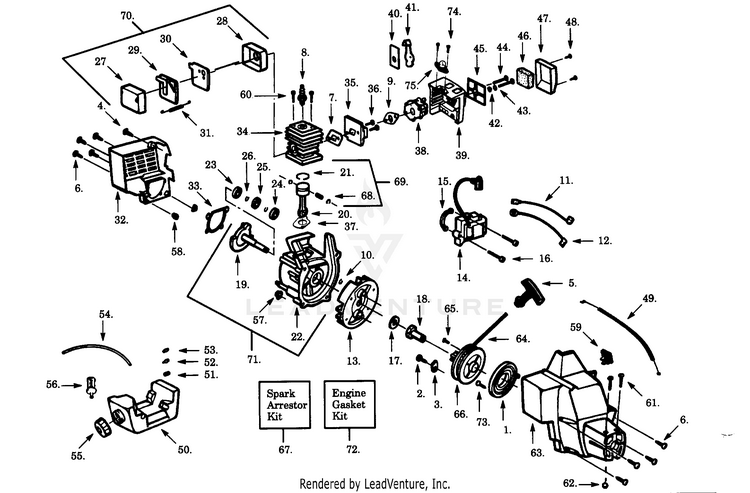

ENGINE BLOCK, & SHROUD

...
...
1
STARTER SPRING PLN-545008010


...
3


...
5
Starter Handle PLN-530027569


...
7
Gasket - Cylin./Carb. PLN-530019233

...
8
Spark Plug PLN-530030073

...
10

...
11
Lead Wire PLN-530014663

...
12
SWITCH, GROUND WIRE PLN-581425901

...
13
FLYWHEEL ASSY PLN-545221701

...
14
Ignition Module PLN-530039163

...
15

...

...
17

...
18
Drive Coupling PLN-530027953

...
19
TANK ASSEMBLY PLN-530052450

...
20
Assy-Connecting Rod PLN-530069615

...
21
Piston Ring PLN-530036404

...
22
Crankcase Ass'y. PLN-530014861

...
23
Inner Bearing PLN-530032125

...
24
Outer Bearing PLN-530032124

...
25
C'case Seal PLN-530019179

...
26
Retaining Ring PLN-530015945

...
27
Muffler Body PLN-530036578

...
28
Muffler Cover PLN-530036577

...
29
Muffler Baffle-Exit PLN-530036580

...
30
Muffler Baffle-First PLN-530036579

...
31
Muffler Spring PLN-530016197

...
33

...
34

...

...
37
Gasket-Cylinder PLN-530019223

...
38
CARBURETOR PLN-530035308

...
38
Type II (WA-218) PLN-530069569

...
39

...
39

...
40

...
40

...
41
Choke Shutter PLN-530037325

...
42
Wave Washer PLN-530015254

...
43
Choke Spacer PLN-530015852

...

...
45

...
45

...
46

...
46

...
47

...
47

...

...
49
Assy Throttle Cable PLN-530071548

...
50

...
50

...
51
Check Valve PLN-530026119

...
52

...
53

...
54
Fuel Line PLN-530069247

...
54
Return Line PLN-530069238

...
55
Assy-Fuel Cap PLN-530014347

...
56
Assy-Fuel Pickup PLN-530095646

...
57
C'case Isolator PLN-530036792

...
58
Shroud Isolator PLN-530036793

...
59
Kit-Switch PLN-530069572

...
59
Switch-Momentary PLN-530071356

...

...

...
62

...
64

...

...
66
STARTER PULLEY KIT PLN-530071786

...
67
Spark Arrestor Kit PLN-530069380

...
68
Piston Pin Retainer PLN-530015162

...
69
Kit-Piston PLN-530069621

...
70
Muffler Kit PLN-530069660

...
71
C'case & C'shaft Assy (Inc. 10,19, 22-26) PLN-530014729

...
72
Engine Gasket Kit (Inc.7,9,33,37) PLN-530069388

...

...
74
Bulb Ass'y. PLN-530038874

...
75
Screw-Type II PLN-530015780
...
...
...
