product name

Poulan TE450 Gas Trimmer

Model: TE450 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

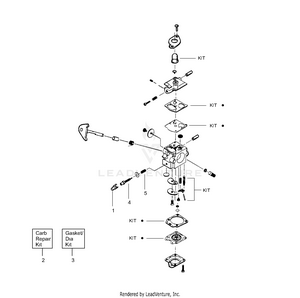

Carburetor Assembly P/N 530069754

...
...
1
Limiter Cap PLN-530038404
...
2
Carburetor Repair Kit (KIT = Indicates Contents) PLN-530069837
...
3
Gasket Diaphragm Kit (DOT = Indicates Contents) PLN-530069844
...
4
Needle--Idle PLN-530035341
...
5
Spring--Idle Needle PLN-530035342
...
xx
Carburetor Assembly PLN-530069754

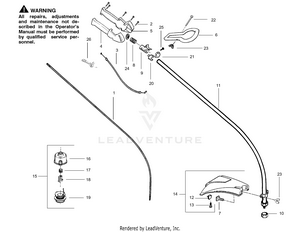

Driveshaft & Cutting Head

...
...
1
Drive Shaft PLN-530053613
...
2
Screw PLN-530016179
...
3
Assy-Throttle Cable (type 1) New part number for this IPL PLN-530071550
...
4
Throttle Hsg. (Right) PLN-530047923
...
5
Throttle Hsg. (Left) PLN-530047924
...
6
Assist Handle PLN-530047919
...
7
Bolt-Shield PLN-530015820
...
8
Spring-Compression PLN-530042084
...
9
Actuator PLN-530047925
...
10
Dust Cup PLN-530094543
...
11
Drive Shaft Hsg. Ass'y PLN-530053611
...
12
Line Limiter PLN-530052286
...
13
Screw-Line Limiter PLN-530015814
...
14
Shield Kit Ass'y. (Incl. 12 & 13) PLN-530069666
...
15
Cutting Head Ass'y. (Incl. 16-19) PLN-952701676
...
16
Hub Ass'y PLN-530095380
...
17
Spring-Return PLN-530401958
...
18
Retainer-Spool PLN-530401957
...
19
Spool w/Line PLN-952701678
...
20
Locator-right PLN-530047912
...
21
Locator-left PLN-530047911
...
22
Bolt-Handle PLN-530016173
...
23
Nut PLN-530091373
...
24
Washer PLN-530016193
...
25
SCREW PLN-530016386
...
26
Trigger New part number for this IPL PLN-530038682
...
xx
Operator's Manual Not Shown New part number for this IPL PLN-530088836
...
xx
Shaft Warning Decal Not Shown New part number for this IPL PLN-530055350
...
xx
Decal-Stop Not Shown New part number for this IPL PLN-530055162

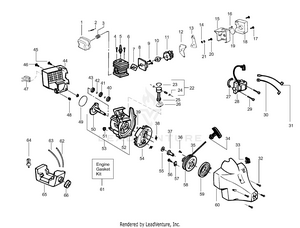

Gasket-Cylinder

...
...
1
Kit-Muffler New part number for this IPL PLN-530071390
...
2
Muffler Spring PLN-530016197
...
3
Kit-park Arrestor New part number for this IPL PLN-530071391
...
4
Screw-Cylinder PLN-530015953
...
5
Spark Plug PLN-503235112
...
6
Cylinder PLN-530012416
...
7
Gasket-Cylind./Carb. PLN-530019243
...
8
Carb. Adaptor Kit PLN-530069758
...
9
Screw PLN-530016014
...
10
Gasket-Carb. PLN-530019194
...
11
Carburetor Ass'y Kit (Incl. Limiter Cap) PLN-530069754
...
12
Choke Plate Mounting PLN-530047914
...
13
Choke Lever PLN-530047916
...
14
Washer PLN-530015254
...
15
Air Box PLN-530054450
...
16
Screw PLN-530015557
...
17
Screw PLN-530015957
...
18
Air Filter Cover PLN-530049095
...
19
Air Filter Foam PLN-530047932
...
20
Screw PLN-530015849
...
21
Spacer-Choke PLN-530015852
...
22
Piston Kit (Incl. 23, 24 & Pin) PLN-530069987
...
23
Piston Ring PLN-530053565
...
24
Piston Pin Retainer PLN-530015162
...
25
Connecting Rod Ass'y. PLN-530069615
...
26
Gasket-Cylinder PLN-530019223
...
27
Spacer-Module PLN-530036145
...
28
Ignition Module New part number for this IPL PLN-530055160
...
29
Screw PLN-530015954
...
30
Ground Wire Ass'y. PLN-530049389
...
31
Lead Wire Ass'y. PLN-530049390
...
32
SCREW PLN-530016386
...
33
Switch-Momentary PLN-530071356
...
34
Starter Handle PLN-530027569
...
35
Rope Kit PLN-530069232
...
36
Screw PLN-530016080
...
37
Drive Coupling PLN-530027953
...
38
Starter Dog Spring PLN-530023817
...
39
Retainer Ring-C'shaft PLN-530015941
...
40
Outer Bearing PLN-530032124
...
41
C'case Seal PLN-530019179
...
42
Retain. Ring-C'case PLN-530015945
...
43
Inner Bearing PLN-530032125
...
44
Rear Shroud PLN-530053320
...
45
Screw PLN-530015880
...
46
SCREW PLN-530016386
...
47
Guard-Muffler New part number for this IPL PLN-530054536
...
48
Isolator-Shroud PLN-530036793
...
50
Crankshaft Ass'y. PLN-530054083
...
51
Isolator-C'Case PLN-530036792
...
52
Assy-Crankcase (Incl 40-43) PLN-530071627
...
53
C'case & C'shaft Assy. (Incl. 39,50,52) PLN-530014729
...
54
FLYWHEEL ASSY PLN-545221701
...
55
Washer-Flat PLN-530015828
...
56
Screw PLN-530015957
...
57
Retainer-Can PLN-530016226
...
58
STARTER PULLEY KIT (Incl. 56) PLN-530071786
...
59
KIT STARTER SPRING PLN-545008011
...
60
Fan Housing Ass'y PLN-530054420
...
61
Engine Gasket Kit (Incl. 7,10,26,49) PLN-530071253
...
62
Fuel Line (Small) PLN-530069247
...
63
Fuel Line (Large) PLN-530069216
...
64
Fuel Pickup Ass'y. PLN-530095646
...
65
Fuel Tank Ass'y (Incl. lines,filter,cap) PLN-530049299
...
66
Fuel Cap Ass'y. PLN-530014347
...
...
...
