product name

Poulan/Snapper SNC31 Snapper Brushcutter Attachment

Model: SNC31 Brushcutter Attachment

Save
 Part Not Listed?Part Not Listed?
product name

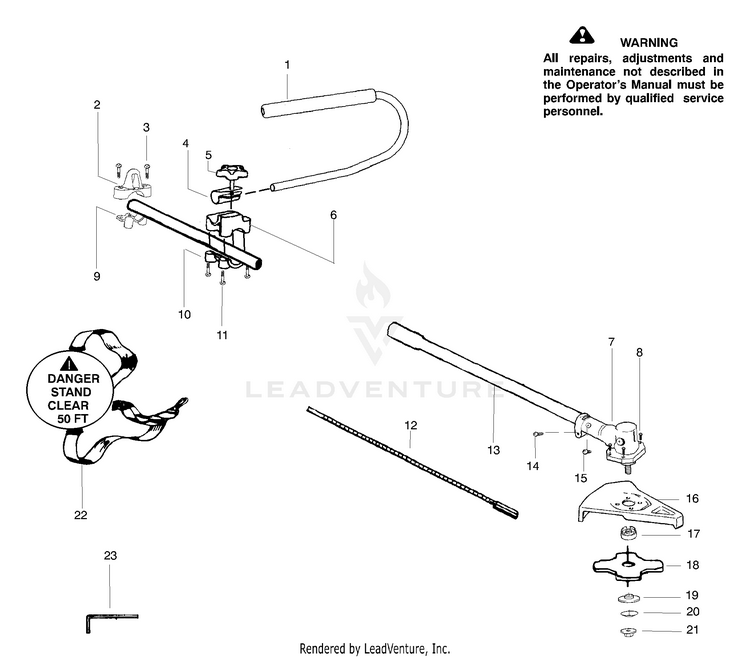

Brushcutter Attachment Assembly

...
...
1
Kit-Handlebar Assy. (Incl. grip,cap,decal) PLN-530071394
...
2
KIT HARNESS CLAMP PLN-530071605
...
3
Screw PLN-530015770
...
4
KIT TUBE CLAMP J-BAR UPGRADE PLN-530071868
...
5
KIT TUBE CLAMP J-BAR UPGRADE PLN-530071868
...
6
KIT TUBE CLAMP J-BAR UPGRADE PLN-530071868
...
7
Assy-Gearbox PLN-530071585
...
8
Screw PLN-530016312
...
9
KIT HARNESS CLAMP PLN-530071605
...
10
KIT TUBE CLAMP J-BAR UPGRADE (Incl. #11) PLN-530071868
...
11
Screw PLN-530015770
...
12
Flexshaft-Split boom PLN-530096183
...
13
Assy.-Driveshaft PLN-530096002
...
14
Screw PLN-530016014
...
15
Screw PLN-530016224
...
16
Kit-Blade Shield PLN-530071383
...
17
Dust cup - Blade PLN-530095815
...
18
Accy.-Weed Blade (8") PLN-952701611
...
19
Washer-Blade Retaining PLN-530095816
...
20
Washer-Belleville PLN-530016240
...
21
Nut-Flange PLN-530015793
...
22
Shoulder Strap PLN-530094417
...
23
Wrench-Hex (5/32") PLN-530031159
...
xx
Manual Not Shown PLN-530163879
...
xx
Hanger-Attachment Not Shown PLN-530150031
...
xx
Decal-Shaft Warning Not Shown PLN-530056129
...
xx
Decal-Blade Direction Not Shown PLN-530056335
...
...
...
