Poulan Pro XE850PAR Mower

Model: XE850PAR Mower

Save
 Part Not Listed?Part Not Listed?
product name

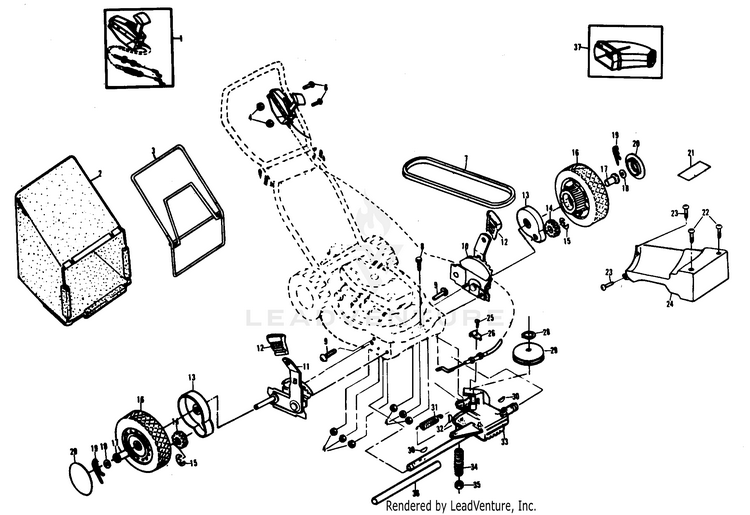

DRIVE ASSEMBLY

...
...
1
Dual Head Drive Control (Complete) PLN-532080341
...
2
Grass Bag Assembly PLN-532800563
...
3
Catcher Frame (AYP part number) PLN-532099614
...
4
NUT 1/4-20 NYLOC PLN-539976978
...
6
Machine Screw (AYP part number) PLN-532095692
...
7
V-Belt (AYP part number) PLN-532093691
...
8
Hex Head Bolt (AYP part number) PLN-532054338
...
9
Screw (AYP part number) PLN-874100412
...
10
Wheel Adjuster Assembly (Left) PLN-532800691
...
11
Wheel Adjuster Assembly (Right) PLN-532800689
...
12
SELECTOR KNOB PLN-532701037
...
13
Dust Cover (AYP part number) PLN-532086401
...
14
Pinion (AYP part number) PLN-532074507
...
15
E-Ring PLN-812000003
...
16
WHEEL/TIRE 8X1.75 PLN-583602401
...
17
Wheel Bushing (AYP part number) PLN-532086960
...
18
Flat Washer (AYP part number) PLN-532052160
...
19
Retainer Clip (AYP part number) PLN-532085179
...
20
Hubcap PLN-532800543
...
21
Drive Cover Deal (AYP part number) PLN-532800681
...
22
Pan Head Tapping Screw (AYP part number) PLN-532087866
...
23
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008
...
24
Drive Cover (AYP part number) PLN-532750293
...
25
Hex Washer Head Tapping Screw (AYP part number) PLN-532750108
...
26
Cable Clamp (AYP part number) PLN-532083700
...
28
Retaining Ring (AYP part number) PLN-532074976
...
29
PULLEY KIT PLN-532154753
...
30
Woodruff Key #3 (AYP part number) PLN-532065692
...
31
Spring PLN-532075192
...
32
Woodruff Key #213 (AYP part number) PLN-532057076
...
33
Gear Case Halves, Upper and Lower (AYP part number) PLN-532048281
...
34
Spring (AYP part number) PLN-532137090
...
35
PLN-873850400
...
36
Drive Shaft Cover (AYP part number) PLN-532086012

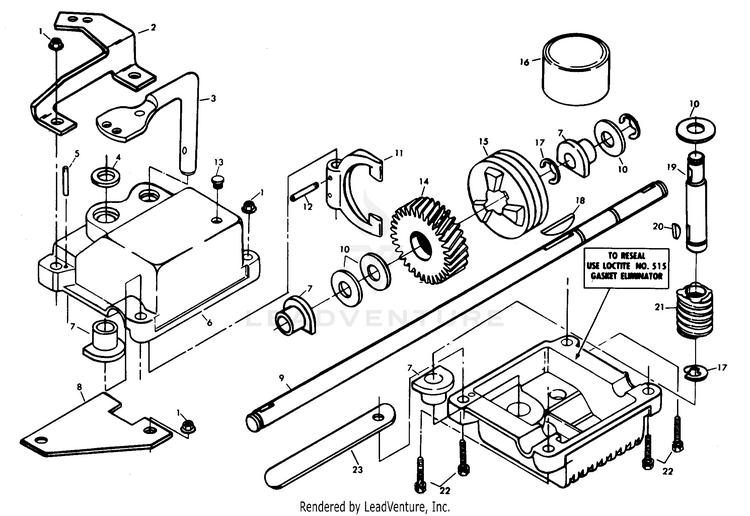

GEARCASE ASSEMBLY

...
...
1
NUT.CROWNLOCK.1/4 PLN-873680400
...
2
ADJUSTER BRACKET PLN-532085177
...
3
Shifter Assembly (AYP part number) PLN-532088386
...
4
Seal PLN-532057072
...
5
Grooved Pin (AYP part number) PLN-532057388
...
6
Gear Case Halves (AYP part number) (Inc. Upper & Lower Halves) (Incl. Ref. 4, 5, 7) PLN-532048032
...
7
Bearing (AYP part number) PLN-532077881
...
8
SPRING BRACKET PLN-532081585
...
9
Drive Shaft (AYP part number) PLN-532750430
...
10
Hardened Washer (AYP part number) PLN-532057079
...
11
Yoke Clutch (AYP part number) PLN-532075144
...
12
Grooved Pin (AYP part number) PLN-532087822
...
13
Plug (AYP part number) PLN-532086447
...
14
Helical Gear (AYP part number) PLN-532083659
...
15
Jaw Clutch (AYP part number) PLN-532750436
...
16
Grease (AYP part number) PLN-532750355
...
17
E-Ring PLN-812000003
...
18
Hi-Pro Key (AYP part number) PLN-532850848
...
19
Worm Shaft (AYP part number) PLN-532083720
...
20
Woodruff Key (AYP part number) PLN-532065692
...
21
PULLEY KIT PLN-532154753
...
22
Hex Head Mach. Screw (AYP part number) PLN-532050950
...
23
Identification Tag PLN-532751046

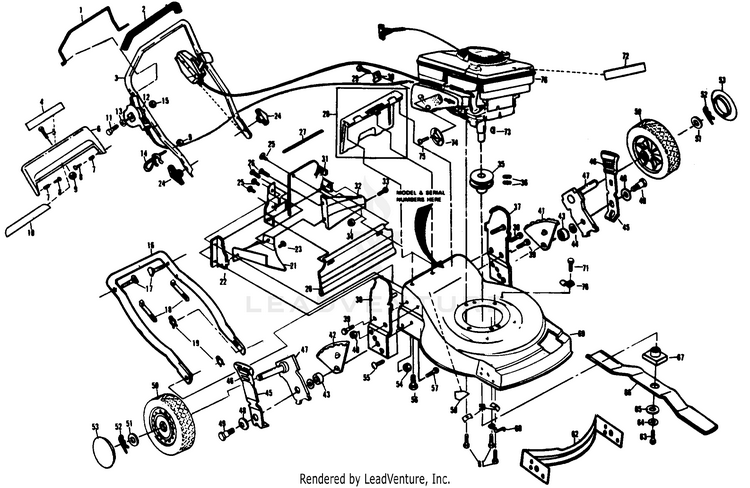

MOWER HOUSING, ENGINE B/S 124702

...
...
1
Control Bar (AYP part number) PLN-532800680
...
2
Handle Grip (AYP part number) PLN-532850724
...
3
Upper Handle PLN-532851029
...
4
Trim Plate Decal 5.0 HP PLN-532800787
...
5
Hex Head Bolt 1/4-20 x 1-1/2 (AYP part number) PLN-874760424
...
6
Trim Plate PLN-532800542
...
7
Nylon Bushing (AYP part number) PLN-532095529
...
8
Tapping Screw (AYP part number) PLN-532095825
...
9
NUT 1/4-20 NYLOC PLN-539976978
...
10
Trim Plate Decal (AYP part number) PLN-532800669
...
11
Machine Screw (AYP part number) PLN-532800785
...
12
Throttle Control (AYP part number) PLN-532851461
...
13
Flat Washer (AYP part number) PLN-532095723
...
14
GUIDE.ROPE.STD.BLK.ZIN PLN-532194788
...
15
PLN-873850400
...
16
Lower Handle (AYP part number) PLN-532800481
...
17
Handle Bolt PLN-532058714
...
18
WIRE TIE PLN-532007192
...
19
Hairpin Cotter (AYP part number) PLN-532051793
...
20
Rear Deflector (AYP part number) PLN-532140540
...
21
Discharge Baffle PLN-532801012
...
22
KIT.BAFFLE.SIDE.22RD.BLACK PLN-532155014
...
23
Hex Head Screw (AYP part number) PLN-532096344
...
24
KNOB.HANDLE.KIT.SERVICE PLN-532183724
...
25
Self Tapping Screw (AYP part number) PLN-532081283
...
26
Hex Tapping Screw (AYP part number) PLN-532054583
...
27
Hinge Rod (AYP part number) PLN-532750328
...
28
Rear Door Kit (AYP part number) PLN-532048137
...
29
Thread Rolling Screw (AYP part number) PLN-532107488
...
30
WASHER.ENGINE.BZP These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532125078
...
31
Back Plate PLN-532801004
...
32
BAFFLE.REAR.HSG.ASM.QT.22.BLAC PLN-532140661
...
33
Truss Head Screw (AYP part number) PLN-532041945
...
34
Locknut (AYP part number) PLN-532069180
...
35
Engine Pulley (AYP part number) PLN-532084596
...
36
Set Screws (AYP part number) PLN-532059708
...
37
Handle Bracket Assembly (Left) (AYP part number) PLN-532800489
...
38
Handle Bracket Assembly (Right) PLN-532800488
...
39
Thread Cutting Screw (AYP part number) PLN-532055187
...
40
NUT.71038.31-18.HEX.NYLOCK PLN-873800500
...
41
Wheel Adjusting Bracket (Left) PLN-532800663
...
42
Wheel Adjusting Bracket (Right) PLN-532800667
...
43
Spacer (AYP part number) PLN-532084920
...
44
Flat Washer (AYP part number) PLN-532088348
...
45
Selector Spring PLN-532850663
...
46
SELECTOR KNOB PLN-532701037
...
47
Axle Arm Assembly (AYP part number) PLN-532087887
...
48
Belleville Washer (AYP part number) PLN-532062335
...
49
Shoulder Bolt PLN-532064921
...
50
Wheel and Tire Assembly (AYP part number) PLN-532851071
...
51
Flat Wassher (AYP part number) PLN-532052160
...
52
Retainer Slip PLN-532065179
...
53
Hubcap (AYP part number) PLN-532800544
...
54
LOCKNUT PLN-873680600
...
55
Hinge Screw (AYP part number) PLN-532088652
...
56
Hex Tapping Screw (AYP part number) PLN-532054583
...
57
BOLT PLN-872140505
...
58
Danger Decal PLN-532065463
...
59
WASHER.ENGINE.BZP PLN-532125078
...
60
Belt Snubber (AYP part number) PLN-532851000
...
61
BOLT 3/8-16X1-1/8 PLN-532150406
...
62
Front Baffle (AYP part number) PLN-532132255
...
63
Hex Head Screw PLN-532851084
...
64
SLW 3/8 STD PLN-539990118
...
65
Hardened Washer (AYP part number) PLN-532851074
...
66
BLADE.22.MULCH.STANDARD PLN-532406713
...
67
ADAPTOR.BLADE.7/8 PLN-581547901
...
69
Lawn Mower Housing (Incl. Ref. #58) PLN-532801003
...
70
Clip Guide (AYP part number) PLN-532087930
...
71
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008
...
72
"Poulan" Decal (AYP part number) These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532800644
...
73
Hi-Pro Key #HP-505 These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532067677
...
74
Screw (AYP part number) These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532069485
...
75
Muffler Deflector PLN-532223389
...
76
Engine - Briggs/Stratton Model. No. 124702 Type No. 3118-01, Owners Manual (AYP part number) Not Shown. PLN-532800698
...
...
...
