product name

Poulan Pro XE750HWAR Mower

Model: XE750HWAR Mower

Save
 Part Not Listed?Part Not Listed?
product name

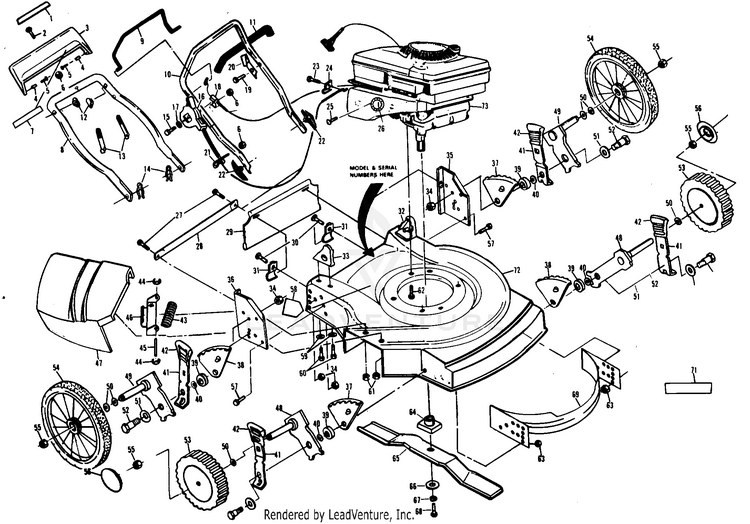

MOWER ASSEMBLY, ENGINE B/S 124702

...
...
1
Trim Plate Decal 5.0 HP PLN-532800787
...
2
Hex Head Bolt 1/4-20 x 1-1/2 (AYP part number) PLN-874760424
...
3
Trim Plate PLN-532800542
...
4
Nylon Bushing (AYP part number) PLN-532085529
...
5
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008
...
6
NUT 1/4-20 NYLOC PLN-539976978
...
7
Trim Plate Decal (AYP part number) PLN-532800669
...
8
Lower Handle (AYP part number) PLN-532800481
...
9
Control Bar (AYP part number) PLN-532850735
...
10
Upper Handle PLN-532800326
...
11
Handle Grip (AYP part number) PLN-532850724
...
12
Handle Bolt PLN-532058714
...
13
WIRE TIE PLN-532007192
...
14
Hairpin Cotter (AYP part number) PLN-532051793
...
15
Machine Screw 1/4-20 x 2-1/8 (AYP part number) PLN-874250434
...
16
Throttle Control (AYP part number) PLN-532851461
...
17
Flat Washer (AYP part number) PLN-532085723
...
18
Engine, Zone Control Cable (AYP part number) PLN-532851670
...
19
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008
...
20
BRACKET.UPSTOP PLN-532850733
...
21
GUIDE.ROPE.STD.BLK.ZIN PLN-532194788
...
22
Screw (AYP part number) PLN-532069485
...
23
Thread Rolling Screw (AYP part number) PLN-532107488
...
27
Hex Tapping Screw (AYP part number) PLN-532054583
...
28
Support Rod (AYP part number) PLN-532750157
...
29
Rear Deflector (AYP part number) PLN-532140540
...
30
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008
...
31
Rear Skirt Bracket (AYP part number) PLN-532087585
...
32
Handle Bracket Assembly (Left) PLN-532800702
...
33
Handle Bracket Assembly (Right) PLN-532800701
...
34
LOCKNUT PLN-873680600
...
35
Wheel Support Bracket (Left) PLN-532800662
...
36
Wheel Support Bracket (Right) PLN-532800666
...
37
Wheel Adjusting Bracket (L.R & R.F) PLN-532800663
...
38
Wheel Adjusting Bracket (R.R. & L.F.) PLN-532800667
...
39
Spacer (AYP part number) PLN-532084920
...
40
Flat Washer (AYP part number) PLN-532088348
...
41
Selector Spring PLN-532125066
...
42
SELECTOR KNOB PLN-532701037
...
43
Torsion Spring (AYP part number) PLN-532087589
...
44
E-Ring (AYP part number) PLN-812000014
...
45
Hinge Rod (AYP part number) PLN-532087590
...
46
Housing Bracket Assembly (AYP part number) PLN-532087593
...
47
Discharge Guard (AYP part number) PLN-532750149
...
48
Axle Arm Assembly (Front) (AYP part number) PLN-532800755
...
49
AXLE ARM PLN-532751333
...
50
KIT.O-RING/WASHER PLN-532428450
...
51
Belleville Washer (AYP part number) PLN-532062335
...
52
BOLT SHOULDER 3/8 -16X1 PLN-532174719
...
53
Wheel & Tire Assembly PLN-532800333
...
54
WHEEL.14X2.PR.SP.RAD.GY PLN-532752063
...
55
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409148
...
56
Hubcap PLN-532800543
...
57
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) PLN-874780612
...
58
Danger Decal (AYP part number) PLN-532085463
...
59
Flat Washer (AYP part number) PLN-532059289
...
60
Thread Cutting Screw (AYP part number) PLN-532055187
...
61
NUT.CROWNLOCK.1/4 PLN-873680400
...
62
BOLT 3/8-16X1-1/8 PLN-532150406
...
63
LOCKNUT PLN-873680600
...
64
ADAPTOR.BLADE.7/8 PLN-581547901
...
65
BLADE.22.MULCH.STANDARD PLN-532406713
...
66
Hardened Washer (AYP part number) PLN-532851074
...
67
SLW 3/8 STD PLN-539990118
...
68
Hex Head Screw PLN-532851084
...
69
Front Baffle (AYP part number) PLN-532132255
...
70
(Not Shown) PLN-532134027
...
71
"Poulan" Decal (AYP part number) PLN-532800644
...
72
Lawn Mower Housing (Incl. Ref. #58) PLN-532800997
...
73
Engine - Briggs/Stratton Model No. 124702 Type No. 3118-01, Owners Manual (AYP part number) Not Shown. PLN-532800722
...
...
...
