Poulan Pro XE735AR Mower

Model: XE735AR Mower

Save
 Part Not Listed?Part Not Listed?
product name

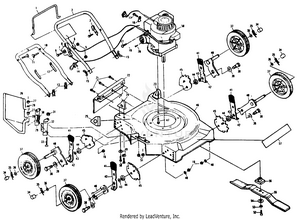

ASSEMBLY

...
...
1
Control Bar (AYP part number) PLN-532800633
...
2
Upper Handle (AYP part number) PLN-532850975
...
3
BRACKET.UPSTOP PLN-532850733
...
4
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008
...
5
NUT 1/4-20 NYLOC PLN-539976978
...
6
Engine Zone Control Cable PLN-532851669
...
7
Flat Washer (AYP part number) PLN-532085723
...
8
Throttle Control (AYP part number) PLN-532851461
...
9
Machine Screw 1/4-20 x 2-1/8 (AYP part number) PLN-874250434
...
10
Lower Handle (AYP part number) PLN-532800481
...
11
Handle Bolt PLN-532058714
...
12
WIRE TIE PLN-532007192
...
13
Hairpin Cotter (AYP part number) PLN-532051793
...
14
GUIDE.ROPE.STD.BLK.ZIN PLN-532194788
...
15
NUT WING PM PLN-532128638
...
16
LOCKNUT PLN-873680600
...
17
Thread Rolling Screw (AYP part number) PLN-532107488
...
18
Cable Clamp (Engine) These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532022372
...
19
Screw (AYP part number) These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532069485
...
20
Muffler Deflector These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532223290
...
21
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008
...
22
Rear Skirt (AYP part number) PLN-532008259
...
23
Handle Bracket Assembly (Left) PLN-532800702
...
24
Handle Bracket Assembly (Right) PLN-532800701
...
25
Danger Decal (AYP part number) PLN-532085463
...
26
Discharge Guard (AYP part number) PLN-532100945
...
27
NUT.CROWNLOCK.1/4 PLN-873680400
...
28
WASHER PLN-819091214
...
29
Discharge Bracket Assembly (AYP part number) PLN-532800767
...
30
Torsion Spring (AYP part number) PLN-532100958
...
31
Push On Speed Nut (AYP part number) PLN-532093731
...
32
Housing Bracket Assembly (AYP part number) PLN-532800769
...
33
Hinge Rod (AYP part number) PLN-532103673
...
34
Hubcap (AYP part number) PLN-532800090
...
35
Retainer Clip (AYP part number) PLN-532095179
...
36
Flat Washer (AYP part number) PLN-532052160
...
37
Wheel Assembly PLN-532800724
...
38
BOLT SHOULDER 3/8 -16X1 PLN-532174719
...
39
Belleville Washer (AYP part number) PLN-532062335
...
40
ARM.ASM.AXLE. PLN-532187930
...
41
Selector Knob (AYP part number) PLN-532097877
...
42
Selector Spring PLN-532850956
...
43
Flat Washer (AYP part number) PLN-532099348
...
44
Spacer (AYP part number) PLN-532094920
...
45
Wheel Adjusting Bracket (AYP part number) PLN-532139901
...
46
Lawn Mower Housing (AYP part number) (Incl. Ref. #25) PLN-532800849
...
47
BOLT 3/8-16X1-1/8 PLN-532150406
...
48
Washer (AYP part number) PLN-532062333
...
49
Flat Washer (AYP part number) PLN-532059289
...
50
Thread Cutting Screw (AYP part number) PLN-532055187
...
51
NUT.CROWNLOCK.1/4 PLN-873680400
...
52
Hex Head Screw PLN-532851084
...
53
SLW 3/8 STD PLN-539990118
...
54
Hardened Washer (AYP part number) PLN-532851074
...
55
20" Blade (AYP part number) PLN-532145106
...
56
ADAPTOR.BLADE.7/8 PLN-581547901
...
57
Decal "Poulan" (AYP part number) PLN-532800644
...
0
Owners Manual Not Shown. PLN-532800646
...
...
...
