Poulan Pro SM705 Gas Trimmer Type 1

Model: SM705 Gas Trimmer Type 1

Save
 Part Not Listed?Part Not Listed?
product name

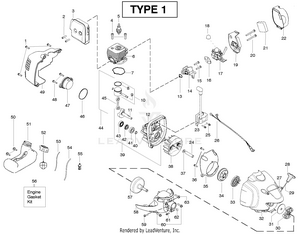

Engine Type 1

...
...
1
Screw PLN-530015880
...
2
Bolt-Muffler PLN-530058982
...
3
ASSY MUFFLER SHIELD (Incl. 2) PLN-545227901
...
4
Screw-Cylinder PLN-530015953
...
5
Spark Plug (RCJ 6Y) PLN-952030249
...
6
Cylinder PLN-530012541
...
7
Seal-Cylinder (kit) PLN-530071750
...
8
RING PISTON PLN-545154001
...
9
Retainer-Piston Pin PLN-530015162
...
10
Kit - Piston (Incl. 8, 9) PLN-530071833
...
11
ASSY CRANKSHAFT PLN-545145802
...
12
Assy-Crankcase (Incl. 41,42,43) PLN-530012582
...
13
Seal-Cyl/Carb.(kit) PLN-530071750
...
14
Adapter-Carb. PLN-530057547
...
15
Screw PLN-530016441
...
16
Gasket-Carb. (kit) PLN-530071750
...
17
Kit-Carb.(C1U-W19) (Note: Repair kits are not available for this carburetor) PLN-530071811
...
18
Bulb - Purge PLN-530058709
...
19
Air Box PLN-545077501
...
20
Screw PLN-530016429
...
21
Foam-Air Filter PLN-530036575
...
22
Cover-Air Box PLN-530057545
...
23
Ignition Module PLN-530035505
...
24
Spacer-Flywheel PLN-530059758
...
25
Screw PLN-530016357
...
26
Assy-Switch wire PLN-545015601
...
27
SCREW PLN-530016386
...
28
Handle-Starter PLN-530054834
...
29
Kit - Rope PLN-530071798
...
30
Assy-Clutch PLN-530055122
...
31
Washer-Clutch PLN-530094189
...
32
Assy.-Fan Hsg PLN-545016004
...
33
KIT STARTER SPRING PLN-545008014
...
34
Kit-Starter Pulley PLN-545050407
...
35
Baffle PLN-545080601
...
36
Screw PLN-530015880
...
37
Washer-Clutch Flat PLN-530016463
...
38
Assy-Flywheel PLN-530039243
...
39
ASSY CRANKCASE & CRANKSHAFT (Incl. 11,12,40) PLN-545102101
...
40
Retain. Ring-C'shaft PLN-530015941
...
41
Outer Bearing PLN-530055728
...
42
Seal-C'shaft PLN-530019264
...
43
Inner Bearing PLN-530032125
...
44
Kit-piston/rod (Incl. 10,45) PLN-530071785
...
45
CONNECTING ROD ASSY PLN-530049817
...
46
O-Ring-C'case (kit) PLN-530071750
...
47
Assy-Plug (incl.46) PLN-530057954
...
48
Screw PLN-530016386
...
49
Shroud-Rear PLN-530057539
...
50
Retainer-Tank PLN-530016445
...
51
Assy-Fuel Tank (incl. filter, lines & fuel cap) PLN-545103702
...
52
Assy-Fuel Cap PLN-530057973
...
53
Kit-Fuel Line (Small) PLN-530069247
...
54
Kit-Fuel Line (Large) PLN-530069216
...
55
Assy-Fuel Pickup (Incl. 7,13,16,46) PLN-530095646
...
56
Kit-Engine Gasket PLN-530071750
...
57
Assy-Clutch Drum (Incl. 61,62) PLN-530150247
...
58
Assy-Clutch Cover PLN-545077301
...
59
Screw-Align PLN-530016319
...
60
Screw PLN-530015772
...
61
Screw 12-24 PLN-530016381
...
62
Nut 12-24 PLN-530016382
...
63
Screw PLN-530015814

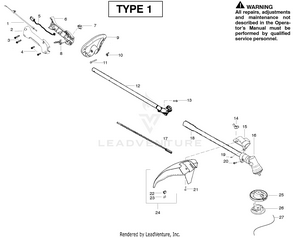

Shaft & Handle Type 1

...
...
1
Assy-Throttle Cable PLN-530059759
...
2
Hsg.-Throttle (RH) PLN-530057541
...
3
Screw PLN-530016406
...
4
Screw PLN-530015814
...
5
Assy.-Wire PLN-530054183
...
6
Hsg. Throttle (LH) PLN-530059760
...
7
Kit-Switch PLN-530069572
...
8
TRIGGER RED PLN-530049107
...
9
Assy.-Handle (Incl . 10,11) PLN-530058583
...
10
Nut PLN-530091373
...
11
Bolt PLN-530015786
...
12
KIT UPPER SHAFT BLACK (Incl. flex, clamp & 13) PLN-575260201
...
13
Screw PLN-530016344
...
14
Nut PLN-530091373
...
15
Bracket-Shield PLN-545150701
...
16
Gearbox PLN-530096099
...
17
Flexshaft-lower PLN-530096218
...
18
Kit-Lower Shaft PLN-530071789
...
19
Screw PLN-530016014
...
20
Screw PLN-530015775
...
21
Bolt PLN-530015820
...
22
Limiter-Line PLN-530052286
...
23
Screw PLN-530015814
...
24
Kit-Shield Assy. (Incl. 22,23) PLN-530071997
...
25
Assy - Fixed Line Head PLN-545053902
...
26
Cap - Fixed Line PLN-545049501
...
27
Accy - Line (12 pcs) PLN-952711635
...
27
Operator Manual Not Shown PLN-545154698
...
27
Decal-Shaft Warning Not Shown PLN-545209101
...
27
Decal-Upper Shaft Not Shown PLN-545167703
...
27
Decal-Rotation Direction Not Shown PLN-545065501
...
...
...
