Poulan Pro SM210VS Gas Blower Type 1

Model: SM210VS Gas Blower Type 1

Save
 Part Not Listed?Part Not Listed?
product name

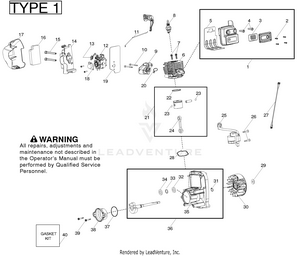

Engine Type 1

...
...
1
Assy - Muffler (Incl. 2,3,4,5) PLN-525592801
...
2
Screw PLN-530015241
...
3
Assy - Muffler PLN-525592801
...
4
Bolt PLN-530058982
...
5
Gasket-Muffler (gasket kit) PLN-545081832
...
6
Cylinder PLN-545115301
...
7
Bolt PLN-530015953
...
8
Spark Plug (RCJ-6Y) PLN-952030249
...
9
Adapter - Carb. PLN-545084901
...
10
Screw PLN-530016441
...
11
Linkage - Throttle PLN-545115501
...
12
Kit - Carb. Assy (C1U - W45) (Incl. 13,18) PLN-545180811
...
13
Lever- Choke (Yellow) PLN-545135905
...
14
Base - Airbox PLN-545163401
...
15
Screw PLN-530016429
...
16
Filter PLN-545146501
...
17
Cover - Air Box Filter PLN-545163501
...
18
Bulb - Purge (walbro 188-16) PLN-530035497
...
19
Gasket (Carb / Adapter) (gasket kit) PLN-545081832
...
20
O-Ring (Adapter / Cylinder) (gasket kit) PLN-545081832
...
21
Kit - Piston / Connecting Rod (Incl. 22,23,24) PLN-545081864
...
22
PISTON RING PLN-545154009
...
23
Retainer - Wrist Pin PLN-530015162
...
24
KIT PISTON CONN ROD FORGED PLN-545156002
...
25
Kit - Ignition Module PLN-545081826
...
26
Screw PLN-530016357
...
27
Assy - Wire Harness PLN-545127601
...
28
O-Ring (Cyl./Crankcase) (gasket kit) PLN-545081832
...
29
Washer PLN-530015828
...
30
FLYWHEEL ASSY PLN-545221701
...
31
Retainer - Crankshaft PLN-530015941
...
32
Bearing - Outer PLN-530055728
...
33
Seal PLN-530019264
...
34
Bearing - Inner PLN-530032125
...
35
Assy - Crankcase (Incl. 32,33,34) PLN-530012582
...
36
Assy - Crankcase & Crankshaft (Incl. 31,35) PLN-545102102
...
37
O-Ring (Rear Plug) (gasket kit) PLN-545081832
...
38
Assy - Rear Plug (Incl. 37) PLN-530057954
...
39
Screw PLN-530016386
...
40
Kit - Gasket (Incl. 5,19,20,28,37) PLN-545081832

Housing

...
...
1
Screw PLN-530015814
...
2
Assy - Engine Cover PLN-545148101
...
3
Screw PLN-530015880
...
4
Shield - Baffle PLN-545134001
...
5
Baffle PLN-545099101
...
6
Hub PLN-545052401
...
7
Spring - Pulley PLN-545052501
...
8
Kit - Starter Pulley (Incl. 6,7) PLN-545050407
...
9
KIT STARTER SPRING PLN-545008014
...
10
Handle - starter PLN-530054834
...
11
Kit - Rope PLN-545050416
...
12
Tube - Starter Rope PLN-545107101
...
13
Handle - RH PLN-545147801
...
14
Kit - Switch ( Incl. 15) PLN-545081830
...
15
Protector - Switch PLN-545128201
...
16
Grommet PLN-545137701
...
17
Bearing PLN-545099001
...
18
Nut PLN-530626605
...
19
Screw PLN-530015814
...
20
Rachet - Cruise Control PLN-545111501
...
21
Washer - Wave PLN-545173101
...
22
Kit - Cruise Control PLN-545081867
...
23
Trigger - Throttle PLN-545144902
...
24
ASSY HANDLE LEFT W/C PLN-545180001
...
25
Screw PLN-530016406
...
26
Screw PLN-530015814
...
27
Door -Vac PLN-545148201
...
28
Spring - Vac Door PLN-545115601
...
29
Knob - Blower PLN-545144501
...
30
Screw - Vac Handle PLN-530015940
...
31
Assy - Scroll LH (Incl. 27,28) PLN-545180201
...
32
Washer - Lock PLN-530092322
...
33
Blade - Mulch PLN-545120701
...
34
ASSY IMPELLER HUB PRO GOLD PLN-580780901
...
35
Spacer - Flywheel PLN-545113701
...
36
Nut - Blower Knob PLN-530015197
...
37
Screw PLN-530016386
...
38
Assy - Scroll RH ( Incl. 17 ) PLN-545180102
...
39
Handle - Vac PLN-545148001
...
40
FUEL TANK (Incl. 41,42,43,44) PLN-576764901
...
41
Assy - Fuel Pickup PLN-530095646
...
42
Kit - Fuel Line (carb/purge) PLN-530069247
...
43
Kit - Fuel Line (tank/purge) PLN-530069216
...
44
Assy - Fuel Cap w/retainer PLN-530057973
...
45
Screw - Fuel Tank Retainer PLN-530016445
...
45
Manual Not Shown PLN-115351327
...
45
Decal - Warning Not Shown PLN-527290301

Tubes

...
...
1
Tube - Upper Vac PLN-545099401
...
2
Tube - Lower Vac PLN-530095589
...
3
Tube - J PLN-575873601
...
4
Assy - Vac Bag PLN-530095564
...
5
Tube - Upper Blower PLN-545138001
...
6
Tube - Lower Blower PLN-545138101
...
7
Nozzle - High Speed PLN-545151201
...
...
...
