Poulan Pro SM132 Gas Trimmer Type 1

Model: SM132 Gas Trimmer Type 1

Save
 Part Not Listed?Part Not Listed?
product name

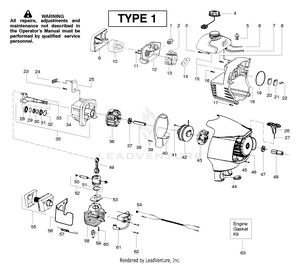

Engine Assembly

...
...
1
Bulb-Purge PLN-530047721
...
2
Kit-Choke Lever PLN-530071717
...
3
Screw-tank PLN-530015843
...
4
Assy - Fuel Cap w/retainer PLN-530057973
...
5
Assy-Fuel pickup PLN-530095646
...
6
Kit-Fuel line PLN-530069247
...
7
Kit-Fuel/Purge line PLN-530069216
...
8
Screw PLN-530015775
...
9
Cover-Air box PLN-530054935
...
10
Filter-Air PLN-530054946
...
11
Screw-Carb. PLN-530015849
...
12
Box-Air PLN-530054934
...
13
Assy-Carb(WT628) (Note: Repair kits are not available for this carburetor) PLN-530071637
...
14
Gasket-Carb. (kit) PLN-530071401
...
15
Assy-Fuel Tank PLN-545075305
...
16
Screw-Crankcase PLN-530015771
...
17
Screw-Shroud PLN-530015952
...
18
Shroud PLN-530056044
...
19
O-ring-Shroud (kit) PLN-530071401
...
20
Valve-Reed PLN-530027593
...
21
Stop-Reed PLN-530054596
...
22
SCREW 6-19X.437 PLN-545227101
...
23
Screw-Retainer PLN-530015875
...
24
Isolator-Tank PLN-530055492
...
25
Ret.-Tank PLN-530054941
...
26
Handle-Starter PLN-530054834
...
27
Kit-Rope PLN-530071400
...
28
Bearing-Inner PLN-530032103
...
29
Retainer PLN-530015787
...
30
Seal PLN-530019158
...
31
Bearing-Outer PLN-530032102
...
32
Ret.-Crankshaft PLN-530015789
...
33
Assy-Crankshaft PLN-530012430
...
34
Assy-Crankcase (Incl. 28-31) PLN-545081901
...
35
Assy-C'case/C'shaft (Incl. 32,33,34) PLN-530071686
...
36
Kit-Flywheel Assy. PLN-530071402
...
37
Washer PLN-530016030
...
38
Spacer PLN-530055620
...
39
Screw-Baffle PLN-530015775
...
40
Plate-Baffle PLN-545115201
...
41
Screw-Rope PLN-530016391
...
42
Kit-Pulley (incl.41) PLN-530071399
...
43
KIT STARTER SPRING PLN-545008011
...
44
Grommet PLN-530019182
...
45
SCREW PLN-530016386
...
46
Assy.-Fan Housing PLN-530055248
...
47
Washer PLN-530016030
...
48
Coupling-Drive PLN-530012427
...
49
Assy-Conn. Rod PLN-530010960
...
50
Ret.-Piston pin PLN-530015162
...
51
Ring-Piston PLN-530012595
...
52
Kit-Piston (Incl. 50,51) PLN-530072000
...
53
Gasket-Cylinder (kit) PLN-530071401
...
54
Assy-Leadwire PLN-530057238
...
55
Kit-Muffler PLN-530069310
...
56
Shield PLN-530058957
...
57
Spring-Muffler PLN-530036409
...
58
Kit-Cylinder PLN-530071581
...
59
Plug-Spark (RCJ-6Y) PLN-952030249
...
60
Bolt-Cyl. 1/4-20" PLN-530001624
...
61
Module-Ignition PLN-530039218
...
62
Screw-Module PLN-530016357
...
63
Kit-Gasket (Incl. 14,19, 53) PLN-530071401

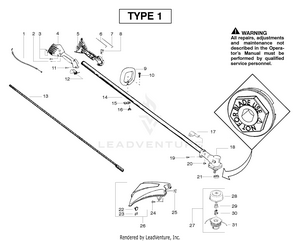

Handle & Shaft Assembly

...
...
1
Assy-Throttle cable PLN-530054942
...
2
Screw-alignment PLN-530015805
...
3
Screw PLN-530015886
...
4
Throttle Hsg.-Right PLN-530054837
...
5
Kit-Left Throttle Hsg. PLN-530071553
...
6
Assy-Front wire PLN-530054943
...
7
Assy- Front Wire (upper) PLN-530055724
...
8
Kit-Switch PLN-530069572
...
9
Assy-Handle (Incl. 10,15,16) PLN-530055699
...
10
Bolt PLN-530015820
...
11
Screw PLN-530015886
...
12
Trigger-Throttle PLN-530054940
...
13
Shaft-Flex PLN-530095963
...
14
Assy-Driveshaft PLN-530055355
...
15
Clamp-Assist Handle PLN-530088416
...
16
Nut PLN-530091373
...
17
Bracket-Shield PLN-530095812
...
18
Assy.-Gearbox non blade PLN-530071584
...
19
Screw PLN-530016014
...
20
Screw PLN-530016224
...
21
Non-Blade Dust cup PLN-530095814
...
22
Limiter-Line PLN-530052285
...
23
Screw PLN-530015805
...
24
Bolt PLN-530015820
...
25
Nut PLN-530091373
...
26
Kit-Shield Ass'y. (Incl. 22,23) PLN-530069779
...
27
Accy--Cutting Head (Incl. 28-31) PLN-952711550
...
28
Assy.-Hub/Arbor (3/8lh, 2x) PLN-530095772
...
29
Spring-Return PLN-530053241
...
30
Retainer-Spool PLN-530401957
...
31
Accy--Spool w/Line PLN-952711551
...
xx
Operator Manual Not Shown PLN-530164890
...
xx
Decal-Shaft Warning Not Shown PLN-530055350
...
xx
Decal-Start Instructions Not Shown PLN-530057369
...
...
...
