product name

Poulan Pro S25 Gas Saw

Model: S25 Gas Saw

Save
 Part Not Listed?Part Not Listed?
product name

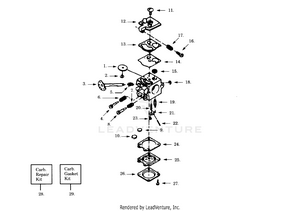

CARBURETOR WT-83 BREAKDOWN

...
...
1
Valve Throttle PLN-530035006
...
2
Throttle Valve Screw PLN-530035015
...
3
Throttle Shaft Ass'y. PLN-530035034
...
4
Low Speed Mixture Needle PLN-530035171
...
5
Throttle Return Spring PLN-530035024
...
6
Low Speed Mixture Needle Spring PLN-530035023
...
7
High Speed Mixture Needle Spring PLN-530035167
...
8
High Speed Mixture Needle PLN-530035169
...
9
Plug-5/16 Dia. Welch Included in Carburetor Kwik Repair Kit. PLN-530035162
...
10
Plug-1/4 Dia. Welch Included in Carburetor Kwik Repair Kit. PLN-530035163
...
11
Pump Cover Screw PLN-530035017
...
12
Fuel Pump Cover PLN-530035159
...
13
GASKET PLN-504130906
...
14
PUMP DIAPHRAGM PLN-504130807
...
15
Fuel Inlet Screen Included in Carburetor Kwik Repair Kit. PLN-530035027
...
16
Idle Speed Adjusting Screw PLN-530035035
...
17
Spring-Idle Speed Adjusting Screw PLN-530035168
...
18
Throttle Retainer Ring PLN-530035007
...
19
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001
...
20
Metering Lever Spring Included in Carburetor Kwik Repair Kit. PLN-530035188
...
21
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
22
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
23
Screw-Metering Lever Pin Included in Carburetor Kwik Repair Kit. PLN-530035016
...
24
Metering Diaphragm Gasket PLN-530035165
...
25
DIAPHRAGM PLN-503896701
...
26
Metering Diaphragm Cover PLN-530035003
...
27
Metering Cover Screw Ass'y. PLN-530035021
...
28
Carb. Repair Kit PLN-530035161
...
29
Gasket Diaphragm Kit PLN-530069844

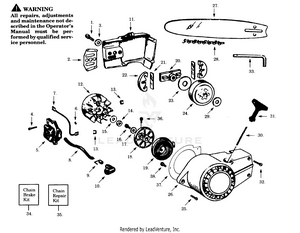

EXTERNAL POWER UNIT

...
...
1
Screw PLN-530015183
...
2
Guide Plate PLN-530023864
...
3
Washer PLN-530015149
...
4
Screw PLN-530015816
...
5
Ignition Module (Incl. 7-10) PLN-530039141
...
6
Flywheel Key PLN-530015126
...
7
Lead Stop Switch PLN-530039168
...
8
High Tension Lead (Bulk No. 8141) PLN-530039026
...
9
Connector Spring Plug PLN-530039071
...
10
Spark Plug Boot PLN-530039097
...
11
Bar Clamp PLN-530011198
...
12
Flywheel Ass'y. PLN-530047198
...
13
Starter Dog Spring PLN-530047198
...
14
Nut PLN-530626605
...
15
Washer PLN-530015127
...
16
Screw PLN-530001724
...
17
Washer PLN-530015123
...
18
Starter Pulley PLN-530069289
...
19
SPRING-STARTER PLN-545008007
...
20
Clutch Spider PLN-530022079
...
21
Clutch Springs PLN-530023381
...
22
Clutch Shoes PLN-530023379
...
23
Clutch Plate PLN-530023382
...
24
Drum & Sprocket Ass'y. PLN-530069301
...
25
Screw PLN-530015074
...
26
Fan Housing PLN-530011243
...
27
BAR 14" .050 3/8 041 52DL PLN-952044368
...
27
16" Sprocket Nose PLN-952044369
...
28
ACCY CHN 14" 52DL 3/8 .050 PLN-581562101
...
28
ACCY P/PP CHN 16" 56DL 3/8 PLN-581562201
...
29
Clutch Washer PLN-530023519
...
30
Rope Kit PLN-530069232
...
31
Handle-Starter PLN-530056402
...
32
Screw PLN-530015122
...
33
Bar Wrench PLN-530031017
...
34
Chain Brake Kit PLN-952069259
...
35
Chain Repair Kit PLN-530-052073
...
36
Screw PLN-530016080
...
37
Air Inlet Baffle PLN-530011243
...
38
Screw PLN-530015241
...
39
Carton (Not a serviceable part) Not Shown. PLN-530061047
...
40
14" Not Shown. PLN-530014095
...
40
16" Not Shown. PLN-530014096
...
41
Operator Manual Not Shown. PLN-530067169
...
42
14" Decal (Not a serviceable part) Not Shown. PLN-530027927
...
42
16" Not Shown. PLN-530027928

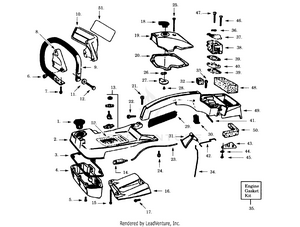

HANDLE HOUSING

...
...
1
Fuel Cap Ass'y. PLN-530010123
...
2
Fuel Tank Top PLN-530012259
...
3
Fuel Tank Gasket Included in Gasket Set. PLN-530019047
...
4
Fuel Tank Bottom PLN-530012260
...
5
Screw PLN-530015138
...
6
Screw PLN-530015509
...
7
Screw PLN-530015037
...
8
Handguard Cap PLN-530024049
...
9
Front Handlebar PLN-530022310
...
10
Handguard PLN-530024089
...
11
Washer PLN-530015151
...
12
Screw PLN-530001648
...
13
Start/Stop Switch PLN-530023573
...
14
Assy-Fuel Pickup PLN-530095646
...
15
Screw PLN-530015152
...
16
Cylinder Shield PLN-530011147
...
17
Screw PLN-530001709
...
18
Choke Knob PLN-530023376
...
19
Carburetor Cover PLN-530011558
...
20
Carb. Cover Gasket PLN-530019055
...
21
Screw PLN-530015239
...
22
Screw PLN-530015247
...
23
Line Kit (Bulk 8133) PLN-530069216
...
24
Screw PLN-530015476
...
25
Screw PLN-530015144
...
26
Wave Washer PLN-530015147
...
27
Choke Lever PLN-530023876
...
28
Screw PLN-530015407
...
29
Handle Grip PLN-530024111
...
30
Oil Pump Button PLN-530023362
...
31
Trigger PLN-530024672
...
32
Throttle Wire Boot PLN-530023373
...
33
Screw PLN-530001636
...
34
Oil Pump Push Rod PLN-530023361
...
35
Engine Gasket Kit PLN-530069023
...
36
Wave Washer PLN-530015146
...
37
Choke Shutter PLN-530023841
...
38
Carburetor PLN-530035265
...
39
Carb. Gasket PLN-530019045
...
40
Spacer PLN-530023872
...
41
Trigger Pin PLN-530015145
...
42
Throttle Rod PLN-530023372
...
43
Reed PLN-530023366
...
44
Washer PLN-530023367
...
45
Screw PLN-530015139
...
46
Screw PLN-530015257
...
47
Screw PLN-530015256
...
48
Air Filter PLN-530023369
...
49
Handle & Carb. Hsg. PLN-530011548
...
50
Dust Seal PLN-530023388
...
51
Handguard Decal PLN-530026849
...
52
Instruction Decal PLN-530027939

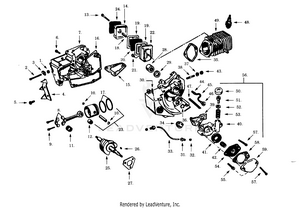

INTERNAL POWER UNIT

...
...
1
Nut PLN-530015135
...
2
Screw PLN-530016115
...
3
BAR ADJUST PIN PLN-530023492
...
4
Spur (Optional) PLN-530023387
...
5
Screw PLN-530015539
...
6
Screw PLN-530015136
...
7
Crankcase Ass'y. (Incl. 1,2,3,16,28-30,&38) PLN-530010223
...
8
Connecting Rod Ass'y. (Incl. 9 & 12) PLN-530022077
...
9
Screw PLN-530001723
...
10
Piston Pin Retainer PLN-530015131
...
11
Crankpin Rollers PLN-530032019
...
12
Piston Pin Bearing PLN-530032018
...
13
Screw PLN-530015189
...
14
Muffler Cover PLN-530026729
...
15
Gasket Included in Gasket Set. PLN-530019049
...
16
Crankcase Gasket Included in Gasket Set. PLN-530019044
...
17
Piston Rings PLN-530023485
...
18
Muffler Spacer PLN-530015657
...
19
Muffler Baffle PLN-530023591
...
20
Muffler Screen PLN-530023592
...
21
Screw PLN-530001709
...
22
Muffler Body PLN-530026731
...
23
Piston Ass'y. (Incl.10) PLN-530069298
...
24
Muffler Shield PLN-530026730
...
25
Crankshaft PLN-530022173
...
26
Flywheel Key PLN-530015126
...
27
Crankcase Washer PLN-530023354
...
28
Bearing PLN-530032021
...
29
Seal Included in Gasket Set. PLN-530019051
...
30
Oil Vent Pin PLN-530069185
...
31
Discharge Line Fit ting PLN-530002615
...
32
Ferrule 1/8" Tubing PLN-530002464
...
33
Discharge Line-Oil Pump (Bulk 8115) PLN-530021013
...
34
Oil Cap (Incl. O Ring w/Retainer) PLN-530023874
...
35
Cylinder Gasket Included in Gasket Set. PLN-530019043
...
36
O-Ring PLN-530001952
...
37
Cylinder Washer PLN-530001642
...
38
Cylinder Studs PLN-530001674
...
39
Oil Pump Body Gasket Included in Gasket Set. PLN-530019054
...
40
Oil Pump Body PLN-530010178
...
41
Pump Body Filter Included in Gasket Set. PLN-530023698
...
42
Diaphragm Spring PLN-530023699
...
43
Nut PLN-530001660
...
44
Oil Pick-up Weight PLN-530002589
...
45
Oil Line (Bulk 8132) PLN-530021012
...
46
Oil Pump Intake Valve PLN-530023148
...
47
Oil Line Protector Spring PLN-530024677
...
48
BPMR7A NGK SPARK PLUG PLN-503235111
...
49
Cylinder PLN-530012072
...
50
Oil Pump Cap PLN-530023356
...
51
Oil Pump Plunger PLN-530023357
...
52
Quad Ring Plunger Included in Gasket Set. PLN-530019029
...
53
Oil Pump Spring PLN-530023358
...
54
Diaphragm Ass'y. PLN-530022124
...
55
Screw PLN-530015114
...
56
Pump Ass'y. PLN-530010177
...
57
Screw PLN-530015137
...
58
Pump Body Cover Gasket Included in Gasket Set. PLN-530019053
...
59
Oil Pump Ass'y. Cover PLN-530011163
...
...
...
