Poulan Pro PPFT35C Tiller

Model: PPFT35C Tiller

Save
Part Not Listed?Part Not Listed?
product name

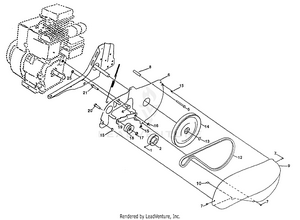

Belt Guard And Pulley Assembly

...
...
1
Screw, Set, Forged Socket, Headless 5/16-18 x 3/8 PLN-23230506

...
2
Pulley, Engine PLN-130812

...
4
Bolt, Hex 1/2-20 x 3/4 PLN-74610812

...
5
Bolt Thd Roller 1/4-20 x 2-1/2 PLN-17490440

...
6
Shield Inner Belt Guard PLN-165770

...
7
Screw Hex Wsh Head #8-18 x 1/2 PLN-165503

...
8
Spacer Split .523 x .718 x 2 PLN-139155

...
9
Guard, Belt PLN-165768X505

...
10
Pad, Idler PLN-109227X

...
12
V-Belt PLN-9180R

...
13
Ring, Retainer (AYP part number) PLN-12000028

...
14
Pulley, Transmission PLN-151223

...
15
Nut J Clip #8 PLN-165504

...
16
Ring, Klip PLN-12000036

...
17
Nut, Hex, Jam 3/8-16 PLN-73350600

...
18
Pulley, Idler PLN-161806

...
19
Idler Arm Assembly PLN-162290

...
20
Bolt, Hex 3/8-16 x 1-1/4 PLN-74760620

...
21
Shaft, Idler Arm PLN-106968X

...
25
Nut, Hex, Jam 5/16-18 PLN-73350500

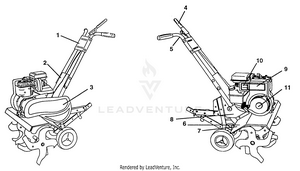

Decals

...
...
1
Decal, Logo PLN-162682

...
2
Decal, HP PLN-162681

...
3
Decal (Not a serviceable part) PLN-166812

...
4
Decal, Tine Control PLN-110613X

...
5
Decal, Hand Placement PLN-110614X

...
6
Decal, Warning PLN-162384

...
7
Decal, Warning, Rotating Tines PLN-120076X

...
8
Decal, Cust Assist PLN-150496

...
9
Decal, B&S PLN-165269

...
10
Decal, Speed Control PLN-165327

...
11
Decal (Not a serviceable part) PLN-165277

...
xx
Manual, Owner's (English) PLN-168103

...
xx
Manual, Owner's (French) (AYP part number) PLN-168104

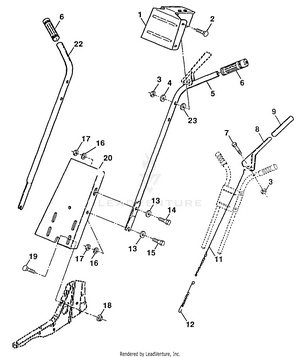

Handle Assembly

...
...
1
Bracket, Handle PLN-137176X505

...
2
Bolt, Carriage 5/16-18 UNC x 1-1/2 PLN-72140512

...
3
Locknut, Crown 5/16-18 PLN-73680500

...
4
Washer 11/32 x 11/16 x 16 Ga. PLN-19111116

...
5
Handle, L.H. PLN-151473

...
6
Grip, Handle (AYP part number) PLN-9266R

...
7
Bolt, Hex 5/16-18 x 1-1/2 PLN-74760524

...
8
Lever, Control, Tine PLN-164937

...
9
Grip, Lever PLN-8206H

...
11
Cable, Control, Tine (AYP part number) PLN-3067J

...
12
Spring, Extension PLN-3070J

...
13
Washer 3/8 x 7/8 x 14 Ga. PLN-19121414

...
14
Bolt, Hex Hd 5/16-18 x 1 (AYP part number) PLN-74760516

...
15
Bolt, Hex Hd 5/16-18 x 3/4 PLN-74760512

...
16
Washer, Lock 5/16 PLN-10040500

...
17
Nut, Hex 5/16-18 PLN-73220500

...
18
Nut, Flanged 5/16-18 (AYP part number) PLN-98000129

...
19
Bolt, Carriage 5/16-18 x 3/4 Gr. 5 PLN-72140506

...
20
Panel, Handle PLN-9209R505

...
22
Handle, R.H. PLN-151474

...
23
Washer 13/32 x 13/16 x 12 Ga. PLN-19131312

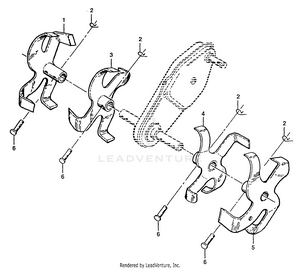

Tine Assembly

...
...
1
Tine, Outer, R.H. PLN-165774

...
2
Clip, Hairpin PLN-4921H

...
3
Tine, Inner, R.H. PLN-165772

...
4
Tine, Inner, L.H. PLN-165771

...
5
Tine, Outer, L.H. PLN-165773

...
6
Pin, Clevis PLN-9194R

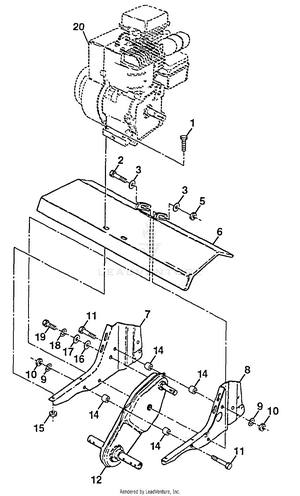

Transmission

...
...
1
Bolt, Hex 5/16-18 x 1-1/2 PLN-74760524

...
2
Bolt, Hex 3/8-16 x 3-1/4 PLN-74780652

...
3
Washer 13/32 x 13/16 x 11 Ga. PLN-19131311

...
5
Locknut, w/Insert 3/8-16 PLN-73800600

...
6
Shield Tine PLN-9056R505

...
7
Bracket, Engine, R.H. PLN-165835

...
8
Bracket, Engine, L.H. PLN-165834

...
9
Washer, Lock 5/16 PLN-10040500

...
10
Nut, Hex 5/16-18 PLN-73220500

...
11
Bolt, Hex 5/16-18 x 2-3/4 (AYP part number) PLN-74760544

...
12
Transmission PLN-151937

...
14
Spacer, Split PLN-9173R

...
15
Nut, Keps 5/16-18 PLN-73510500

...
16
Washer 9/32 x 7/8 x 12 Ga. PLN-19091412

...
17
Washer 9/32 x 1-1/4 x 16 Ga. PLN-19092016

...
18
Washer, Lock 1/4 PLN-10040400

...
19
Bolt, Hex 1/4-28 x 3/4 Gr. 5 PLN-74610412

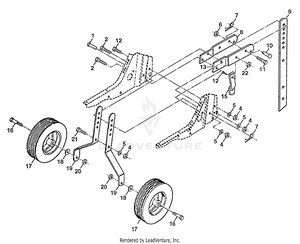

Wheel And Depth Stake Assembly

...
...
1
Rivet Rd Hd Drilled 1 38 PLN-9194R

...
2
Bolt, Hex 5/16-18 x 1-1/4 PLN-74760520

...
4
Nut, Hex 5/16-18 PLN-73220500

...
5
Washer, Lock 5/16 PLN-10040500

...
6
Locknut, w/Insert 3/8-16 PLN-73800600

...
7
Clip, Hairpin PLN-4921H

...
8
Support, Depth Stake, R.H. PLN-318J

...
9
Depth Stake (AYP part number) PLN-9193R

...
10
Pin, Clevis PLN-9551R

...
11
Bolt Hex 5/16-18 x 1-1/2 PLN-74760524

...
12
Bolt, Hex 5/16-18 x 3/4 PLN-74760512

...
13
Support, Depth Stake, L.H. (AYP part number) PLN-317J

...
15
Spring, Depth Stake PLN-5388J

...
16
Bolt, Shoulder PLN-121117X

...
17

...
18
Washer 13/32 x 13/16 x 11 Ga. PLN-19131311

...
19
Bracket, Wheel (AYP part number) PLN-9190R

...
20
Nut, Crownlock 3/8-16 PLN-73680600

...
21
Bolt Hex Hd 5/16-18 x 1 (AYP part number) PLN-74760516

...
22
Locknut, w/insert 5/16-18 PLN-73800500
...
...
...
