product name

Poulan Pro PPB430VS Gas Blower Type 2

Model: PPB430VS Gas Blower Type 2

Save
 Part Not Listed?Part Not Listed?
product name

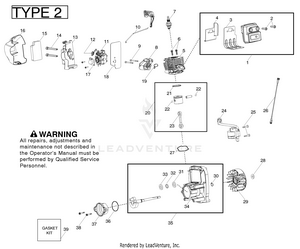

Engine Type 2

...
...
1
Assy - Muffler (Incl. 2,3,4) PLN-525592801
...
2
Bolt PLN-530058982
...
3
Gasket-Muffler (gasket kit) PLN-545081832
...
4
Shield - Muffler Heat PLN-545098801
...
5
Cylinder PLN-545115301
...
6
Bolt PLN-530015953
...
7
Spark Plug (RCJ-6Y) PLN-952030249
...
8
Adapter - Carb. PLN-545084901
...
9
Screw PLN-530016441
...
10
Linkage - Throttle PLN-545115501
...
11
Kit - Carb. Assy (WT847) (Incl. 12,17) PLN-545081831
...
12
Lever- Choke (Gold) PLN-545157102
...
13
Base - Airbox PLN-545112602
...
14
Screw PLN-530016429
...
15
Filter PLN-545116801
...
16
Cover - Air Box Filter PLN-545112702
...
17
Bulb - Purge (walbro 188-16) PLN-530035497
...
18
Gasket (Carb / Adapter) (gasket kit) PLN-545081832
...
19
O-Ring (Adapter / Cylinder) (gasket kit) PLN-545081832
...
20
Kit - Piston / Connecting Rod (Incl. 21,22,23) PLN-545081864
...
21
PISTON RING PLN-545154009
...
22
Retainer - Wrist Pin PLN-530015162
...
23
KIT PISTON CONN ROD FORGED PLN-545156002
...
24
Kit - Ignition Module PLN-545081826
...
25
Screw PLN-530016357
...
26
Assy - Wire Harness PLN-545127601
...
27
O-Ring (Cyl/Crankcase) (gasket kit) PLN-545081832
...
28
Washer PLN-530015828
...
29
FLYWHEEL ASSY PLN-545221701
...
30
Retainer - Crankshaft PLN-530015941
...
31
Bearing - Outer PLN-530055728
...
32
Seal PLN-530019264
...
33
Bearing - Inner PLN-530032125
...
34
Assy - Crankcase (Incl. 31,32,33) PLN-530012582
...
35
Assy - Crankcase & Crankshaft (Incl. 30,34) PLN-545102102
...
36
O-Ring (Rear Plug) (gasket kit) PLN-545081832
...
37
Assy - Rear Plug (Incl. 36) PLN-530057954
...
38
Screw PLN-530016386
...
39
Kit - Gasket (Incl. 3,18,19,27,36) PLN-545081832

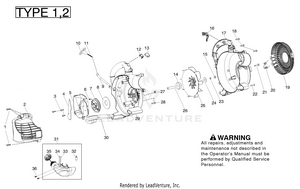

Housing Type 1,2

...
...
1
Screw PLN-530015814
...
2
Assy - Engine Cover PLN-545135806
...
3
Screw PLN-530015880
...
4
Shield - Baffle PLN-545134001
...
5
Baffle PLN-545099101
...
6
Screw PLN-530016391
...
7
Kit - Starter Pulley PLN-545081852
...
8
KIT STARTER SPRING PLN-545008011
...
9
Tube - Starter Rope PLN-545107101
...
10
Handle - starter PLN-530054834
...
11
Kit - Rope PLN-545081833
...
12
Kit - Switch ( Incl. 13) PLN-545081830
...
13
Protector - Switch PLN-545128201
...
14
Bearing PLN-545099001
...
15
Nut PLN-530626605
...
16
Trigger - Throttle PLN-545113802
...
17
Assy - Scroll LH (Incl. 19,20) PLN-545134102
...
18
Screw PLN-530015814
...
19
Door - Vac PLN-545100801
...
20
Spring - Vac Door PLN-545115601
...
21
Knob - Blower PLN-545144501
...
22
Screw - Vac Handle PLN-530016406
...
23
Washer - Lock PLN-530092322
...
24
Washer - Impeller PLN-545109901
...
25
ASSY IMPELLER HUB PRO GOLD PLN-580780901
...
26
Spacer - Flywheel PLN-545113701
...
27
Nut - Blower Knob PLN-530015197
...
28
SCREW PLN-530016386
...
29
Assy - Scroll RH ( Incl. 14 ) PLN-545161602
...
30
Handle - Vac PLN-545101201
...
31
FUEL TANK (Incl. 32,33,34,35) PLN-576764901
...
32
Assy - Fuel Pickup PLN-530095646
...
33
Kit - Fuel Line (carb/purge) PLN-530069247
...
34
Kit - Fuel Line (tank/purge) PLN-530069216
...
35
Assy - Fuel Cap w/retainer PLN-530057973
...
36
Screw - Fuel Tank Retainer PLN-530016445
...
36
Manual Not Shown PLN-115350727
...
36
Decal - Warning Not Shown PLN-527290301

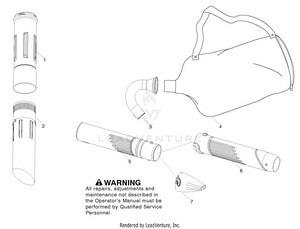

Tubes

...
...
1
Tube - Upper Vac PLN-545099401
...
2
Tube - Lower Vac PLN-530095589
...
3
Tube - J PLN-575873501
...
4
Assy - Vac Bag PLN-530095564
...
5
Tube - Upper Blower PLN-545100501
...
6
Tube - Lower Blower PLN-545100601
...
7
Nozzle - High Speed PLN-545151201
...
...
...
