Poulan Pro PPB1634LE Gas Saw

Model: PPB1634LE Gas Saw

Save
 Part Not Listed?Part Not Listed?
product name

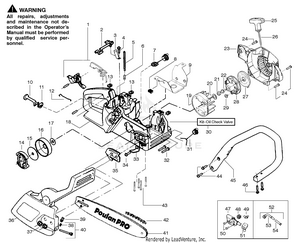

Chassis & Handle Assembly

...
...
1
Kit-Trigger & Lockout (Includes Pin) PLN-530071832
...
2
Lever-Switch PLN-530038227
...
3
Spring-Switch PLN-530016149
...
4
Screw PLN-530015775
...
5
Kit-Fuel Line (Large) PLN-530069216
...
6
Fitting - Fuel line PLN-530023877
...
7
FUEL CAP ASSY PLN-580940901
...
8
Clip - "U" PLN-530055322
...
9
Shield - Heat PLN-530055183
...
10
Lever-Choke PLN-530047989
...
11
Grommet-Choke lever PLN-530049005
...
12
Wire-Throttle PLN-530037809
...
13
Nut-Speed PLN-530015922
...
14
Assy.-Clutch PLN-530014949
...
15
Washer-Clutch PLN-530015611
...
16
Assy-Drum W/brg. PLN-530047061
...
17
Washer - Thrust PLN-530015907
...
18
Assy-Chassis PLN-530059271
...
19
FLYWHEEL ASSY PLN-530047534
...
20
Washer-Flywheel PLN-530015127
...
21
Nut-Flywheel PLN-530016134
...
22
Screw PLN-530015920
...
23
Housing-Fan PLN-530059270
...
24
Screw PLN-530015892
...
25
Handle-Starter PLN-530056402
...
26
Kit-Rope PLN-530069232
...
27
SPRING STARTER PLN-545008015
...
28
STARTER PULLEY PLN-545034301
...
29
Screw PLN-530016080
...
30
Kit-Oil Check Valve PLN-530071666
...
31
OIL TANK CAP PLN-530057236
...
32
Bolt - Bar PLN-530016133
...
33
Chain Catcher PLN-530029850
...
34
Screw PLN-530015814
...
35
Plate-Bar Mounting PLN-530038238
...
36
Assy-Chain Brake PLN-545139902
...
37
Nut-Bar Mounting PLN-530015917
...
38
Retainer-Bar Adjust PLN-530038593
...
39
Pin-Bar Adjust PLN-530015826
...
40
Kit-Bar Adjust (incl 38,39) PLN-530069611
...
41
Bar-16" PLN-952044369
...
42
ACCY P/PP CHN 16" 56DL 3/8 PLN-581562201
...
43
Screw PLN-530016132
...
44
Screw PLN-530015814
...
45
Handle-Front PLN-530059173
...
46
Screw PLN-530015940
...
47
Kit-Oil Pump (incl 48,49,51) PLN-530071259
...
48
Gear-Worm Spring PLN-530037820
...
49
Elbow-Oil Pickup PLN-530049477
...
50
SCREW 6-19X.437 PLN-545227101
...
51
Block-Seal PLN-530019206
...
52
Assy-Oil-Pickup (Incl. 53, 54 ) PLN-530047663
...
53
Pickup-Oiler PLN-530038373
...
54
Filter-Oil PLN-530056533

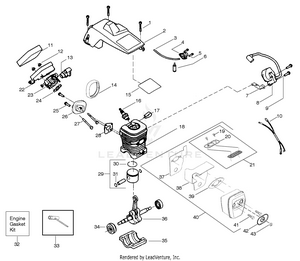

Engine Assembly

...
...
1
Screw PLN-530016153
...
2
Assy-Cylinder Shield (includes # 15) PLN-530055637
...
3
Kit-Fuel Line (Small) PLN-530069247
...
4
Kit-Purge Bulb PLN-530071835
...
5
Screw PLN-530015780
...
6
Assy-Fuel Pick-up PLN-530095646
...
7
Strap-Ground PLN-530047442
...
8
Ignition Module PLN-530039198
...
9
Screw PLN-530015814
...
10
Assy-Wire Harness PLN-530052296
...
11
Foam-Air Filter PLN-530037793
...
12
Nut PLN-530016101
...
13
Grommet-Carb Adjust PLN-530035526
...
14
Seal-Carb Adapter PLN-530054144
...
15
Reflector-Heat PLN-530055698
...
16
BPMR7A NGK SPARK PLUG PLN-503235111
...
17
Clip-High Tension Lead PLN-530016136
...
18
Cylinder PLN-530012550
...
19
Screw-Outlet cover PLN-530016351
...
20
Cover- Outlet PLN-530054883
...
21
MUFFLER (Incl. 19,20) PLN-530071904
...
22
Air Filter Housing PLN-530057480
...
23
Kit-Carburetor (Walbro-WT-89) PLN-545081885
...
23
Kit-Carburetor (Walbro-WT-89) (WT-662) PLN-545081885
...
24
Gasket-Carb. (kit) PLN-530069608
...
25
Screw PLN-530016386
...
26
Carb. Adapter PLN-530049700
...
27
Screw PLN-530016187
...
28
Gasket- Adaptor(kit) PLN-530069608
...
29
Kit-Piston (Incl. 30 & 31) PLN-530071408
...
30
Ring-Piston PLN-545160401
...
31
Retainer-Piston Pin PLN-530015697
...
32
Kit-Engine Gasket (Incl. 24, 28 & 39) PLN-530069608
...
33
Bar Wrench PLN-530031163
...
34
Assy-Seal & Bearing PLN-530056363
...
35
Cap-Crankcase PLN-530037935
...
36
CRANKSHAFT ASSY PLN-545113101
...
37
Backplate PLN-530054885
...
38
Guide-Outlet PLN-530054880
...
39
Gasket-Muffler(kit) PLN-530069608
...
40
MUFFLER (Incl. 37-39,41) PLN-530071904
...
41
Bolt-Muffler PLN-530016338
...
42
Cover-Bolt PLN-530055586
...
43
NUT 10MM BRASS PLN-574266401
...
xx
Manual Not Shown PLN-530164284
...
xx
Decal-Warning Not Shown PLN-530057757
...
xx
Decal-Start Inst. Not Shown PLN-530059229
...
...
...
