Poulan Pro PP752HI Mower

Model: PP752HI Mower

Save
 Part Not Listed?Part Not Listed?
product name

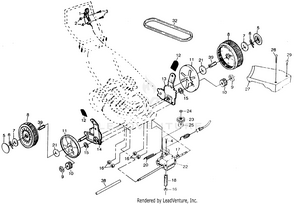

DRIVE ASSEMBLY

...
...
1
Drive Control (AYP part number) PLN-532137076
...
2
Locknut #10-24 (AYP part number) PLN-532074189
...
3
Pan Head Machine Screw #10-24 x 2 (AYP part number) PLN-532750029
...
4
Carriage Bolt 1/4-20 x 2 (AYP part number) PLN-532700875
...
5
Hubcap (AYP part number) PLN-532077400
...
6
Retainer Clip (AYP part number) PLN-532085179
...
7
Washer (AYP part number) PLN-532052160
...
8
Wheel & Tire Assembly (AYP part number) PLN-532750851
...
9
E-RING 7/16 RE PLN-812000058
...
10
Pinion PLN-532137054
...
11
COVER.DUST.WHEEL.INNER.WALK PLN-581840401
...
12
SELECTOR KNOB PLN-532701037
...
13
KIT.ADJUSTER.ASM.438442.ORING PLN-583530901
...
14
Wheel Adjuster Assembly (Right) (AYP part number) PLN-532751810
...
15
Felt Washer (AYP part number) PLN-532088118
...
16
NUT 1/4-20 NYLOC PLN-539976978
...
17
Hi-Pro Key (AYP part number) PLN-532850848
...
18
Spring (AYP part number) PLN-532137090
...
20
Spring PLN-532075192
...
21
Washer 1/2 x 1-1/2 x .134 (AYP part number) PLN-532067725
...
22
Gear Case Assembly (AYP part number) PLN-532702510
...
23
Drive Pulley (AYP part number) PLN-532137052
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409148
...
25
Spacer (AYP part number) PLN-532077881
...
27
Drive Cover PLN-532137080
...
28
Pan Head Tapping Screw #10-24 x 2-3/4 (AYP part number) PLN-532087866
...
29
Pan Head Tapping Screw #10-24 x 1-3/4 (AYP part number) PLN-532149746
...
32
KIT.SERVICE.BELT/SPRING. PLN-532157769
...
38
Drive Shaft Cover (AYP part number) PLN-532086012
...
39
Wheel Bushing (AYP part number) PLN-532088446
...
xx
Drive Cover Decal Not Shown. PLN-532701178
...
xx
Grass Catcher (AYP part number) PLN-GCK2200
...
xx
Mulcher Kit (AYP part number) PLN-MK1000

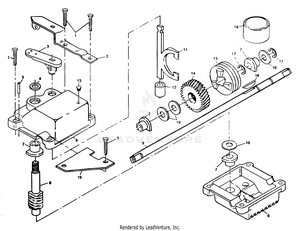

GEARCASE ASSEMBLY

...
...
1
Screw, Tapping 1/4-20 x 1-1/4 (AYP part number) PLN-817490416
...
2
Bracket, Adjusting (AYP part number) PLN-532137055
...
3
Shifter (AYP part number) PLN-532137053
...
4
Seal PLN-532057072
...
5
Pin, Grooved 1/8 x 1/2 (AYP part number) PLN-532057388
...
6
Gear Case Halves, Upper and Lower (AYP part number) (Includes Key #4, 5 and 7) PLN-532048281
...
7
Bearing PLN-532707881
...
8
SHAFT GEAR WORM PLN-532183863
...
9
Drive Shaft (AYP part number) PLN-532137077
...
10
Washer, Hardened (AYP part number) PLN-532057079
...
11
Yoke, Clutch (AYP part number) PLN-532131484
...
12
Bushing (AYP part number) PLN-532700343
...
13
Plug (AYP part number) PLN-532086447
...
14
Gear, Helical (AYP part number) PLN-532137050
...
15
Jaw, Clutch (AYP part number) PLN-532750436
...
16
Grease (AYP part number) PLN-532750355
...
17
E-Ring PLN-812000003
...
18
Key, Hi-Pro (AYP part number) PLN-532850848
...
19
Spring Bracket (AYP part number) PLN-532125441

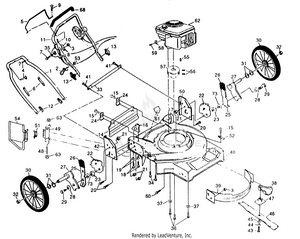

MOWER HOUSING, ENGINE B/S 124802

...
...
1
Lower Handle (AYP part number) PLN-532125377
...
2
GUIDE.ROPE.STD.BLK.ZIN PLN-532194788
...
3
NUT 1/4-20 NYLOC PLN-539976978
...
4
KNOB.HANDLE.KIT.SERVICE PLN-532183724
...
5
Control Bar (AYP part number) PLN-532851660
...
6
WIRE TIE PLN-532007192
...
7
Machine Screw 1/4-20 x 2-1/4 (AYP part number) PLN-532086055
...
8
Throttle Control PLN-532700417
...
9
Pan Head Hi/Lo Screw #10-16 x .63 (AYP part number) PLN-532851552
...
10
Engine Zone Cable PLN-532130861
...
11
Upper Handle (AYP part number) PLN-532125271
...
12
Hairpin Cotter (AYP part number) PLN-532051793
...
13
KNOB.HANDLE.KIT.SERVICE PLN-532183724
...
14
Rear Skirt (AYP part number) PLN-532140539
...
15
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008
...
16
Handle Bracket Assembly (Right) (AYP part number) PLN-532139532
...
17
Handle Bracket Assembly (Left) (AYP part number) PLN-532139533
...
18
Screw 5/16-18 x 3/4 (AYP part number) PLN-532055187
...
19
Washer (AYP part number) PLN-532059289
...
20
Bolt, Hex Head 3/8-16 x 3/4 (AYP part number) PLN-874760612
...
21
LOCKNUT PLN-873680600
...
22
Wheel Adjusting Bracket (AYP part number) PLN-532139901
...
23
Spacer (AYP part number) PLN-532084920
...
24
Skirt Bracket (AYP part number) PLN-532125207
...
25
Selector Spring (AYP part number) PLN-532125168
...
26
SELECTOR KNOB PLN-532701037
...
27
Axle Arm Assembly (AYP part number) PLN-532125373
...
28
WASHER.CURVED.CYLINDRICAL PLN-532401630
...
29
BOLT SHOULDER 3/8 -16X1 PLN-532174719
...
30
Wheel & Tire Assembly (Rear) (AYP part number) PLN-532107620
...
31
KIT.O-RING/WASHER PLN-532428450
...
32
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409148
...
33
Rod Support (AYP part number) PLN-532850709
...
34
SCREW 1/4X20 PLN-817600406
...
35
Flat Washer (AYP part number) PLN-532085723
...
36
BOLT 3/8-16X1-1/8 PLN-532150406
...
37
Engine Washer (AYP part number) PLN-532125078
...
38
KIT.SHIELD.DEBRIS.21.RWGD.EZ PLN-532048283
...
39
Front Baffle PLN-532132352
...
40
Mower Housing Kit (Inc. 61) PLN-532702178
...
41
Screw (AYP part number) PLN-532054583
...
42
Wheel Support Bracket R.H. (AYP part number) PLN-532125365
...
43
Hex Head Screw 3/8-24 x 1-3/8 Gr. 8 PLN-532851084
...
44
SLW 3/8 STD PLN-539990118
...
45
Hardened Washer (AYP part number) PLN-532851074
...
46
BLADE.22.MULCH.STANDARD PLN-532406713
...
47
ADAPTOR.BLADE.7/8 PLN-581547901
...
48
Hinge Rod (AYP part number) PLN-532147286
...
49
Housing Bracket (AYP part number) PLN-532125175
...
50
Wheel Support Bracket L.H. (AYP part number) PLN-532125363
...
51
SPRING.SIDE.DISCHARGE PLN-532411832
...
52
Guide Clip (AYP part number) PLN-532087930
...
53
NUT.CROWNLOCK.1/4 PLN-873680400
...
54
Discharge Guard PLN-532851750
...
55
Hi-Pro Key (AYP part number) PLN-532087677
...
56
Set Screw (AYP part number) PLN-532059708
...
57
Engine Pulley (AYP part number) PLN-532084596
...
58
WASHER.ENGINE.BZP These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532125078
...
59
Screw #10 x 5/8 (AYP part number) PLN-532083816
...
60
Screw (AYP part number) PLN-874100412
...
61
DECAL.CUTFINGER.CE.02 PLN-581579101
...
63
Push Nut (AYP part number) PLN-532083731
...
68
Handle Grip (AYP part number) PLN-532850724
...
73
Flat Washer 3/8 (AYP part number) PLN-532088348
...
xx
Rear Baffle (AYP part number) Not Shown. PLN-532125033
...
xx
Operator's Manual (English) (AYP part number) Not Shown. PLN-532700480
...
xx
Operator's Manual (French) (AYP part number) Not Shown. PLN-532701435
...
xx
Repair Part's Manual Not Shown. PLN-532702175
...
...
...
