product name

Poulan Pro PP735SK Mower

Model: PP735SK Mower

Save
 Part Not Listed?Part Not Listed?

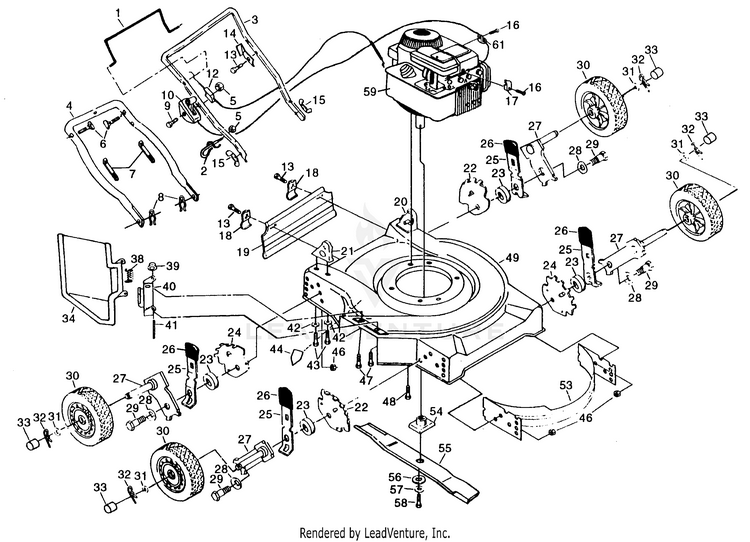

product name

MOWER HOUSING, ENGINE B/S 95902

...
...
1
Control Bar (AYP part number) PLN-532086902
...
2
GUIDE.ROPE.STD.BLK.ZIN PLN-532194788
...
3
UPPER HANDLE PLN-532125338
...
4
HANDLE.LOWER.BLACK PLN-532157081
...
5
NUT 1/4-20 NYLOC PLN-539976978
...
6
KNOB.HANDLE.KIT.SERVICE PLN-532183724
...
7
WIRE TIE PLN-532007192
...
8
Hairpin Cotter (AYP part number) PLN-532051793
...
9
SCREW.PAN.HEAD PLN-532158755
...
10
Throttle Control (AYP part number) PLN-532851463
...
12
Engine Zone Control Cable PLN-532130861
...
13
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008
...
14
BRACKET.UPSTOP PLN-532850733
...
15
Wing Nut (AYP part number) PLN-532128638
...
16
Screw #10 x 5/8 (AYP part number) PLN-532083816
...
17
WASHER.ENGINE.BZP These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532125078
...
18
Skirt Bracket (AYP part number) PLN-532125207
...
19
SKIRT.20RD/SD.FO/VE.BO WHEELS PLN-532189009
...
20
Handle Bracket Assembly (Left) (AYP part number) PLN-532140466
...
21
Handle Bracket Assembly (Right) (AYP part number) PLN-532140465
...
22
Wheel Adjusting Bracket LR/RF PLN-532133436
...
23
Height Adjuster Spacer (AYP part number) PLN-532084920
...
24
Wheel Adjusting Bracket RR/LF PLN-532133437
...
25
Selector Spring (AYP part number) PLN-532141730
...
26
Selector Knob (AYP part number) PLN-532087877
...
27
ARM.ASM.AXLE. PLN-532187930
...
28
Belleville Washer (AYP part number) PLN-532062335
...
29
BOLT SHOULDER 3/8 -16X1 PLN-532174719
...
30
WHEEL.7.5X1.5.PR.SP PLN-532700263
...
31
Washer 17/32 x 1 x 21 Ga. (AYP part number) PLN-532052160
...
32
Retainer Clip (AYP part number) PLN-532085179
...
33
Hubcap (AYP part number) PLN-532800090
...
34
Discharge Guard PLN-532851750
...
38
SPRING.SIDE.DISCHARGE PLN-532411832
...
39
Push On Speed Nut (AYP part number) PLN-532083731
...
40
Deflector Hinge (AYP part number) PLN-532125175
...
41
Hinge Rod (AYP part number) PLN-532147286
...
42
Flat Washer (AYP part number) PLN-532059289
...
43
Screw 5/16-18 x 3/4 (AYP part number) PLN-532055187
...
44
DECAL.CUTFINGER.CE.02 PLN-581579101
...
46
LOCKNUT PLN-873680600
...
47
SCREW 1/4X20 PLN-817600406
...
48
BOLT 3/8-16X1-1/8 PLN-532150406
...
49
Mower Housing (Incl. Ref. #44) PLN-532134512
...
53
Front Baffle (AYP part number) PLN-532125302
...
54
ADAPTOR.BLADE.7/8 PLN-581547901
...
55
20" Blade (AYP part number) PLN-532145106
...
56
Hardened Washer (AYP part number) PLN-532851074
...
57
SLW 3/8 STD PLN-539990118
...
58
Hex Head Screw 3/8-24 x 1-3/8 (Grd. 8) PLN-532851084
...
61
Guide Clip (AYP part number) PLN-532087930
...
xx
Operator's Manual (AYP part number) Not Shown. PLN-532145653
...
xx
Replacement Parts Manual Not Shown. PLN-532146727
...
xx
Grass Catcher (AYP part number) PLN-GCK2200
...
...
...
