Poulan Pro PP452 Gas Blower

Model: PP452 Gas Blower, 452 Gas Blower

Save
 Part Not Listed?Part Not Listed?
product name

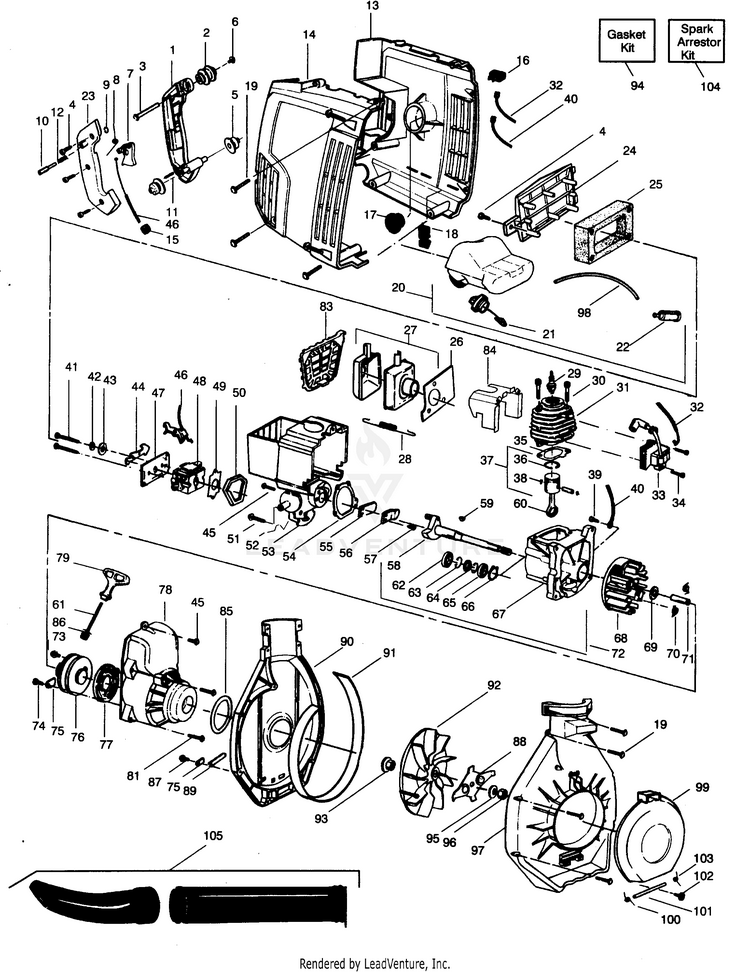

ASSEMBLY

...
...
1
Handle Kit PLN-530069863
...
2
Front Isolator PLN-530026994
...
3
Spacer PLN-530029111
...
4
Screw-Handle PLN-530015635
...
5
Rear Isolator PLN-530029130
...
6
Screw PLN-530015813
...
7
Trigger PLN-530029072
...
8
Spring PLN-530027597
...
9
"C" Clip PLN-530015702
...
10
Throttle Lock Button PLN-530029117
...
11
Pin PLN-530015840
...
12
Spring-Throttle Lock PLN-530024772
...
13
Shroud-Left PLN-530037861
...
14
Shroud-Right PLN-530037860
...
15
Grommet-Carb. PLN-530019168
...
16
Switch Kit PLN-530069764
...
17
Isolator-Engine Mount PLN-530029129
...
18
Isolator-Tank PLN-530029295
...
19
Screw-Shroud/Blower Hsg. PLN-530015814
...
20
Fuel Tank Ass'y. PLN-530014263
...
21
Fuel Cap (Incl. O'Ring) PLN-530014347
...
22
Assy-Fuel Pickup PLN-530095646
...
23
Handle Cover/Throttle Lock Ass'y. (Incl. 9, 10 & 12) PLN-530014160
...
24
Cover-Air Filter PLN-530037856
...
25
Air Filter PLN-530029112
...
26
Shield PLN-530058957
...
27
Muffler PLN-530069293
...
28
Spring PLN-530029116
...
29
Spark Plug PLN-530030075
...
30
Screw PLN-530015239
...
31
Cylinder PLN-530069626
...
32
Lead Wire PLN-530029425
...
33
Ignition Module PLN-530039137
...
34
Screw PLN-530015816
...
35
GASKET CYL W/ ADHESIVE PLN-530019267
...
36
Piston Rings PLN-530025875
...
37
Piston Kit (Incl. 36, 38, & Pin) PLN-530069349
...
38
Retainer PLN-530015162
...
39
Screw PLN-530015306
...
40
Ground Wire PLN-530029426
...
41
Screw PLN-530015849
...
42
Wave Washer PLN-530015254
...
43
Spacer-Choke PLN-530015852
...
44
Choke Shutter PLN-530029114
...
45
Screw-Reed PLN-530015771
...
46
Throttle Cable Assembly PLN-530037492
...
47
Plate-Air Filter PLN-530029115
...
48
KIT CARBURETOR ASSY PLN-545081825
...
49
Gasket-Carb PLN-530019164
...
50
Seal-Reed Block PLN-530019165
...
51
Screw PLN-530015775
...
52
Ground Wire-Static PLN-530029113
...
53
Reed Block PLN-530047696
...
54
Gasket-Reed Block PLN-530019166
...
55
Reed Valve PLN-530027593
...
56
Reed Stop PLN-530027594
...
57
SCREW 6-19X.437 PLN-545227101
...
58
Crankshaft PLN-530047669
...
59
Key PLN-530015126
...
60
Connecting Rod Ass'y. PLN-530010960
...
61
Rope Kit PLN-530069232
...
62
Inner Bearing PLN-530032103
...
63
Retaining Ring-Crankcase PLN-530015787
...
64
Crankshaft Seal PLN-530019158
...
65
Outer Bearing PLN-530032102
...
66
Retaining Ring-Crankshaft PLN-530015789
...
67
Crankcase Ass'y (Incl. 62-65) PLN-530014016
...
68
Flywheel Ass'y. (Incl. 70) PLN-530039189
...
69
Washer PLN-530016030
...
70
Spring PLN-530023817
...
71
Spacer-Flywheel PLN-530047701
...
72
Crankcase/Crankshaft Assy. (Incl. 58, 62-67) PLN-530047705
...
73
Screw PLN-530016080
...
74
Screw PLN-530015496
...
75
Retainer PLN-530027523
...
76
Starter Pulley (Incl. 73) PLN-530069486
...
77
STARTER SPRING PLN-545008010
...
78
Fan Housing Kit (Incl. 61, 71, 73-76, 79 & 86) PLN-530069714
...
79
Starter Handle PLN-530027569
...
81
Screw PLN-530015769
...
82
Hex Wrench (5/32) PLN-530031159
...
83
Muffler Guard Kit (Incl. 82) PLN-530069692
...
84
Air Baffle PLN-530029404
...
85
"O" Ring PLN-530019167
...
86
Eyelet PLN-530029182
...
87
Screw PLN-530015805
...
88
Mulch Blade PLN-530095355
...
89
Roll Pin PLN-530029119
...
90
Blower Housing (Upper) PLN-530094710
...
91
Band PLN-530029173
...
92
Impeller (Incl. 93) PLN-530047702
...
93
ASSY-IMPELLER PLN-530047077
...
94
Gasket Kit PLN-530069294
...
95
Washer PLN-530015441
...
96
Nut PLN-530001733
...
97
Blower Housing (Lower) (Incl. 99-103) PLN-530047736
...
98
Line Kit PLN-530069247
...
99
Door-Inlet PLN-530047700
...
100
Spring-Right PLN-530015667
...
101
Pin PLN-530015647
...
102
Screw PLN-530015815
...
103
Spring-Left PLN-530015672
...
104
Spark Arrestor Kit PLN-530069348
...
105
Ass'y-Tube and Nozzle PLN-530038508
...
0
Operators Manual Not Shown. PLN-530084019
...
0
Decal-Blower Warning 530047885 Not Shown. PLN-530047885
...
0
Decal-Instruction Not Shown. PLN-530047446

CARBURETOR WT-141A

...
...
1
Carburetor Repair Kit (DOT Indicates Contents on illus.) PLN-530069725
...
2
Limiter Cap PLN-530038403

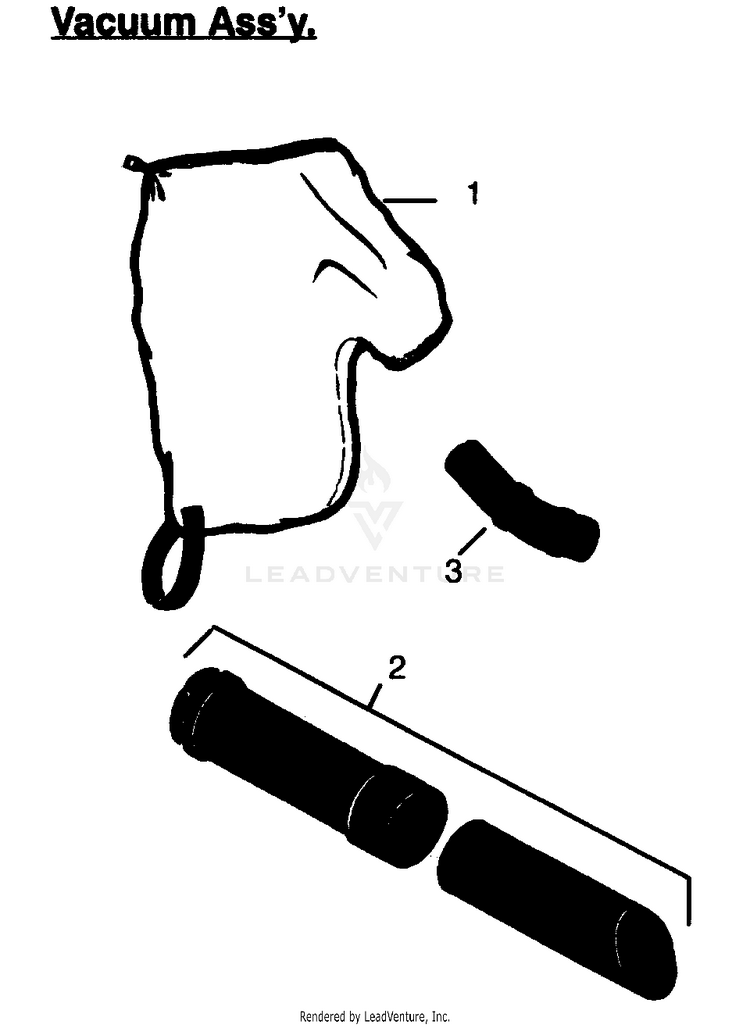

VACUUM ASSEMBLY

...
...
1
Collection Bag PLN-530095358
...
2
Vacuum Tubes PLN-530069270
...
3
Vacuum Elbow PLN-530095117
...
...
...
