product name

Poulan Pro PP3516AVX Gas Saw, 3516AVX

Model: PP3516AVX Gas Saw, 3516AVX - Poulan Pro

Save
 Part Not Listed?Part Not Listed?
product name

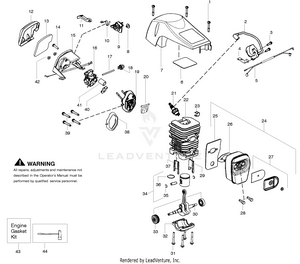

Engine

...
...
1
Screw PLN-530016153
...
2
Module-Ignition PLN-545115801
...
3
Screw PLN-530016432
...
4
Strap-Ground PLN-530058661
...
5
Assy-Wire Harness PLN-530057943
...
6
Reflector-Tape PLN-530055698
...
7
Shield-Cylinder (Incl.1,6) PLN-530057872
...
8
Screw PLN-530016080
...
9
Lever-Ignition Switch PLN-530057891
...
10
Spring-Ignition Switch PLN-530057908
...
11
Knob-Choke PLN-530059399
...
12
Cover-Air Filter PLN-530059001
...
13
Filter-Air PLN-530057869
...
14
Screw PLN-530016425
...
15
Housing-Air Filter w/cable PLN-545046901
...
16
Carburetor, Zama W26B (Incl. 18) PLN-545070601
...
17
Kit-Fuel Line (Small) PLN-530069247
...
18
Bulb-Purge "snap-in" PLN-530047721
...
19
Kit-Carb. Adaptor ( Incl. # 20,38,41) PLN-530071889
...
20
Gasket-cyl. (kit) PLN-530071894
...
21
BPMR7A NGK SPARK PLUG PLN-503235111
...
22
Kit-Cylinder (Incl. 29,37) PLN-530071884
...
23
Clip-High Tension Lead PLN-530058660
...
24
Kit-Muffler (Incl. 25,26,27,28) PLN-545006007
...
25
Backplate-Muffler PLN-530057942
...
26
Gasket-Muffler (kit) PLN-530071894
...
27
Kit-Spark Arrestor PLN-545006056
...
28
Bolt-Muffler PLN-530016338
...
29
Insert-Left (black) Cyl. PLN-545015301
...
30
Assy-Crankshaft/Rod PLN-545112901
...
31
Bolt PLN-530016417
...
32
Cap-Crankcase PLN-530057941
...
33
Assy-Bearing/Seal PLN-530056363
...
34
Kit-Piston (Incl. 35,36) PLN-530071883
...
35
Retainer-Piston Pin PLN-530015697
...
36
Ring-Piston PLN-545160401
...
37
Insert-Right (gray)Cyl. PLN-545015401
...
38
Seal-Adaptor (kit) PLN-530071894
...
39
Screw PLN-530016426
...
40
Gasket-Carb. (kit) PLN-530071894
...
41
Tube-Intake PLN-530057926
...
42
Nut-Carb. PLN-530016101
...
43
Kit-Gasket (Incl . 20,26,38,40) PLN-530071894
...
44
Bar Wrench PLN-530031163
...
44
Manual-Operator Not Shown PLN-545186807
...
44
Decal-Warning Not Shown PLN-530059905

Housing

...
...
1
Kit-Trigger/Lockout PLN-530071927
...
2
Cover-Handle PLN-545011903
...
3
Screw PLN-530016433
...
4
Fitting-Fuel line PLN-530023877
...
5
Kit-Fuel Line (Large) PLN-530069216
...
6
Kit-Fuel Line (Small) PLN-530069247
...
7
Assy-Fuel Pickup PLN-530095646
...
8
Handle-Rear PLN-545012103
...
9
Spring-Rear Isolator PLN-530059475
...
10
Kit-Clutch Washer PLN-530071945
...
11
Assy-Clutch Drum 3/8" PLN-530057905
...
12
Kit-Clutch Washer PLN-530071945
...
13
Assy-Clutch PLN-530057907
...
14
Washer-Large Clutch PLN-530016419
...
15
Screw PLN-530015906
...
16
FUEL CAP ASSY PLN-580940901
...
17
SCREW 6-19X.437 PLN-545227101
...
18
Nut-"U" type speed PLN-530015922
...
19
Assy-Flywheel PLN-545016308
...
20
Shield-Heat PLN-530057911
...
21
Washer-Flywheel PLN-530015127
...
22
Nut-Flywheel PLN-530016134
...
23
Screw-Shoulder PLN-530021179
...
24
Starter Hub-EPS PLN-530059677
...
25
Spring-EPS PLN-530021180
...
26
Kit- EPS Starter Pulley (Incl. 23,24,25, 32) PLN-530071966
...
27
Housing-Fan PLN-545011703
...
28
Handle-Starter PLN-530056402
...
29
Kit-Rope PLN-530069232
...
30
Screw PLN-530016432
...
31
Kit-Starter Spring PLN-545008013
...
32
Screw PLN-530016080
...
33
Baffle PLN-530057868
...
34
Assy-Oil Vent PLN-530058786
...
35
Assy-Oil Cap w/ret. PLN-530057236
...
36
Handguard PLN-530057880
...
37
Spring-Handguard PLN-530016416
...
38
ASSY CHASSIS BLACK W/RET (Incl. 4,5,6,7,9,15,16,17,18, 20,34,35,37,41,57) PLN-545011813
...
39
Kit-Chainbrake PLN-530071893
...
40
Screw PLN-530016432
...
41
Bolt-Bar PLN-530016133
...
42
Plate-Bar PLN-530057910
...
43
SCREW 6-19X.437 PLN-545227101
...
44
Cover-Gearbox PLN-530059999
...
45
ASSY THUMB WHEEL BLACK PLN-525884202
...
46
Assy-Knob PLN-545040603
...
47
Clutch Cover PLN-545027703
...
48
Assy-Adjust Screw PLN-530150000
...
49
Pin-Bar Adjust PLN-545157401
...
50
Clip-Spring PLN-545147001
...
51
ACCY P/PP CHN 16" 56DL 3/8 PLN-581562201
...
52
16" Bar PLN-530044692
...
53
Screw PLN-530016432
...
54
Screw PLN-530016443
...
55
Assy-Rear Iso. Spring PLN-530059480
...
56
Screw PLN-530015906
...
57
Assy-Front Iso. Spring PLN-530059479
...
58
Handle-Front PLN-530057878
...
59
Screw PLN-530016432
...
60
Kit-Clutch Washer (Incl. 10,12) PLN-530071945
...
61
Assy-Oil Pick Up PLN-530057924
...
62
Kit-Oil Pump (Incl. 63,64,65) PLN-530071891
...
63
SCREW 6-19X.437 PLN-545227101
...
64
OIL PUMP ASSY SAS PLN-581071401
...
65
Gear-Worm PLN-530037820
...
...
...
