product name

Poulan Pro PP338PT Gas Trimmer

Model: PP338PT Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

*Attachments

...
...
1
Clamp - Harness Upper PLN-530057986
...
2
TUBE (Incl. 7) PLN-576472801
...
3
Clamp - Harness Lower PLN-530057987
...
4
Screw PLN-530015940
...
5
Flexshaft - Lower PLN-530096218
...
6
Assy. - Lower Shaft PLN-574305301
...
7
Screw (12-24 x .480) PLN-530016344
...
8
Shoulder Strap PLN-530094417
...
8
Hanger-Att.(90 deg.) Not Shown PLN-530150031
...
8
Wrench-hex (5/32) Not Shown PLN-530031159

Cutting Equipment

...
...
1
Kit - Sprocket Assy. (Incl. 2,3,4) PLN-530071647
...
2
Washer PLN-530056521
...
3
Sprocket PLN-530056520
...
4
Retainer - Sprocket PLN-530056563
...
5
Assy - Bar Clamp (Incl. 7) PLN-530057100
...
6
Nut - Bar Mounting PLN-530015917
...
7
Kit - Bar Adjust (Incl. 8,9) PLN-530069611
...
8
Pin - Bar Adjust PLN-530015826
...
9
Retainer - Bar Adjust PLN-530038593
...
10
Chain - 8" PLN-530051524
...
11
Bar - 8" PLN-530044908
...
12
Plate - Bar Pad PLN-530056523
...
13
Bolt - Bar PLN-530016133
...
14
Housing - Upper (Incl. 13) PLN-530056513
...
15
Nut PLN-530016284
...
16
Kit - Gear Assy. PLN-530071646
...
17
Housing - Lower PLN-530056514
...
18
Screw (10-24) PLN-530016312
...
19
Screw - Alignment (10-14 x 1/2") PLN-530015805
...
20
Screw (10-14 x 13/16") PLN-530015886
...
21
Kit - Oil Assy (Incl. 22,23,24,26) PLN-530071645
...
22
Assy. - Gear Plunger PLN-530053764
...
23
Barrel PLN-530053765
...
24
Assy- Oil Block (Incl. 23) PLN-530057347
...
25
ASSY OIL TANK (Incl. 26,27,28,29,30) PLN-530150266
...
26
Fitting - Oil Line PLN-530056524
...
27
Intake - Oil Line PLN-530021160
...
28
Filter-Oil PLN-530056533
...
29
CAP OIL PLN-530150552
...
30
Filter-Oil PLN-530056533
...
31
Screw (10-24 x 7/8") PLN-530015843
...
32
Wrench - Bar PLN-530031163

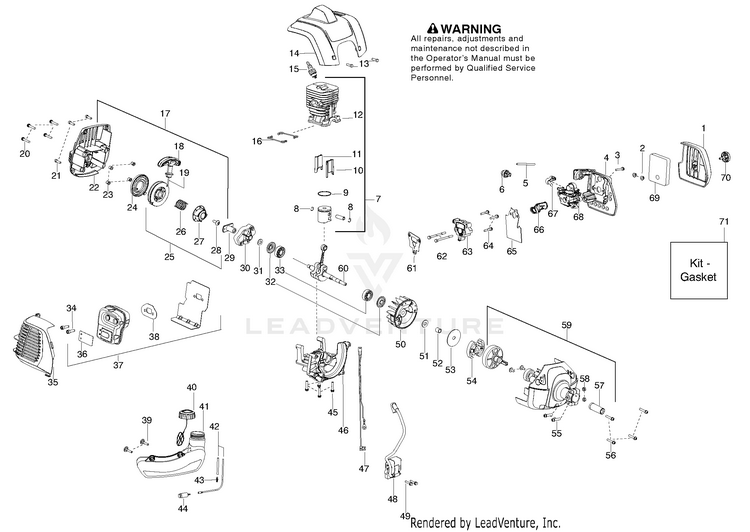

Engine

...
...
1
Cover-Airbox PLN-545177001
...
2
Nut-Carb. Screw PLN-530016101
...
3
Screw 8-32 PLN-530016301
...
4
Base-Airbox PLN-545176901
...
6
Purge Bulb PLN-530047721
...
7
Kit-Piston/Cyl. (Incl. 8,9,10,11,12) PLN-545008046
...
8
Retainer-Piston pin PLN-545194801
...
9
Ring-Piston PLN-545194601
...
10
Insert-Front Transfer Port PLN-545194901
...
11
Insert-Rear Transfer Port PLN-545195001
...
12
Cylinder-Machined PLN-545181801
...
13
Screw M4 x1.75 x 16mm PLN-530016449
...
14
Cover-Top PLN-545156401
...
15
Spark Plug (RCJ- 6Y) PLN-952030249
...
16
Seal-Cylinder(Kit) PLN-545008044
...
17
Assy-Shroud Rear (Incl. 18,19,22,23,24,25) PLN-545190701
...
18
Handle-Starter PLN-545208401
...
19
Kit-Rope PLN-545029901
...
20
Screw M4 x .8 x 25mm PLN-530015897
...
21
Screw M4 x 1.75 x 16mm PLN-530016449
...
22
Housing-Starter w/eyelet PLN-545190601
...
23
Spacer PLN-545185301
...
24
Kit-Starter Spring PLN-545008013
...
25
Kit-Pulley (Incl 26,27,28) PLN-545008049
...
26
Spring-Starter Hub PLN-545188301
...
27
Hub-Starter PLN-545188001
...
28
Screw M6 PLN-545112801
...
29
Coupling-Starter PLN-545188201
...
30
Assy-Starter Cup PLN-545188701
...
31
Washer-Flat PLN-530015828
...
32
Seal-Crankshaft (kit) PLN-545008044
...
33
Bearing-Crankshaft PLN-545013401
...
34
Bolt-Muffler PLN-530058982
...
35
Guard-Muffler PLN-545156301
...
36
SPARK ARRESTER PLN-545224001
...
37
Assy-Muffler (Incl. 34,36,38) PLN-545180701
...
38
Gasket-Muffler (kit) PLN-545008044
...
39
Screw-Tank Retainer PLN-530016445
...
40
Assy - Fuel Cap w/retainer PLN-530057973
...
41
ASSY FUEL TANK (Incl. 40,42,43,44) PLN-578942701
...
42
Kit-Fuel line PLN-530069599
...
43
Fitting-Fuel Line PLN-530023877
...
44
Assy-Fuel Pickup PLN-530095646
...
45
Screw-m5x25mm PLN-530015897
...
46
Crankcase PLN-545181901
...
47
Assy-Leadwire PLN-545191601
...
48
Module-Ignition PLN-545189701
...
49
Screw 8-32 PLN-530016357
...
50
Assy-Flywheel PLN-545120401
...
51
Washer PLN-530016463
...
52
Spacer-Flywheel PLN-530057852
...
53
Washer-Clutch PLN-530094189
...
54
Assy-Clutch PLN-530055122
...
55
Screw 10-24 x 1" PLN-530015774
...
56
Screw M5 x 25mm PLN-530015897
...
57
Guide-Clutch Drum PLN-545186401
...
58
Locknut 10-24 PLN-530015768
...
59
Assy-Fan Hsg (Incl.55,57,58) PLN-545190801
...
60
CRANKSHAFT PLN-545194001
...
61
Gasket - Adapter / Cyl.(kit) PLN-545008044
...
62
Bolt M5 x .80 PLN-530016418
...
63
Adaptor-Carburetor PLN-575391501
...
64
Screw .20 x 32 PLN-530016441
...
65
Gasket-Carb./Adapter(kit) PLN-545008044
...
66
Boot-Carb. PLN-545190501
...
67
Lever - Choke PLN-574719701
...
68
CARBURETOR PLN-545189502
...
69
Filter-Air PLN-545195901
...
70
Assy-Airbox Knob PLN-545188801
...
71
Kit - Gasket (Incl. 16,32,38,61,65) PLN-545008044

Shaft & Handle

...
...
1
Assy-Switch Wire PLN-545191801
...
2
Housing-Throttle (RH) PLN-545187602
...
3
Screw M4 x 1.75 PLN-530016449
...
4
Screw 10-14 x 1/2 PLN-530015805
...
5
Spring-Trigger PLN-545190001
...
6
Kit - Trigger (Incl. 5) PLN-545008077
...
7
Bolt - 1/4-20 x 2 PLN-530015786
...
8
Assy - Throttle Cable PLN-545199301
...
9
Housing-Throttle (LH) PLN-545187502
...
10
Kit-Switch PLN-545030601
...
11
Assy - Handle Assist (Incl. 7,12) PLN-530058583
...
12
Nut PLN-530091373
...
13
KIT UPPER SHAFT BLACK (Incl.14) PLN-575260201
...
14
Screw - 12-24 x .480 PLN-530016344
...
15
Kit - Lower Shaft Assy. PLN-530071788
...
16
Kit-Shield (Incl. 17,18,19,20) PLN-530071824
...
17
Limiter-Line PLN-530052287
...
18
Screw - 10-14 x 3/4 PLN-530015814
...
19
Bolt - 1/4-20 x 1-1/4 PLN-530015820
...
20
Nut PLN-530091373
...
21
Housing PLN-537419303
...
22
Adapter PLN-537419901
...
23
Spring PLN-537338801
...
24
Accy - Spool PLN-952711636
...
25
Kit - Cover and Eyelet PLN-545003365
...
26
Knob PLN-537419601
...
27
TNG VII LH/RH .080 (Incl. 21,22,23,24,25,26) PLN-590267601
...
27
Manual Not Shown PLN-115244926
...
27
Decal-Shaft Warning (lower) Not Shown PLN-545209101
...
27
Decal-Shaft Warning (upper) Not Shown PLN-545167716
...
27
Decal-Pole Pruner Warning Not Shown PLN-545003066
...
...
...
