product name

Poulan Pro PP310 Gas Saw

Model: PP310 Gas Saw, 310 Gas Saw

Save
 Part Not Listed?Part Not Listed?
product name

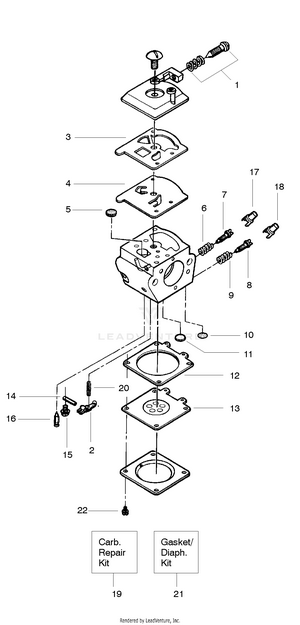

Carburetor Assy.

...
...
530069629
CARBURETOR PLN-545013503
...
1
Idle Adv. Screw Kit PLN-530035296
...
2
Metering Lever PLN-505520127
...
3
GASKET PLN-504130906
...
4
PUMP DIAPHRAGM PLN-504130807
...
5
Screen PLN-501666101
...
6
Needle Spring (Low Speed) PLN-530035293
...
7
Low Speed Needle WT-239 PLN-530035281
...
7
Low Speed Needle WT-289 PLN-530035383
...
8
High Speed Needle WT-202 PLN-530037294
...
8
High Speed Needle WT-239 PLN-530037259
...
8
High Speed Needle WT-289 PLN-530035384
...
9
Needle Spring (High Speed) PLN-530035295
...
10
Welch Plug (5/16) PLN-530035162
...
11
Cup Plug PLN-530035225
...
12
Metering Diaphragm Gasket PLN-530035225
...
13
DIAPHRAGM PLN-503896701
...
14
Pin PLN-505520125
...
15
Metering Lever Pin Screw PLN-530035016
...
16
Needle PLN-503117001
...
17
Limiter Cap High WT-289 only PLN-530038318
...
18
Limiter Cap Low WT-289 only PLN-530038317
...
19
Carburetor Repair Kit Walbro (WT324) (Incl. 3-5 & 10-18) PLN-530069826
...
20
Metering Lever Spring PLN-530035188
...
21
Gasket Diaphragm Kit (Incl. 3, 4, 12 & 13) PLN-530069844
...
21
Metering Cover Screw Ass'y Not Shown PLN-530035021
...
21
SERVICE TOOL, CARB Not Shown PLN-540068201
...
21
Limiter Cap Insertion Tool Not Shown PLN-530031161

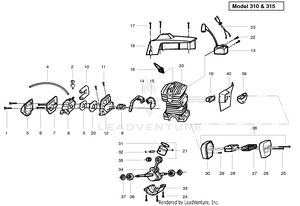

Engine 310, 315

...
...
1
Screw PLN-530015899
...
2
Assy-Fuel Pickup PLN-530095646
...
3
Carburetor Gasket PLN-530019172
...
4
Fuel Line PLN-530069247
...
5
Filter-Air PLN-545057701
...
6
Screw PLN-530015970
...
7
Filter-Air PLN-530059738
...
8
CARBURETOR W-29 PLN-530071987
...
9
Kit-Carb.-Adapter PLN-530071654
...
10
Carb. Grommet PLN-530037464
...
11
Screw-Line Limiter PLN-530015814
...
12
Carb. Adaptor PLN-530053396
...
13
IGNITION MODULE PLN-545199901
...
14
Turbo Clean Seal PLN-530019203
...
15
Turbo Air Cleaner Ass'y. PLN-530029813
...
16
BPMR7A NGK SPARK PLUG PLN-503235111
...
17
Screw PLN-530016154
...
18
Cylinder Shield PLN-530069716
...
19
Heat Insulator PLN-530037652
...
20
Carburetor Plate PLN-530037872
...
21
Piston Kit (Incl. 31, 32 & 35) PLN-530069715
...
22
Screw PLN-530015895
...
23
Switch Wire Ass'y. PLN-530037467
...
24
Screw PLN-530015897
...
25
Muffler Bolt PLN-530016170
...
26
Muffler Cover PLN-530037249
...
27
Spark Screen PLN-530036103
...
28
Diffuser PLN-530049031
...
29
Bolt PLN-530015902
...
30
Muffler Body PLN-530037728
...
31
Piston Ring PLN-530047732
...
32
Piston Pin Retainer PLN-530015697
...
33
C'case&Cylinder Assy PLN-530069717
...
34
ASSY-CRANKSHAFT & ROD PLN-503920801
...
35
Piston Pin Bearing PLN-530032117
...
36
Muffler Kit (Incl. 25,26,28,30) PLN-530069707
...
37
C'shaft Seal PLN-530019170
...
38
C'shaft Bearing PLN-530032118
...
39
Muffler Gasket PLN-530019205
...
40
BACKPLATE MUFFLER PLN-530056256
...
40
Scrench Not Shown PLN-530031163
...
40
Worm Gear Puller Not Shown PLN-530031136
...
40
Clutch Ass'y. Tool Not Shown PLN-530031112
...
40
Kickback Warning Not Shown PLN-530047941
...
40
Decal-Warning Not Shown PLN-530047839

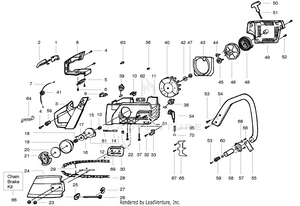

Starter

...
...
1
Throttle Trigger PLN-530036097
...
2
Throttle Lockout PLN-530036098
...
3
Rear Pro Handle PLN-530036087
...
4
Screw PLN-530015937
...
5
Isolator Spring PLN-530038986
...
6
Screw PLN-530015906
...
7
Throttle Cable PLN-530038471
...
8
Handle Cover PLN-530036092
...
9
Ignition Switch PLN-530069572
...
10
Speed Nut PLN-530015922
...
11
Chassis Ass'y. 255,310 PLN-530037551
...
11
Chassis Ass'y. 315 PLN-530037514
...
12
PLUNGER & GEAR ASSY (Incl. 14, 15, & 61) PLN-545036801
...
13
Oil Pump Worm PLN-530029833
...
14
PLUNGER & GEAR ASSY PLN-545036801
...
15
PLUNGER & GEAR ASSY PLN-545036801
...
16
Screw PLN-530015896
...
17
Thrust Washer PLN-530015907
...
18
Clutch Bearing PLN-530032119
...
19
Clutch Drum 255 U.S PLN-530047061
...
19
Clutch Drum 310 & 315 PLN-530069342
...
20
Clutch Washer PLN-530015611
...
21
Clutch Ass'y. PLN-530014949
...
22
OIL HOSE PLN-545037101
...
23
Bar Mounting Nut PLN-530015917
...
25
Bar Adjusting Pin PLN-530015826
...
26
Screw PLN-530016110
...
27
E-Ring PLN-530038593
...
27
Chain 310, 315-16" PLN-952051301
...
27
Chain 310, 315-18" PLN-952051313
...
27
Bar 310-16" PLN-952044577
...
27
Bar 315-18" PLN-952044578
...
30
Bar Plate PLN-530047855
...
31
Bar Bolt PLN-530015877
...
32
Screw PLN-530015937
...
33
Chain Catcher PLN-530029850
...
34
Pickup-Oil PLN-545047801
...
35
Filter-Oil PLN-530056533
...
36
Vent Plug PLN-530029868
...
37
Screw PLN-530016037
...
38
OIL TANK CAP PLN-530057236
...
39
Fuel Cap Ass'y. PLN-530010845
...
39
Flywheel Ass'y. 310 & 315 PLN-530069747
...
42
Washer PLN-530015127
...
42
Baffle Plate 310 & 315 PLN-530047667
...
44
Screw PLN-530016080
...
45
Screw PLN-530015920
...
46
Starter Pulley PLN-530069313
...
47
Nut PLN-530016071
...
48
RETURN SPRING PLN-545008005
...
48
Fan Hsg. Ass'y. Kit 310 PLN-530047743
...
50
Starter Handle PLN-530027569
...
51
Rope Kit PLN-530069232
...
52
Screw PLN-530015892
...
53
Screw PLN-530015984
...
53
ASSY HANDLE BAR PLN-530053955
...
55
Front Strap PLN-530036113
...
56
Plate Screw PLN-530015952
...
57
Isolator Plate PLN-530036101
...
58
Spring Sleeve PLN-530036142
...
59
Isolator Spring PLN-530038985
...
60
Washer PLN-530015123
...
61
PLUNGER & GEAR ASSY PLN-545036801
...
62
Bar Stud Plate PLN-530036043
...
63
Check Valve PLN-530026119
...
64
Choke Lever PLN-530053443
...
65
Spike Ass'y. PLN-530014381
...
66
Chain Brake Ass'y 255, 310 PLN-952069360
...
67
Screw PLN-530015906
...
68
Washer PLN-530015629
...
69
Screw PLN-530015896
...
70
Filter-Oil PLN-530056533
...
...
...
