Poulan Pro PP260LE Gas Saw Type 1

Model: PP260LE Gas Saw Type 1, 260LE Gas Saw Type 1

Save
Part Not Listed?Part Not Listed?
product name

Carburetor Assembly

...
...
xx
Carburetor Assembly -WT599 PLN-530071409

...
1
Limiter Cap-High PLN-530038479

...
2
Limiter Cap-Low PLN-530038478

...
3
Carburetor Repair Kit (indicates contents) PLN-530069826

...
4
Gasket/Diaphragm Kit (KIT=Indicates Contents) PLN-530069844

Carburetor Assembly

...
...
530071619
CARBURETOR KIT W9A PLN-530071619

...
530071820
Kit-Carburetor (Walbro-WT-89) PLN-545081885

...
530071821
Kit-Carburetor (Walbro-WT-89) PLN-545081885

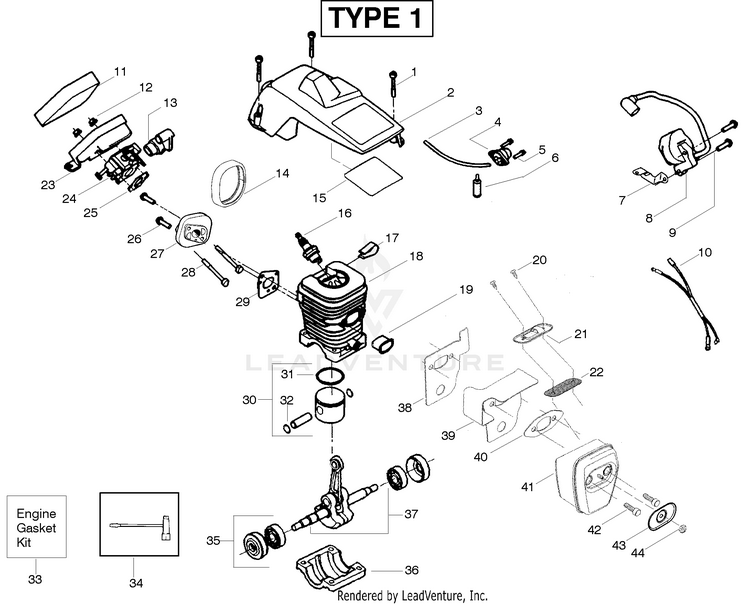

Engine Type 1

...

...
2
Assy-Cylinder Shield (includes # 15) PLN-530055638

...
3
Kit-Fuel Line (Small) PLN-530069247

...
4
Kit-Purge Bulb PLN-530071835


...
6
Assy-Fuel Pick-up PLN-530095646

...
7
Strap-Ground PLN-530047442

...
8
Ignition Module PLN-530039198


...
10
Assy-Wire Harness PLN-530049117

...
11
Foam- Air Filter PLN-530037793


...
13
Grommet-Carb Adjust PLN-530035526

...
14
Seal-Carb Adapter PLN-530054144

...
15
Reflector-Heat PLN-530055698

...
16
BPMR7A NGK SPARK PLUG PLN-503235111

...
17
Clip-High Tension Lead PLN-530016136

...
18

...
19
Insulator-Heat PLN-530037652

...
20
Screw-Outlet cover PLN-530016351

...
21
Cover - Outlet PLN-530055759

...
22
MUFFLER (Incl. 20,21) PLN-530071904

...
23
Air Filter Housing PLN-530047604

...
24
Kit-Carburetor (WT-599) PLN-530071409

...
24
Kit-Carburetor (W-9A) PLN-530071619

...
25
Gasket-Carb. PLN-530069608

...

...
27
Carb. Adapter PLN-530049700

...

...
29
Gasket-Carb Adaptor PLN-530069608

...
30
Kit-Piston (Incl. 31 & 32) PLN-530069719

...
31
Ring-Piston PLN-545160401

...
32
Retainer-Piston Pin PLN-530015697

...
33
Kit-Engine Gasket (Incl. 25, 29 & 40) PLN-530069608

...
34
Bar Wrench PLN-530031163

...
35
Assy-Seal & Bearing PLN-530056363

...
36
Cap-Crankcase PLN-530037935

...
37
CRANKSHAFT ASSY PLN-545113101

...
38
Backplate PLN-530054885

...
39
Guide-Outlet PLN-530054880

...
40
Gasket-Muffler PLN-530069608

...
41
MUFFLER (Incl. 38-40,42) PLN-530071904

...
42
Bolt-Muffler PLN-530016338

...
43
Cover-Bolt PLN-530055586

...
44
NUT 10MM BRASS PLN-574266401

...
44
Operator Manual Not Shown PLN-530163637

...
44
Decal-Warn. Instr. Not Shown PLN-530038257

Service Reference

...
...
530015814

...
530053274

Starter Type 1

...
...

...
2

...

...



...
7
Sleeve-AV Spring PLN-530036142

...


...

...
11
P/PP CHN 18" 62DL 3/8 .050 PLN-581562301

...
12

...
16
Nut-Bar Mounting PLN-530015917

...
17
Assy.-Chain Brake PLN-545139915

...

...
19
Plate-Bar Mounting PLN-530038238

...

...
21
Chain Catcher PLN-530029850

...
22

...
23
OIL TANK CAP PLN-530057236

...
24
Check Valve PLN-530026119

...
25
Plug-Bronze Vent PLN-530038264

...
26
Spring-Starter Dog PLN-530023817

...
27
Nut- Flywheel PLN-530016134

...

...
29
STARTER PULLEY PLN-545034301

...

...
31
Fan Housing PLN-530049335

...
32
Kit - Rope PLN-530069232

...
33
Handle-Starter PLN-530056422

...
34
SPRING STARTER PLN-545008015

...

...
36
Washer- Flywheel PLN-530015127

...
37
FLYWHEEL ASSY PLN-530047534

...
38
Shield - Heat PLN-530055183

...
39
Clip - "U" PLN-530055322

...
40
FUEL CAP ASSY PLN-580940901

...
41
Fitting- fuel line PLN-530023877

...
42
Kit-Fuel line (large) PLN-530069216

...
43
Grommet-Cable PLN-530047631

...
44
Cable-Throttle PLN-530047602

...
45
Cover-Rear Handle PLN-530047581

...

...

...
48
Throttle Lockout PLN-530036098

...
49
Trigger-Throttle PLN-530036097

...
50

...
51
Handle - Rear PLN-530047582

...

...
53

...
54

...

...
56
Kit-Switch PLN-530069572

...
57
Nut- "U"-Type PLN-530015922

...
58
Knob-Choke PLN-530047605

...
59
Grommet-Knob PLN-530049005

...
60
Chassis Ass'y. (Incl. 22-25,40 & frompage2, 3,6) PLN-530047621

...
61
Kit - Oil Pump PLN-530071259

...
62
Gear-Worm Spring PLN-530037820

...
63
Elbow-Oil Pickup PLN-530049477

...
64
SCREW 6-19X.437 PLN-545227101

...
65
Seal Block PLN-530019206

...
66
Oil Pick-up Ass'y (Incl. 67-69) PLN-530047663

...
67
Pick-up Oiler PLN-530038373

...
68
Filter-Oil PLN-530056533

...
69
Filter-Oil PLN-530056533

...
70
Washer-Thrust PLN-530015907

...
71
Assy.-Clutch Drum w/bearing PLN-530047061

...
72
Washer-Clutch PLN-530015611

...
73
Assy. Clutch (incl.74) PLN-530014949

...
74
Clutch Ass'y. PLN-530014949
...
...
...
