Poulan Pro PP235 Gas Saw

Model: PP235 Gas Saw, 235 Gas Saw

Save
 Part Not Listed?Part Not Listed?
product name

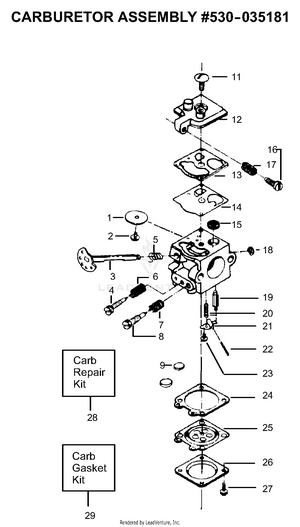

Carburetor Assembly P/N 530035181

...
...
1
Throttle Valve PLN-530035006
...
2
Throttle Valve Screw PLN-530035015
...
3
Throttle Shaft Ass'y. PLN-530035034
...
4
Low Speed Mixture Needle PLN-530035171
...
5
Throttle Return Spring PLN-530035024
...
6
Low Speed Mixture Needle Spring PLN-530035023
...
7
High Speed Mixture Needle Spring PLN-530035167
...
8
High Speed Mixture Needle PLN-530035169
...
9
Plug-5/16 Dia. Welch Incl. in Carb. Repair Kit PLN-530035162
...
11
Pump Cover Screw PLN-530035017
...
12
Fuel Pump Cover PLN-530035159
...
13
GASKET Incl. in Carb. Repair Kit & Carb. Gasket/Diaphragm Kit PLN-504130906
...
14
PUMP DIAPHRAGM Incl. in Carb. Repair Kit & Carb. Gasket/Diaphragm Kit PLN-504130807
...
15
Fuel Inlet Screen Incl. in Carb. Repair Kit PLN-530035027
...
16
Idle Speed Adjusting Screw PLN-530035035
...
17
Idle Speed Adjusting Screw Spring PLN-530035168
...
18
Throttle Retainer Ring PLN-530035007
...
19
Needle Incl. in Carb. Repair Kit PLN-503117001
...
20
Metering Lever Spring Incl. in Carb. Repair Kit PLN-530035188
...
21
Metering Lever Incl. in Carb. Repair Kit PLN-505520127
...
22
Pin Incl. in Carb. Repair Kit PLN-505520125
...
23
Metering Lever Pin Screw Incl. in Carb. Repair Kit PLN-530035016
...
24
Metering Diaphragm Gasket Incl. in Carb. Repair Kit & Carb. Gasket/Diaphragm Kit PLN-530035165
...
25
DIAPHRAGM Incl. in Carb. Repair Kit & Carb. Gasket/Diaphragm Kit PLN-503896701
...
26
Metering Diaphragm Cover PLN-530035003
...
27
Metering Cover Screw Ass'y. PLN-530035021
...
28
Carb. Repair Kit (Includes items 9, 13, 14, 15, 19, 20, 21, 22, 23, 24 & 25) PLN-530035161
...
29
Gasket Diaphragm Kit (Includes items 13, 14, 24 & 25) PLN-530069844
...
530035181
Carburetor Assembly PLN-530069772

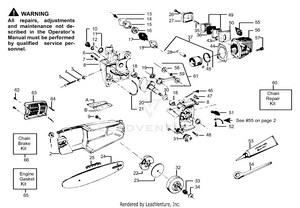

Engine Assembly

...
...
1
BAR NUT PLN-530015251
...
2
Bar Clamp PLN-530029476
...
3
Lock Nut PLN-530015135
...
4
BAR ADJUST PIN PLN-530023492
...
5
Screw PLN-530016115
...
7
Bar Mounting Stud PLN-530015719
...
8
Crankcase Ass'y (Incl. #3-7,10,11 & 18) PLN-530014742
...
9
Screw PLN-530015623
...
10
Check Valve Kit- (Incl. #12) PLN-530069142
...
11
Crankshaft Seal Incl. in Engine Gasket Kit PLN-530019059
...
12
Check Valve Gasket Incl. in Engine Gasket Kit PLN-530019089
...
13
Screw PLN-530015176
...
14
Metering Body Cover PLN-530023802
...
15
Metering Body Gasket Incl. in Engine Gasket Kit PLN-530019091
...
16
Oil Filter Incl. in Engine Gasket Kit PLN-530023801
...
17
Metering Body Ass'y. PLN-530010195
...
18
Crankshaft Bearing PLN-530032029
...
19
Roller Bearing (Incl. 12 bearings) PLN-530032065
...
20
Crankshaft PLN-530022172
...
21
Kit-Fuel Line PLN-530069216
...
22
Clutch Ass'y. Kit (Incl. #23) PLN-530069193
...
23
Clutch Washer Kit (Outside) PLN-530069197
...
24
BAR 14" .050 3/8 041 52DL PLN-952044368
...
24
BAR 14" .050 3/8 041 52DL PLN-952044368
...
24
Guide Bar 16 PLN-952044369
...
25
ACCY CHN 14" 52DL 3/8 .050 PLN-581562101
...
25
ACCY P/PP CHN 16" 56DL 3/8 PLN-581562201
...
26
Screw PLN-530015169
...
27
Muffler Cover PLN-530023795
...
28
Piston Pin Retainer PLN-530023843
...
30
Thrust Washer PLN-530023887
...
31
Oil Cap Ass'y. T1 (w/ retainer) PLN-530010221
...
31
Oil Cap Ass'y. T2 (w/ retainer) PLN-530010444
...
32
Clutch Drum PLN-530069166
...
33
Clutch Bearing PLN-530032079
...
34
Clutch Spacer (Inside) PLN-530023519
...
35
Spacer PLN-530023535
...
36
Spark Arrestor Screen PLN-530023796
...
37
Piston Kit Model 200 & 205 (Incl. #28, 45 & Pin) PLN-530069545
...
37
Piston Kit Model 225 & 235 (Incl. #28, 45 & Pin) PLN-530069552
...
43
Screw PLN-530001666
...
44
Engine Gasket Kit PLN-530069401
...
45
Piston Ring Model 200 & 205 PLN-530025875
...
45
Piston Ring Model 225 & 235 PLN-530027482
...
46
Switch Knob Model 200, 205 & 225 Ass'y. PLN-530023788
...
46
Switch Knob Model 235 Ass'y. PLN-530024236
...
47
Ramp Switch PLN-530023786
...
48
Screw PLN-530015986
...
49
Muffler Baffle PLN-530023797
...
50
Muffler Body PLN-530023794
...
51
Switch Clamp PLN-530023787
...
52
Screw PLN-530015235
...
53
Crankcase Sealant PLN-530030054
...
54
SCRENCH PLN-545006011
...
55
BPMR7A NGK SPARK PLUG PLN-503235111
...
56
Cylinder Model 200 & 205 PLN-530012140
...
56
Cylinder Model 225 & 235 PLN-530012172
...
57
Screw PLN-530015239
...
58
Washer PLN-530015486
...
59
Bearing Rod (Top-Incl. 22 Bearings) PLN-530032075
...
60
Chain Repair Kit PLN-530-052073
...
61
Connecting Rod Ass'y. Kit (Incl. #58 & 59) PLN-530010474
...
62
Screw PLN-530015474
...
63
KIT CARBURETOR ASSY PLN-545081825
...
64
Screw PLN-530015463
...
65
Engine Gasket Kit (Contents Incl. items 11, 12, 15, & 16) PLN-530069401
...
66
Chain Brake Kit PLN-952069320
...
A
Instructions Decal Right Hand PLN-530026918
...
B
Instructions Decal Left Hand PLN-530038552
...
xx
Operator's Manual Not Shown PLN-530067374
...
xx
Repl. Bar & Chain Decal 14" Not Shown PLN-530027927

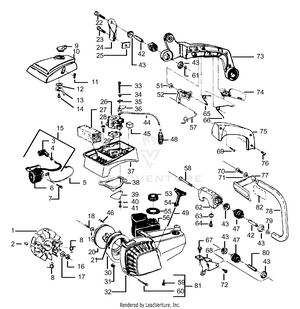

Handle, Flywheel & Fan Housing Assembly

...
...
1
Flywheel Ass'y. (Incl. #8) PLN-530047198
...
2
Flywheel Key PLN-530015126
...
3
Spark Plug Boot PLN-507475326
...
4
Spark Plug Boot PLN-507475326
...
5
Lead Switch PLN-530039116
...
6
Ignition Module (Incl. #5 & 15) PLN-530069202
...
7
Screw PLN-530015816
...
8
Starter Dog Spring PLN-530023817
...
9
Choke Knob PLN-530025691
...
10
Carb. Cover PLN-530025676
...
11
Screw PLN-530015168
...
12
Wave Washer PLN-530015147
...
13
Choke Lever PLN-530023806
...
14
Screw PLN-530015407
...
15
Spark Plug Lead (Incl. #3 & 4) PLN-530039082
...
16
Nut PLN-530626605
...
17
Washer PLN-530015127
...
18
Screw PLN-530016141
...
19
Washer PLN-530015123
...
20
Starter Pulley PLN-530069288
...
21
SPRING-STARTER PLN-545008007
...
22
Screw PLN-530015524
...
23
Screw PLN-530001648
...
24
Upper Isolator Bracket PLN-530025679
...
25
Isolator Pad PLN-530024317
...
26
Carburetor Assembly See "Carburetor Assembly P/N 530035181" PLN-530069772
...
27
Air Filter PLN-530023791
...
28
Screw PLN-530015242
...
29
Carb. Gasket PLN-530019045
...
30
Air Intake Baffle PLN-530038312
...
31
Screw PLN-530001726
...
32
Fan Hsg. Kit (Incl. #68)-See "Service Reference" PLN-530069602
...
33
Screw PLN-530015245
...
34
Spacer PLN-530023865
...
35
Wave Washer PLN-530015254
...
36
Choke Shutter PLN-530023805
...
37
Carb. Hsg. PLN-530036951
...
38
Gasket PLN-530019252
...
39
Reed Valve PLN-530023366
...
40
Washer PLN-530023367
...
41
SCREW 6-19X.437 PLN-545227101
...
42
Spacer PLN-530015342
...
43
Isolator Cup Line PLN-530026163
...
44
Kit (Bulk No.# 8133) PLN-530069216
...
45
Throttle Wire Boot PLN-530023373
...
46
Rope Ret. Screw PLN-530016080
...
47
Isolator PLN-530024256
...
48
Assy-Fuel Pickup PLN-530095646
...
49
Rope Kit PLN-530069232
...
51
Washer PLN-530015528
...
52
Throttle Trigger PLN-530025683
...
53
Fuel Cap Ass'y. (Incl. O-Ring) PLN-530014347
...
54
Handle-Starter PLN-530056402
...
55
Seal PLN-530019093
...
56
Fuel Tank Ass'y. (Incl. #44, 48, 53 & 55) PLN-530010775
...
57
Throttle Wire PLN-530025685
...
58
Screw PLN-530015551
...
59
Screw PLN-530015650
...
61
Locknut PLN-530015515
...
62
Lower Isolator Bracket PLN-530025689
...
63
Washer PLN-530015123
...
64
Screw PLN-530015557
...
65
Spring Trigger PLN-530025686
...
66
Throttle Lock out Lever Spring PLN-530025687
...
67
Bolt PLN-530015426
...
68
Rear Isolator Bracket PLN-530038385
...
69
Screw PLN-530015533
...
70
Screw PLN-530016020
...
71
Washer PLN-530092062
...
72
Screw PLN-530015476
...
73
Rear Handle- Right PLN-530025682
...
74
Throttle Lock out Lever PLN-530025684
...
75
Rear Handle-Left PLN-530025681
...
76
SCREW PLN-534222402
...
77
Handguard PLN-530025451
...
78
Handlebar w/Insert PLN-530025675
...
79
Washer PLN-530015531
...
80
Spacer PLN-530015343
...
81
Fan Hsg. Screws Kit (Incl. #59 & 60, illustration and parts list & #9 on "Engine Assembly") PLN-530069286
...
82
Handguard Decal PLN-530026849

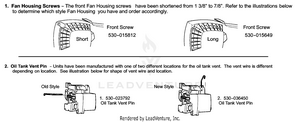

Service Reference

...
...
530015812
SCREW PLN-530015812
...
530023792
VENT PIN PLN-530023792
...
530015649
Screw PLN-530015707
...
530036450
OIL TANK VENT PIN PLN-530036450
...
...
...
