Poulan Pro PP2240A Mower

Model: PP2240A Mower

Save
 Part Not Listed?Part Not Listed?
product name

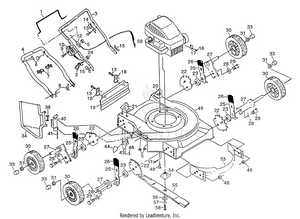

Assembly

...
...
1
Control Bar PLN-86902
...
2
Rope Guide (AYP part number) PLN-132001
...
3
Upper Handle (AYP part number) PLN-145645X479
...
4
Lower Handle PLN-157081X479
...
5
Locknut PLN-63601
...
6
Handle Bolt 5/16-18 x 1-3/4 (AYP part number) PLN-131959
...
7
Cable Clip PLN-151517
...
8
Hairpin Cotter PLN-51793
...
9
Hex Washer Head Screw 1/4-20 x 2-1/8 PLN-144929
...
10
Throttle Control PLN-700644
...
11
Pop Rivet PLN-128415
...
12
Engine Zone Control Cable PLN-130861
...
13
Hex Washer Head Screw #10-24 x 1/2 PLN-750097
...
14
Up-Stop Bracket PLN-850733X004
...
15
Wing Nut PLN-128638
...
16
Screw #10 x 5/8 PLN-83816
...
17
Cable Clamp (AYP part number) These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532111190
...
18
Skirt Bracket (AYP part number) PLN-87584X004
...
19
Rear Deflector (AYP part number) PLN-140540
...
20
Handle Bracket Assembly (Left) (AYP part number) PLN-151667X479
...
21
Handle Bracket Assembly (Right) (AYP part number) PLN-151665X479
...
22
Wheel Adjusting Bracket PLN-750085X007
...
23
Spacer PLN-146630
...
24
Keps Locknut 1/4-20 PLN-63601
...
25
Selector Spring PLN-700331X004
...
26
Selector Knob PLN-87877
...
27
Axle Arm Assembly PLN-145935X004
...
28
Belleville Washer PLN-62335
...
29
Shoulder Bolt PLN-142748
...
30
Wheel & Tire Assembly PLN-752005
...
31
Flanged Locknut PLN-83923
...
33
Hubcap PLN-800090
...
34
Discharge Guard PLN-145282
...
38
Torsion Spring PLN-152186
...
40
Housing Bracket Assembly PLN-147775
...
41
Hinge Rod PLN-147286
...
43
Screw 5/16-18 x 3/4 PLN-149741
...
44
Danger Decal (AYP part number) PLN-107339
...
46
Locknut 3/8-16 (AYP part number) PLN-751592
...
48
Hex Head Thread Rolling Screw 3/8-16 x 1 PLN-150406
...
49
Mower Housing (AYP part number) (Incl. Ref. #44) PLN-702159
...
53
Front & Rear Baffle Rear not shown PLN-700929X479
...
54
Blade Adapter PLN-850977
...
55
Blade 22" PLN-141114
...
56
Hardened Washer PLN-851074
...
57
Helical Lockwasher 3/8 (AYP part number) PLN-850263
...
58
Hex Head Screw 3/8-24 x 1-3/8 (Grd. 8) PLN-851084
...
xx
Operator's Manual (English) PLN-145655
...
xx
Operator's Manual (French) PLN-145656
...
xx
Replacement Parts Manual PLN-159348
...
xx
Grass Catcher (AYP part number) Available accessory - not included with mower. PLN-GCK3200
...
xx
Mulcher Kit (AYP part number) Available accessory - not included with mower. PLN-MK1000
...
...
...
