product name

Poulan Pro PP221 Gas Chain Saw Type 1

Model: PP221 Gas Chain Saw Type 1

Save
Part Not Listed?Part Not Listed?
product name

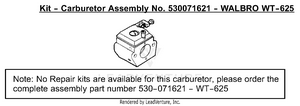

Carburetor Assembly (Walbro WT625) 530071621

...
...
530071621
Carburetor Assembly - WT625 PLN-530071621

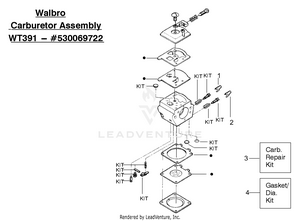

Carburetor Assembly (WT391) 530069722

...
...
1
Limiter Cap-High PLN-530038479

...
2
Limiter Cap-Low PLN-530038478

...
3
Carburetor Repair Kit (KIT=Indicates Contents) PLN-530069826

...
4
Gasket Diaphragm Kit (DOT=Indicates Contents) PLN-530069844

...
530069722
Kit-Carburetor (WT-625) PLN-530071621

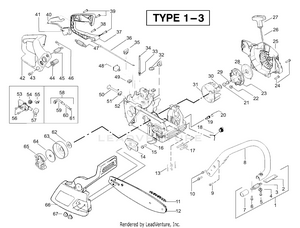

Chassis & Handle Assembly Type 1-3

...
...

...
2

...

...



...
7
Sleeve- AV Spring PLN-530036142

...


...

...
11
ACCY P/PP CHN 16" 56DL 3/8 PLN-581562201


...

...
14
Plate-Bar Mounting PLN-530038238

...

...
16
Chain Catcher PLN-530029850

...
17

...
18
OIL TANK CAP PLN-530057236

...
19
Check Valve PLN-530026119

...
20
Plug- Bronze Vent PLN-530038264

...
21
Nut-Flywheel PLN-530016134

...

...
23
STARTER PULLEY PLN-545034301

...

...
25
Assy-Fan Housing PLN-530049335

...
26

...
27
Handle-Starter PLN-530056422

...
28
SPRING STARTER PLN-545008015

...

...
30
Washer-Flywheel PLN-530015127

...
31
FLYWHEEL ASSY PLN-530047534

...
32
FUEL CAP ASSY PLN-580940901

...
33
Fitting-fuel line PLN-530023877

...
34
Kit-Fuel line (large) PLN-530069216

...
35
Grommet-Cable PLN-530047631

...
36
Cable-Throttle PLN-530047602

...
37
Cover-Rear Handle PLN-530047581

...

...

...
40
Throttle Lockout PLN-530036098

...
41
Trigger-Throttle PLN-530036097

...
42
Handle-Rear PLN-530047582

...

...
44

...
45

...

...
47

...
48
Kit-Switch PLN-530069572

...
49
Nut-"U"-Type PLN-530015922

...
50
Knob-Choke PLN-530047605

...
51
Grommet-Knob PLN-530049005

...
52
Assy-Chassis PLN-530047621

...
53
Kit-Oil Pump (Incl. 54,55,57) PLN-530071259

...
54
Gear-Worm Spring PLN-530037820

...
55
Elbow-Oil Pickup PLN-530049477

...
56
SCREW 6-19X.437 PLN-545227101

...
57
Seal Block PLN-530019206

...
58
Assy-Oil Pickup (Incl. 59-61) PLN-530047663

...
59
Pickup-Oiler PLN-530038373

...
60
Filter-Oil PLN-530056533

...
61
Filter-Oil PLN-530056533

...
62
Washer-Thrust PLN-530015907

...
63
Assy.-Clutch Drum w/bearing PLN-530047061

...
64
Washer-Clutch PLN-530015611

...
65
Assy. Clutch PLN-530014949

...
66
Assy.-Chain Brake PLN-545139915

...
67
Nut-Bar Mounting PLN-530015917

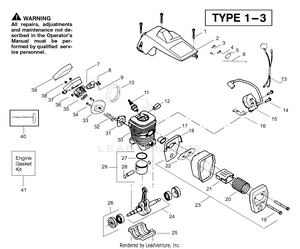

Engine Assembly Type 1-3

...

...
2
Shield-Cylinder PLN-530071310

...
3
Kit-Purge Bulb PLN-530071835


...
5
Assy-Fuel Pick-up PLN-530095646

...
6
Kit-Line Purge/Carb. (Small Dia) PLN-530069247

...
7
Grommet-Carb Adjust. PLN-530049244

...
8
Limiter Cap-High PLN-530038479

...
9
Limiter Cap-Low PLN-530038478

...
10
Seal-Carb Adapter PLN-530054144

...
11
BPMR7A NGK SPARK PLUG PLN-503235111

...
12
Clip-High Tension Lead PLN-530016136

...
13
Assy-Wire Harness (Includes switch) PLN-530049117

...

...
15
Module-Ignition PLN-530039198

...
16
Strap-Ground PLN-530047442

...
17
Insulator-Heat PLN-530037652

...
18
Plate-Muffler Back PLN-530049870

...

...
20
Screen-Spark PLN-530036103

...
21
Muffler Diffuser PLN-530037813

...
22
Muffler Gasket PLN-530019221

...
23
MUFFLER (Incl. 18-22) PLN-530071904

...
24
CRANKSHAFT ASSY PLN-545113101

...
25
Cap-Crankcase PLN-530037935

...
26
Assy-Seal & Bearing PLN-530056363

...
27
Ring-Piston PLN-545160401

...
28
Retainer-Piston Pin PLN-530015697

...
29
Kit-Piston (Incl. 27-28) PLN-530069719

...
30
Kit-Cylinder PLN-530069720

...
31
Gasket-Carb. Adapter PLN-530019249

...

...
33
Adapter-Carb. PLN-530049700

...

...
35

...
36
Kit-Carburetor (WT-625) (Incl. 8,9) PLN-530071621

...
37
Housing-Air Filter PLN-530047604


...
39
Air Filter-Foam PLN-530037793

...
40
Bar Wrench PLN-530031163

...
41
Kit-Engine Gasket (Incl. 22,31,35) PLN-530069608

...
xx
Operator Manual Not Shown PLN-530088312

...
xx
Instruction Decal Not Shown PLN-530038257
...
...
...
