Poulan Pro PP220 Gas Chain Saw Type 4

Model: PP220 Gas Chain Saw Type 4

Save
Part Not Listed?Part Not Listed?
product name

Carburetor Assembly

...
...
xx
Kit-Carburetor (WT-625) PLN-530071621

...
1
Limiter Cap-High (brown) PLN-530038479

...
2
Limiter Cap-Low (tan) PLN-530038478

...
3
Carburetor Repair Kit PLN-530069826

...
4
Gasket/Diaphragm Kit (KIT=Indicates Contents) PLN-530069844

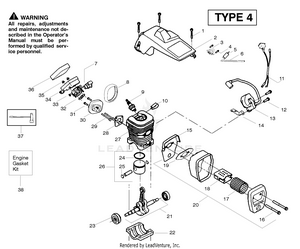

Engine Type 4

...

...
2
Shield-Cylinder PLN-530071310

...
3
Kit-Purge Bulb PLN-530071835


...
5
Assy-Fuel Pick-up PLN-530095646

...
6
Kit-Line Purge/Carb. (Small Dia) PLN-530069247

...
7
Grommet-Carb Adjust. PLN-530035526

...
8
Seal-Carb Adapter PLN-530054144

...
9
BPMR7A NGK SPARK PLUG PLN-503235111

...
10
Clip-High Tension Lead PLN-530016136

...
11
Assy-Wire Harness (includes switch) PLN-530049117

...

...
13
Module-Ignition PLN-530039198

...
14
Strap-Ground PLN-530047442

...
15
Plate-Muffler Back PLN-530049870

...

...
17
Screen-Spark PLN-530036103

...
18
Muffler Diffuser PLN-530037813

...
19
Muffler Gasket PLN-530019221

...
20
MUFFLER (Incl. 15-19) PLN-530071904

...
21
CRANKSHAFT ASSY PLN-545113101

...
22
Cap-Crankcase PLN-530037935

...
23
Assy-Seal & Bearing PLN-530056363

...
24
Ring-Piston PLN-545160401

...
25
Retainer - Piston Pin PLN-530015697

...
26
Kit-Piston (incl. 24,25) PLN-530069719

...
27

...
28
Gasket - Carb. Adapter PLN-530019249

...

...
30
Adapter-Carb. PLN-530049700

...

...
32

...
33
Kit-Carburetor (WT-625) PLN-530071621

...
34
Housing-Air Filter PLN-530047604


...
36
Air Filter - Foam PLN-530037793

...
37
Bar Wrench PLN-530031163

...
38
Kit-Engine Gasket (incl. 19,28,32) PLN-530069608

...
38
Operator Manual Not Shown PLN-530163654

...
38
Instruction Decal Not Shown PLN-530057267

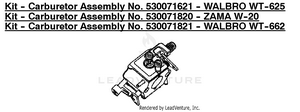

Kit - Carburetor Assembly

...
...
530071621
KIT-CARBURETOR (WT-625) PLN-530071621

...
530071820
Kit-Carburetor (Walbro-WT-89) PLN-545081885

...
530071821
Kit-Carburetor (Walbro-WT-89) PLN-545081885

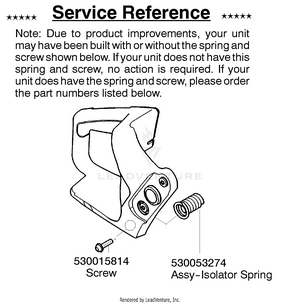

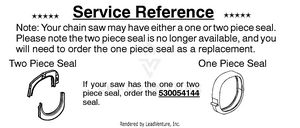

Services Reference

...

No Parts Available for this Schematic

Services Reference

...
...
530015814

...
530053274

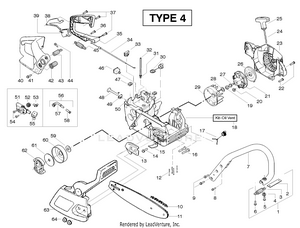

Starter Type 4

...
...

...
2

...

...



...



...
10
ACCY P/PP CHN 16" 56DL 3/8 PLN-581562201

...
11
Bar-16" Quick Adjust PLN-530044864

...

...
13
Plate-Bar Mounting PLN-530038238

...

...
15
Chain Catcher PLN-530029850

...
16

...
17
OIL TANK CAP PLN-530057236

...
18
Kit-Oil Check Valve PLN-530071666

...
19
Nut- Flywheel PLN-530016134

...

...
21
STARTER PULLEY PLN-545034301

...

...
23
Assy-Fan Housing PLN-530049335

...
24
Kit - Rope PLN-530069232

...
25
Handle-Starter PLN-530056422

...
26
SPRING STARTER PLN-545008015

...

...
28
Washer- Flywheel PLN-530015127

...
29
FLYWHEEL ASSY PLN-530047534

...
30
FUEL CAP ASSY PLN-580940901

...
31
Fitting- fuel line PLN-530023877

...
32
Kit-Fuel line (large) PLN-530069216

...
33
Grommet-Cable PLN-530047631

...
34
Cable-Throttle PLN-530047602

...
35
Cover-Rear Handle PLN-530047581

...

...

...
38
Throttle Lockout PLN-530036098

...
39
Trigger-Throttle PLN-530036097

...
40
Handle - Rear PLN-530047582

...

...
42

...
43

...

...
45

...
46
Kit-Switch PLN-530069572

...
47
Nut- "U"-Type PLN-530015922

...
48
Knob-Choke PLN-530047605

...
49
Grommet-Knob PLN-530049005

...
50
Assy-Chassis PLN-530056596

...
51
Kit - Oil Pump (incl. 52,53,55) PLN-530071259

...
52
Gear-Worm Spring PLN-530037820

...
53
Elbow-Oil Pickup PLN-530049477

...
54
SCREW 6-19X.437 PLN-545227101

...
55
Seal Block PLN-530019206

...
56
Assy-Oil Pickup (Incl. 57-58) PLN-530047663

...
57
Pickup-Oiler PLN-530038373

...
58
Filter-Oil PLN-530056533

...
59
Washer-Thrust PLN-530015907

...
60
Assy.-Clutch Drum w/bearing PLN-530047061

...
61
Washer-Clutch PLN-530015611

...
62
Assy. Clutch PLN-530014949

...
63
Assy.-Chain Brake PLN-545139915

...
64
Nut-Bar Mounting PLN-530015917
...
...
...
