product name

Poulan Pro PP210 Gas Saw, 210 Gas Saw

Model: PP210 Gas Saw, 210 Gas Saw

Save
Part Not Listed?Part Not Listed?
product name

Carburetor Assembly (WT-324) P/N 530069703

...
...
1
Limiter Cap-High PLN-530038318

...
2
Limiter Cap-Low PLN-530038317

...
3
Carburetor Repair Kit (KIT= Indicates Contents) PLN-530035399

...
4
Gasket Diaphragm Kit (DOT= Indicates Contents) PLN-530069844

...
5
Needle-Low Speed PLN-530035383

...
6
Needle Spring-Low Speed PLN-530035293

...
7
Needle-High Speed PLN-530035384

...
8
Needle Spring-High Speed PLN-530035295

...
9
Idle Screw/Spring Kit PLN-530035296

...
xx
Kit-Carburetor (Walbro-WT-89) PLN-545081885

Engine Assembly

...
...
1
Bar Wrench PLN-530031163

...
2
Foam-Air Filter PLN-530037793


...
4
Housing- Air Filter PLN-530057480

...
5
Kit-Carburetor (Walbro-WT-89) (Incl. 12 & 13) PLN-545081885

...


...
8
Cylinder Shield (Incl. 9 & 17) PLN-530071310


...

...
11
Cylinder Shield PLN-530037798

...
12
Limiter Cap-High PLN-530038318

...
13
Limiter Cap-Low PLN-530038317

...
14
Grommet-Carb Adjust PLN-530049244

...
15
Kit-Purge Bulb PLN-530071835

...
16
Primer Line Kit (Small Dia) PLN-530069216

...
17
Air Box Seal PLN-530019210

...
18
BPMR7A NGK SPARK PLUG PLN-503235111

...
19

...
20
CYLINDER PLATED PLN-530038749

...
21
Piston Kit (Incl. 22 & 23 PLN-530069701

...
22
Piston Ring PLN-530029805

...
23
Retainer-Piston Pin PLN-530015697

...
24
CRANKSHAFT ASSY PLN-545113101

...
25
Assy - Bearing & Seal PLN-530056363

...
26
Cap-Crankcase PLN-530037935

...
27
Clip-High Tension Lead PLN-530016136

...
28
Screw-Type II PLN-530015780

...
29
Engine Gasket Kit (Incl. 6, 17, 19 & 33) PLN-530069608

...
30
Wire Harness Ass'y. PLN-530047834

...
31
Assy-Fuel Pickup PLN-530095646

...
32
Heat Insulator PLN-530037652

...
33
Muffler Gasket PLN-530019221

...
34
Muffler Back Plate PLN-530038237

...
35
MUFFLER (Incl. 33-34 & 36-38) PLN-530071904

...
36
Muffler Diffuser PLN-530037813

...
37
Spark Arrestor Screen PLN-530036103

...


...
40
Screw-Line Limiter PLN-530015814

...
41
Ground Strap PLN-530047442

...
xx
Operator Manual Not Shown PLN-530083349

...
xx
Instruction Decal Not Shown PLN-530038257

...
xx
Clutch Ass'y. Tool Not Shown PLN-530031112

...
xx
Air Gap Gauge Not Shown PLN-530031097

...
xx
Insert Tool-Limiter Cap Not Shown PLN-530031160

...
xx
Carrying Case Not Shown PLN-530085218

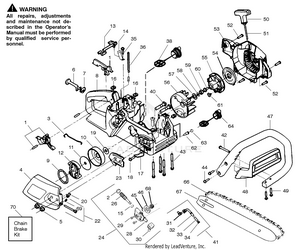

Handle, Chassis & Bar Assembly

...
...
1
Trigger & Lockout Kit (Includes Pin) PLN-530069724

...
3
Wire - Throttle PLN-530037809

...
4
Clutch Cover PLN-530038718

...
5
Nut - Bar Mounting PLN-530015917

...
6
Choke Lever PLN-530047989

...
7

...
8
Chassis Ass'y. PLN-530069802

...
9
Clutch Ass'y. PLN-530014949

...
10
Clutch Drum Ass'y - w/Brg. PLN-530047061

...
11
Washer - Clutch PLN-530015611

...
12
Clutch Ass'y. PLN-530014949

...
13
Switch Lever PLN-530038227

...
14
Switch Spring PLN-530016149

...
15
O-Ring Oiler PLN-530019216


...
17
Chain Catcher PLN-530029850

...
18
Screw-Line Limiter PLN-530015814

...
19
Washer - Thrust PLN-530015907

...
20
ADJUST PIN,BAR 36/41 PLN-530015826

...
22
Bar Adjusting Kit (Incl. 69) PLN-530069611

...
23
Bar Mounting Plate PLN-530038238

...

...
30
Seal Block PLN-530019206

...
31
Fitting - Elbow PLN-530038241

...
32
Pick-Up Tube PLN-530038373

...
33
Filter-Oil PLN-530056533

...
34
Filter-Oil PLN-530056533

...

...
36
Fuel Line Kit (Large Dia.) PLN-530069247

...
38
FUEL CAP ASSY PLN-580940901

...
40
Bolt - Bar PLN-530016133

...
41
Oil-Pickup Ass'y. (Incl. 32, 33 & 34) PLN-530047663

...


...
44
Screw-Line Limiter PLN-530015814

...
45
Pin - Dowel PLN-530016138

...
46
Dust Seal PLN-530019231

...
47
Front Handle PLN-530037799

...
48
Handguard PLN-530038658

...

...
50
Handle-Starter PLN-530056402

...
51

...

...
53
Fan Housing PLN-530049335

...
54
SPRING STARTER PLN-545008015

...
55
STARTER PULLEY PLN-545034301

...
56
FLYWHEEL ASSY PLN-530047534

...
57

...
58
Lockwasher PLN-530001717


...

...

...
62
Check Valve PLN-530026119

...
63
Plug - Oil Vent PLN-530038264

...
64
OIL TANK CAP PLN-530057236

...
66
ACCY CHN 14" 52DL 3/8 .050 PLN-581562101

...
67
BAR 14" .050 3/8 041 52DL PLN-952044368

...
68
Worm Gear Spring PLN-530037820

...
69
Retainer-Bar Adjust PLN-530038593

...
70
Chain Brake Kit PLN-530047514

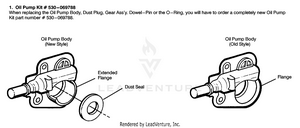

Service Reference

...
...
530069788
Oil Pump Kit PLN-530069788
...
...
...
