Poulan Pro PP131 Gas Trimmer

Model: PP131 Gas Trimmer, 131 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

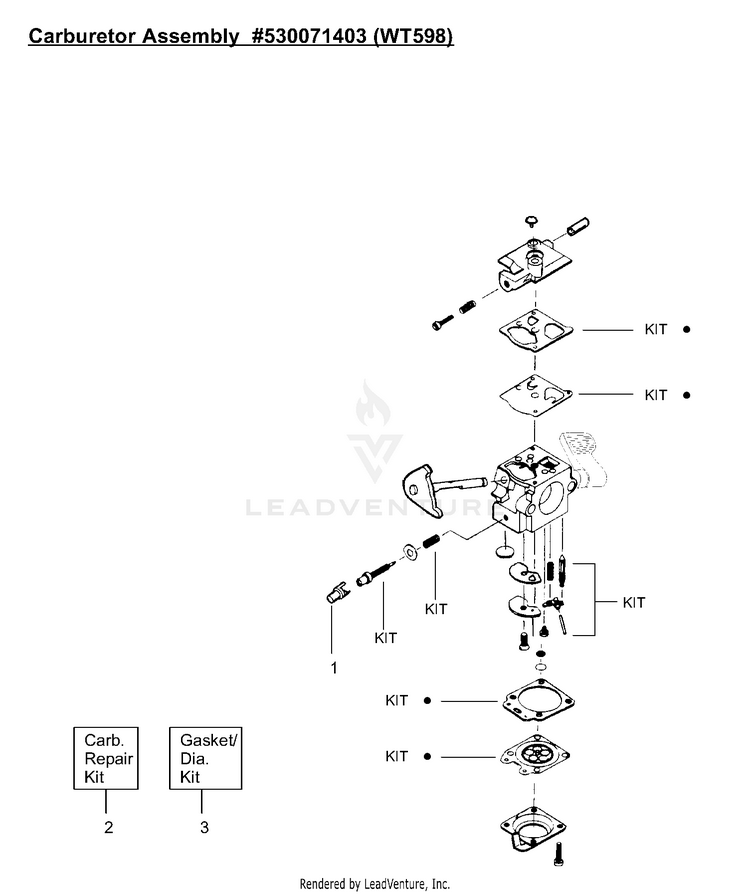

Carburetor Assembly (WT598) P/N 530071403

...
...
1
Limiter Cap PLN-530038403
...
2
Carburetor Repair Kit (KIT = Indicates Contents) PLN-530069824
...
3
Gasket Diaphragm Kit (DOT = Indicates Contents) PLN-530069844
...
530071403
Assy-Carb(WT628) PLN-530071637

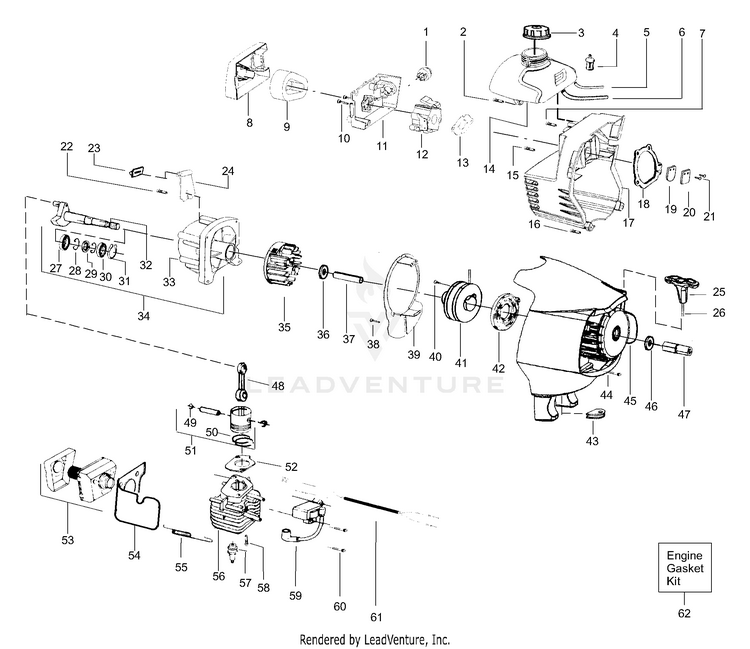

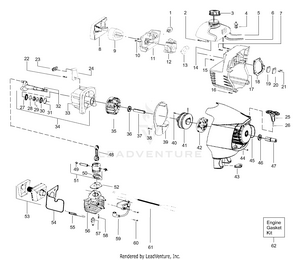

Engine Assembly

...
...
1
Bulb-purge PLN-530047721
...
2
Screw-tank PLN-530015843
...
3
Assy - Fuel Cap w/retainer PLN-530057973
...
4
Assy-Fuel pick-up PLN-530095646
...
5
Kit-Fuel Line PLN-530069247
...
6
Kit-Fuel/Purge line PLN-530069216
...
7
Screw PLN-530015775
...
8
Cover-Air box PLN-530054935
...
9
Filter-Air PLN-530054946
...
10
Screw-carb. PLN-530015849
...
11
Air Box PLN-530054934
...
12
Assy-Carb(WT628) PLN-530071637
...
13
Gasket-Carb. PLN-530071401
...
14
Assy-Fuel Tank PLN-545075305
...
15
Screw-crankcase PLN-530015771
...
16
Screw-shrd to f/hsg. PLN-530015952
...
17
Shroud PLN-530056044
...
18
Gasket-shrd to c/case PLN-530071401
...
19
Valve-reed PLN-530027593
...
20
Stop-reed PLN-530054596
...
21
SCREW 6-19X.437 PLN-545227101
...
22
Screw-tank retainer PLN-530015875
...
23
Isolator-fuel tank PLN-530055492
...
24
Ret.-fuel tank PLN-530054941
...
25
Handle-starter PLN-530054834
...
26
Kit-Rope PLN-530071400
...
27
Bearing-inner PLN-530032103
...
28
Retainer PLN-530015787
...
29
Seal PLN-530019158
...
30
Bearing-outer PLN-530032102
...
31
Retainer-crankshaft PLN-530015789
...
32
Assy-crankshaft PLN-530012430
...
33
Assy-crankcase PLN-530014016
...
34
Assy-c'case/c'shaft (Incl. 27-31,32,33) PLN-530071686
...
35
Kit - Assy.-Flywheel PLN-530071402
...
36
Washer PLN-530016030
...
37
Spacer PLN-530055620
...
38
Screw-baffle PLN-530015775
...
39
Plate-baffle PLN-530056864
...
40
Screw-rope PLN-530016326
...
41
Kit-pulley (Incl. #40) PLN-530071399
...
42
KIT STARTER SPRING PLN-545008011
...
43
Grommet PLN-530019182
...
44
SCREW PLN-530016386
...
45
Housing-Fan w/eyelet PLN-530055248
...
46
Washer PLN-530016030
...
47
Coupling-drive PLN-530012427
...
48
Assy-Connecting rod PLN-530010960
...
49
Retainer-piston pin PLN-530015162
...
50
Ring-Piston PLN-530025875
...
51
Kit-Piston PLN-530069277
...
52
Gasket-Cylinder PLN-530071401
...
53
Kit-Muffler PLN-530069310
...
54
Shield PLN-530058957
...
55
Spring-muffler PLN-530036409
...
56
Kit-Cylinder PLN-530071581
...
57
Spark plug (RCJ-6Y) PLN-952030249
...
58
Bolt-Cylinder PLN-530001624
...
59
Kit - Ignition Module PLN-545081826
...
60
Screw-module PLN-530016357
...
61
Assy-Rear wire PLN-530057238
...
62
Kit-Gasket PLN-530071401

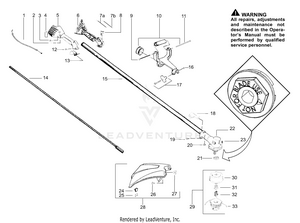

Handle & Shaft Assembly

...
...
1
Assy-Throttle cable PLN-530054942
...
2
Screw-alignment PLN-530015805
...
3
Screw-10-24 PLN-530015886
...
4
Screw-handle/fan hsg. PLN-530015886
...
5
Throttle Hsg.-Right PLN-530054837
...
6
Kit-Left Throttle Hsg. PLN-530071553
...
7A
Assy-Wire Assy-Front wire PLN-530054943
...
7B
Assy-Wire Assy- Front Wire (upper) PLN-530055724
...
8
Kit-Switch PLN-530071356
...
9
Nut 12-24 PLN-530015785
...
10
Assy-Antivibe Handle PLN-530010958
...
11
Bolt PLN-530015784
...
12
Screw PLN-530015886
...
13
Trigger-Throttle PLN-530054940
...
14
Shaft-Flex PLN-530095938
...
15
Assy-Driveshaft PLN-530055355
...
16
Nut 1/4-20" PLN-530015197
...
17
HANDLE KIT PLN-530069347
...
18
Bracket - Shield PLN-530095812
...
19
Screw PLN-530016014
...
20
Screw PLN-530016371
...
21
Non-Blade Dust cup PLN-530095814
...
22
Assy.-Gearbox non blade PLN-530071584
...
23
Screw PLN-530016312
...
24
Limiter-Line PLN-530052285
...
25
Screw PLN-530015805
...
26
Bolt PLN-530015820
...
27
Nut PLN-530091373
...
28
Kit-Shield Ass'y. (Incls. 24-27) PLN-530069779
...
29
Accy--Cutting Head PLN-952711550
...
30
Assy. - Hub/Arbor (3/8lh , 2x) PLN-530095772
...
31
Spring - Return PLN-530053241
...
32
Retainer - Spool PLN-530401957
...
33
Accy--Spool w/Line PLN-952711551
...
xx
Operator Manual Not Shown PLN-530088492
...
xx
Decal-Shaft Warning Not Shown PLN-530055350
...
...
...
