Poulan Pro PP113 Gas Trimmer

Model: PP113 Gas Trimmer, 113 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

CARBURETOR ASSEMBLY

...
...
1
Limiter Cap PLN-530038404
...
3
Fuel Inlet Screen PLN-530035300

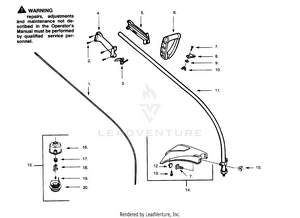

DRIVE SHAFT & CUTTING HEAD

...
...
1
Drive Shaft PLN-530095242
...
2
Screw-Throttle Hsg. PLN-530015880
...
3
Trigger PLN-530038682
...
4
Throttle Hsg. (Right) PLN-530038581
...
5
Throttle Hsg. (Left) PLN-530038580
...
6
Assist Handle PLN-530038708
...
7
Bolt-Handle/Shield PLN-530015820
...
8
Clamp-Handle PLN-530038599
...
9
Washer-Handle PLN-530092062
...
10
Nut PLN-530091373
...
11
Drive Shaft Hsg. Ass'y PLN-530069765
...
12
Line Limiter PLN-530095238
...
13
Screw-Line Limiter PLN-530015814
...
14
Shield Kit Ass'y. (Incl. 7, 10, 12 & 13) PLN-530069686
...
15
Cutting Head Ass'y. (Incl. 16-20) PLN-952701666
...
16
Hub Ass'y PLN-530069690
...
17
Spring PLN-530401464
...
18
Clip-Retainer-Head PLN-530401466
...
19
Screw w/ Washer -Head PLN-530401467
...
20
Spool w/Line PLN-952711527
...
xx
Operator Manual Not Shown. PLN-530083932
...
xx
Shaft Warning Decal Not Shown. PLN-530047899

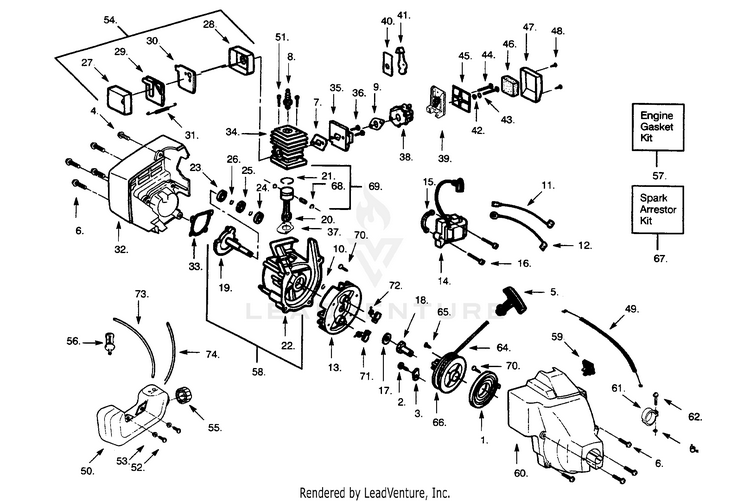

POWER UNIT

...
...
1
STARTER SPRING PLN-545008010
...
2
Screw-Pulley PLN-530015775
...
3
Retainer-Pulley PLN-530027523
...
4
Screw-Shrd/Fan Hsg. PLN-530015934
...
5
Starter Handle PLN-530027569
...
6
SCREW PLN-530016386
...
7
Gasket-Cylind./Carb. PLN-530019233
...
8
Spark Plug (RCJ 8Y) PLN-530030075
...
9
Gasket-Carb. PLN-530019194
...
10
RetainerRing-C'case PLN-530015945
...
11
Lead Wire PLN-530014663
...
12
SWITCH, GROUND WIRE PLN-581425901
...
13
FLYWHEEL ASSY PLN-545221701
...
14
Ignition Module PLN-530039163
...
15
Spacer- Ignit. Module PLN-530036145
...
16
Screw-Ignit. Module PLN-530015954
...
17
Washer-Thrust PLN-530015828
...
18
Drive Coupling PLN-530038604
...
19
Crankshaft Ass'y. PLN-530014532
...
20
Connecting Rod Ass'y. PLN-530069615
...
21
Piston Ring PLN-530036404
...
22
Crankcase Ass'y.(Incl 23-26) PLN-530014861
...
23
Inner Bearing PLN-530032125
...
24
Outer Bearing PLN-530032124
...
25
C'case Seal PLN-530019179
...
26
Retain. Ring-C'shaft PLN-530015941
...
27
Muffler Body PLN-530036578
...
28
Muffler Cover PLN-530036577
...
29
Muffler Baffle-Exit PLN-530038602
...
30
Muffler Baffle-First PLN-530036579
...
31
Muffler Spring PLN-530016197
...
32
Rear Shroud PLN-530038189
...
33
Gasket-C'case PLN-530019181
...
34
Cylinder Kit PLN-530069618
...
35
Carb. Adaptor PLN-530047659
...
36
Screw-Carb Adaptor PLN-530016014
...
37
Gasket-Cylinder PLN-530019223
...
38
Carburetor Kit-WT 223 (Incl. Limiter Cap and Primer Bulb Ass'y) PLN-530069642
...
39
Air Box PLN-530038582
...
40
Choke Plate PLN-530038747
...
41
Choke Shutter PLN-530038686
...
42
Wave Washer PLN-530015254
...
43
Choke Spacer PLN-530015852
...
44
Screw-Carburetor PLN-530015887
...
45
Filter Plate PLN-530036569
...
46
Air Filter Foam PLN-530036575
...
47
Air Filter Cover PLN-530036568
...
48
Screw PLN-530015957
...
49
Assy Throttle Cable PLN-530071548
...
50
Fuel Tank Ass'y PLN-530047255
...
51
Screw-Cylinder PLN-530015953
...
52
Screw-Fuel Tank PLN-530015814
...
53
Washer- Fuel Tank PLN-530016131
...
54
Muffler Kit PLN-530069660
...
55
Fuel Cap Ass'y. PLN-530014347
...
56
Assy-Fuel Pickup PLN-530095646
...
57
Engine Gasket Kit (Incl. 7,9,33,37) PLN-530069616
...
58
C'case & C'shaft Assy. (Incl. 10, 19,22-26) PLN-530014729
...
59
Switch-Momentary PLN-530071356
...
60
Fan Housing Ass'y PLN-530049116
...
61
Clamp-Nose Cone PLN-530016126
...
62
Screw-Nose Cone PLN-530015650
...
63
Nut-Nose Cone PLN-530016124
...
64
Rope Kit PLN-530069232
...
65
Screw-Rope Retain. PLN-530016080
...
66
STARTER PULLEY KIT PLN-530071786
...
67
Spark Arrestor Kit PLN-530069380
...
68
Piston Pin Retainer PLN-530015162
...
69
Piston Kit (Incl. 21,68 & Pin) PLN-530069620
...
70
Screw-Flywheel PLN-530015882
...
71
Starter Dog PLN-530029939
...
72
Starter Dog Spring PLN-530047570
...
73
Fuel Line-Carb./Tank PLN-530069247
...
74
Fuel Line-Prim./Tank PLN-530069216
...
...
...
