product name

Poulan Pro PP1000E Edger Attachment Type 1, Weed 'N Edge

Model: PP1000E Edger Type 1

Save
 Part Not Listed?Part Not Listed?
product name

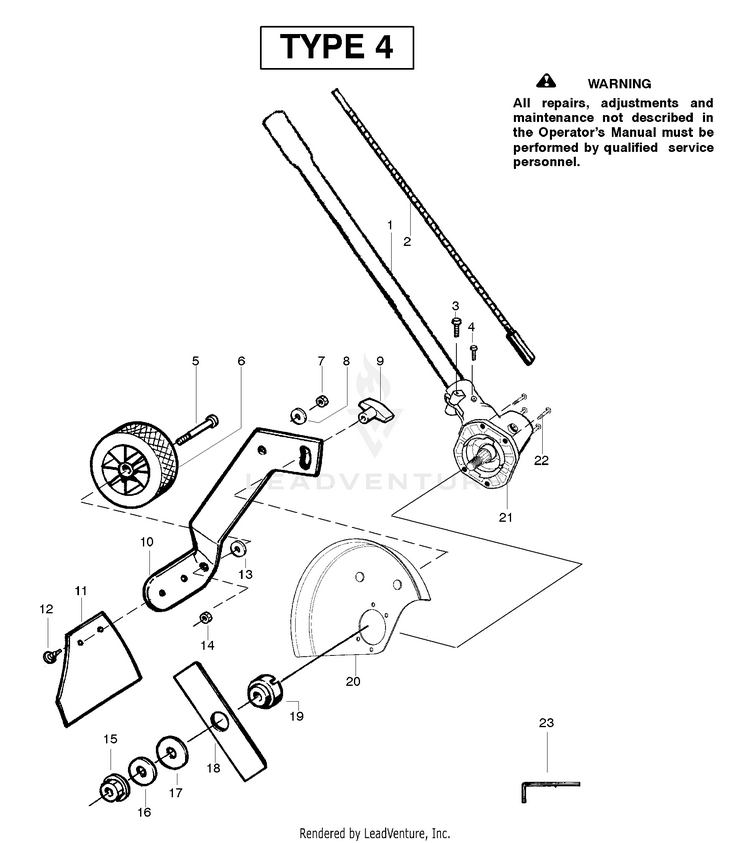

Edger Attachment Assembly Type 4

...
...
1
Assy.-Driveshaft PLN-545006089
...
2
Flexshaft-Split boom PLN-530096183
...
3
Screw PLN-530016014
...
4
Screw-Alignment PLN-530015775
...
5
Bolt-Shoulder Axle PLN-530015981
...
6
Wheel-4" (rubber) PLN-530095125
...
7
Locknut PLN-530015515
...
8
Washer PLN-530092062
...
9
Knob PLN-530092059
...
10
Bracket-Adj. Wheel PLN-530053009
...
11
Kit-Mud Flap (incl.#12) PLN-530071251
...
12
Fastener-Mud Flap PLN-530053012
...
13
Washer PLN-530092062
...
14
Locknut PLN-530015515
...
15
Nut-Flange (L.H.) PLN-530015793
...
16
Washer-Belleville PLN-530016240
...
17
Washer-Flat PLN-530015792
...
18
Accy-7.5" Blade PLN-952711625
...
19
Dustcup PLN-530054623
...
20
Kit-Edger Guard PLN-530071930
...
21
Kit-Gearbox (Incl. 3,4,19,22) PLN-530071586
...
22
Screw PLN-530016312
...
23
Wrench-Hex (5/32") PLN-530031159
...
xx
Manual Not Shown PLN-545167664
...
xx
Hanger-Attachment Not Shown PLN-530150031
...
xx
Decal-Shaft Warning Not Shown PLN-525392401
...
xx
Decal-Guard Warning Not Shown PLN-545074501
...
...
...
