product name

Poulan Pro ET17 Electric Trimmer

Model: ET17 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

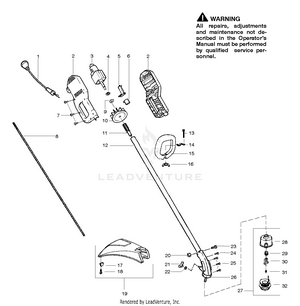

Electric Trimmer Assembly

...
...
1
Assy-Wiring Harness (Incl. Switch) PLN-530402803
...
2
Housing Set PLN-530402797
...
3
Motor PLN-530402688
...
4
Retainer-Clip PLN-530403111
...
5
Trigger Switch PLN-530402799
...
6
Switch PLN-530402802
...
7
Screw PLN-530016120
...
8
Flex Shaft PLN-530095391
...
9
Washer-Drive Adaptor PLN-530403112
...
10
Fan PLN-530402798
...
11
Assy-Drive Adaptor PLN-530402801
...
12
Assy-Tube PLN-530403742
...
13
Bolt PLN-530015820
...
14
Clamp-Assist Handle PLN-530038599
...
15
Handle-Assist PLN-530038584
...
16
Nut PLN-530091373
...
17
Line Limiter PLN-530052286
...
18
Screw-Line Limiter PLN-530015880
...
19
Kit-Shield Ass'y. (Incl.17 & 18) PLN-530069752
...
20
Locknut PLN-530016284
...
21
Wingnut PLN-530016225
...
22
Washer PLN-530092062
...
23
Screw PLN-530016283
...
24
Screw-Alignment PLN-530016224
...
25
Screw PLN-530016202
...
26
Assy-Gear Box PLN-530095638
...
27
Accy-Cutting Head Ass'y. (Incl. 28-32) PLN-952701666
...
28
Kit-Hub Assy. PLN-530069690
...
29
Spring PLN-530401464
...
30
Retainer-Clip PLN-530401466
...
31
Screw w/ Washer-Head PLN-530401467
...
32
Spool w/Line PLN-952711527
...
xx
Operator Manual Not Shown PLN-545117529
...
xx
Shaft Warning Decal Not Shown PLN-530403323
...
...
...
