product name

Poulan Pro 400E Poulan Pro Electric Saw

Model: 400E Poulan Pro Electric Saw, PP400E

Save
 Part Not Listed?Part Not Listed?
product name

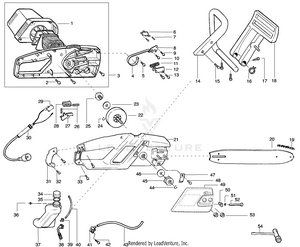

Electric Saw Assembly

...
...
1
Motor Cover PLN-530403212
...
2
Screw PLN-530015814
...
3
Housing/Motor Ass'y. (Incls. #1 & 2) PLN-530404274
...
4
Brake Band PLN-530053076
...
5
Screw PLN-530015932
...
6
Switch-Chain Brake PLN-530053073
...
7
Screw PLN-530015805
...
8
Front/Rear Link Ass'y. PLN-530403233
...
9
Screw-Brake Pivot PLN-530016266
...
10
SCREW M3.63-1.34 X 8MM PLN-574780301
...
11
Spring-Brake PLN-530403479
...
12
Cover Spring PLN-530053334
...
13
Screw PLN-530015775
...
14
Front Handle PLN-530053064
...
15
Screw PLN-530015814
...
16
Spring-Handguard PLN-530403374
...
17
Screw PLN-530016269
...
18
Handguard PLN-530053078
...
19
P/PP CHN 18" 62DL 3/8 .050 PLN-581562301
...
20
Bar 18" PLN-952044418
...
21
Housing Cover PLN-530053061
...
22
Gear Drive PLN-530053048
...
23
Washer-Thrust PLN-530016278
...
24
Ring-Retainer PLN-530042090
...
25
Pinion PLN-530053052
...
26
Spring-Trigger PLN-530042091
...
27
Trigger PLN-530053181
...
28
Lockout Button PLN-530053179
...
29
Switch-Momentary PLN-530402879
...
30
Cord Set PLN-530403322
...
31
Cover-Access PLN-530403217
...
32
Screw PLN-530015814
...
33
Screw PLN-530015775
...
34
CAP OIL PLN-530150552
...
35
OIL TANK CAP (Oil Cap) PLN-530057236
...
36
Check Valve (Duckbill) PLN-530026119
...
37
Oil Tank Ass'y. (Incls. 34,36,38-40 & 44) PLN-530053248
...
38
Oil Pickup Ass'y. PLN-530047663
...
39
Oil Pickup Fitting PLN-530053270
...
40
Inlet Line PLN-530403393
...
41
Oil Pump Ass'y. PLN-530403311
...
42
Screw PLN-530015775
...
43
Outlet Line PLN-530403394
...
44
Ring-Retainer PLN-530042090
...
45
Sprocket (3/8 Pitch) PLN-530053053
...
46
Washer-Sprocket PLN-530016262
...
47
Chain Catcher PLN-530029850
...
48
Screw PLN-530015940
...
49
BAR CLAMP POLO GREEN PLN-530053531
...
50
Pin-Bar Adjust PLN-530053068
...
51
Retainer-Bar Adjust PLN-530024419
...
52
Screw-Bar Adjust PLN-530016265
...
53
Nut-Bar Mounting PLN-530015917
...
54
Bar Wrench PLN-530031163
...
xx
Operator Manual Not Shown PLN-115259726
...
xx
Scabbard Not Shown PLN-530164296
...
xx
Decal-Warning Not Shown PLN-530053853
...
...
...
