Poulan Pro 25HHT Hedge Trimmer

Model: 25HHT Hedge Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

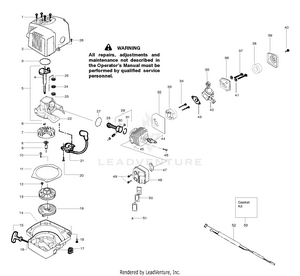

Engine Assembly

...
...
1
Screw PLN-530016386
...
2
Assy-Shroud/H'shield PLN-530058799
...
3
O-Ring-C'case (kit) PLN-530071486
...
4
CRANKSHAFT ASSY PLN-545145801
...
5
Assy-C/case-C/shaft (Incl. #4,6,22) PLN-530071681
...
6
Ring-Retainer-C'shaft PLN-530015941
...
7
FLYWHEEL ASSY PLN-545221701
...
8
Washer-Flat PLN-530015828
...
9
Spacer-Flywheel PLN-530055729
...
10
Screw PLN-530015496
...
11
Plate-Baffle PLN-530055681
...
12
Screw PLN-530016392
...
13
Kit-Starter Pulley (Incl.# 12) PLN-530069353
...
14
Assy-Fan Housing PLN-530058801
...
15
Handle-Starter PLN-530027569
...
16
Kit-Rope PLN-530069232
...
17
Grommet-Ignition Module PLN-530019182
...
18
Screw (f/hsg to shrd) PLN-530016386
...
19
STARTER SPRING PLN-545008010
...
20
Screw PLN-530016357
...
21
Ignition Module PLN-530054137
...
22
Assy-Crankcase (incl. 23-25) PLN-530012510
...
23
Bearing-Outer PLN-530055728
...
24
Seal-Crankcase PLN-530019264
...
25
Bearing-Inner PLN-530032125
...
26
Screw PLN-530015934
...
27
Seal-Cylinder (kit) PLN-530071486
...
28
CONNECTING ROD ASSY PLN-530049817
...
29
Kit-Piston (Incl. 30 & 31) PLN-530071476
...
30
Retainer-Piston Pin PLN-530015162
...
31
PISTON RING PLN-545154009
...
32
Gasket-Carb. Adapt. (kit) PLN-530071486
...
33
Adapter-Carburetor PLN-530057634
...
34
Screw PLN-530016309
...
35
Kit-Choke Lever PLN-530071718
...
36
Air Box PLN-530055680
...
37
Screw PLN-530016429
...
38
Air Filter Foam PLN-530047932
...
39
Air Filter Cover PLN-530055679
...
40
Screw PLN-530015957
...
41
Washer PLN-530015123
...
42
Kit-Carburetor Ass'y. (C1U-W13A) PLN-530071633
...
43
Gasket-Carburetor (kit) PLN-530071486
...
44
Spark Plug (RCJ-6Y) PLN-952030249
...
45
Cylinder PLN-530012553
...
46
Screw PLN-530015953
...
47
Gasket-Muffler (kit) PLN-530071486
...
48
Kit-Muffler (incl. # 47,49.50,51) PLN-530071682
...
49
Bolt-Muffler PLN-530016338
...
50
Kit-Spark Arrestor PLN-530071544
...
51
Screw PLN-530015241
...
52
Assy-Leadwire PLN-530057728
...
53
Kit-Gasket (Incl. #3,27,32,43,47) PLN-530071486
...
xx
Operator Manual Not Shown PLN-545186733
...
xx
Decal-Start Inst. Not Shown PLN-530057594

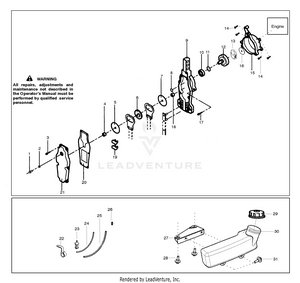

Gearbox & Tank Assembly

...
...
1
Plug-Grease PLN-530016423
...
2
O-ring PLN-214B0700
...
3
Socket Screw Flange PLN-545145422
...
4
Bushing PLN-545145440
...
5
Fixing Plate PLN-11050176
...
6
Gear PLN-545145441
...
7
Fixing Plate PLN-11050176
...
8
C-Snapring for Shaft PLN-545145431
...
9
Cam Case PLN-51068108
...
10
Bearing PLN-545145432
...
11
C-Snapring for Hole PLN-545145430
...
12
Clutch Drum C.P PLN-11014222
...
13
CLUTCH ASSY PLN-530057740
...
14
Screw PLN-530015886
...
15
Engine Base PLN-51070131
...
16
Washer-Clutch PLN-530015611
...
17
Socket Screw Flange PLN-545145423
...
18
Bushing PLN-545145440
...
19
Felt Packing PLN-545145433
...
20
Packing PLN-545145434
...
21
Cam Case Cover PLN-51069105
...
22
Clip-Wire PLN-530016438
...
23
Assy-Fuel Pickup PLN-530095646
...
24
Kit-Fuel Line (small) PLN-530069247
...
25
Kit-Fuel Line (large) PLN-530069216
...
26
Fitting-Fuel Line PLN-530023877
...
27
Bracket-Tank PLN-530057738
...
28
Screw-Retainer PLN-530016431
...
29
Assy - Fuel Cap w/retainer PLN-530057973
...
30
Assy-Fuel Tank (Incl. 23-26, 29) PLN-545104302
...
31
Screw-Retainer PLN-530016379

Handle & Blade Assembly

...
...
1
Kit-Assy-Blade (Incl. 2,3,4,5,6,7,8, & #6 on page 2) PLN-530071809
...
2
Cutter B PLN-91054118
...
3
Cutter guide PLN-11051133
...
4
Step Bolt PLN-31029101
...
5
Conical Spring Washer PLN-545145435
...
6
Cutter Washer PLN-545145436
...
7
Sleeve-Blade PLN-530057997
...
8
U-Hexagon Nut Flange PLN-545145429
...
9
Absorber PLN-36006128
...
10
Washer PLN-530016404
...
11
Screw PLN-530015769
...
12
Handle-Front PLN-530057731
...
13
Socket Screw PLN-545145421
...
14
Tapping Screw PLN-545145424
...
15
Guide PLN-51104147
...
16
Spring PLN-545145438
...
17
Half Gas Lever PLN-36092110
...
18
Stop Switch Assy. PLN-545145439
...
19
Throttle Wire PLN-91001324
...
20
Spring PLN-545145437
...
21
U-Hexagon Nut PLN-545145428
...
22
Handle-Rear (left) PLN-51106137
...
23
Lever PLN-11095167
...
24
Lever PLN-11095166
...
25
Handle -Rear (right) PLN-51106138
...
...
...
