product name

Poulan Pro 2150LX Gas Saw, Woodsman

Model: 2150LX Gas Saw, Woodsman 2150LX Gas Saw

Save
 Part Not Listed?Part Not Listed?
product name

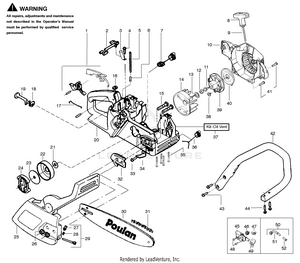

Chassis & Handle Assembly

...
...
1
Kit-Trigger & Lockout PLN-530071832
...
2
Lever-Switch (Includes Pin) PLN-530038227
...
3
Spring-Switch PLN-530016149
...
4
Screw PLN-530015775
...
5
Kit-Fuel Line (Large) PLN-530069216
...
6
Fitting PLN-530023877
...
7
FUEL CAP ASSY PLN-580940901
...
8
Handle-Starter PLN-530056402
...
9
Kit-Rope PLN-530069232
...
10
Housing-Fan PLN-530049334
...
11
Screw PLN-530015920
...
12
Nut-Flywheel PLN-530016134
...
13
Washer-Flywheel PLN-530015127
...
14
FLYWHEEL ASSY PLN-530047534
...
15
Bolt-Bar Mounting PLN-530016133
...
16
Nut-Speed PLN-530015922
...
17
Wire-Throttle PLN-530037809
...
18
Grommet-Choke Knob PLN-530049005
...
19
Lever-Choke PLN-530047989
...
20
Assy-Chassis (Incl. fuel lines & caps) PLN-530058909
...
21
Washer - Thrust PLN-530015907
...
22
Assy-Drum W/brg. PLN-530047061
...
23
Washer-Clutch PLN-530015611
...
24
Assy. - Clutch PLN-530014949
...
25
Assy-Chain Brake PLN-545139906
...
26
Nut-Bar Mounting PLN-530015917
...
27
Pin-Bar Adjust PLN-530015826
...
28
Retainer-Bar Adjust PLN-530038593
...
29
Kit-Bar Adjust (incl.27,28) PLN-530069611
...
30
BAR 14" .050 3/8 041 52DL PLN-952044368
...
31
ACCY CHN 14" 52DL 3/8 .050 PLN-581562101
...
32
Plate-Bar Mounting PLN-530038238
...
33
Screw PLN-530015814
...
34
Chain Catcher PLN-530029850
...
35
Screw PLN-530016132
...
36
Assy-Oil Cap PLN-530057236
...
37
Kit-Oil Vent PLN-530071666
...
38
Screw PLN-530016080
...
39
STARTER PULLEY PLN-545034301
...
40
SPRING STARTER PLN-545008015
...
41
Screw PLN-530015892
...
42
Handle-Front PLN-530059173
...
43
Screw PLN-530015814
...
44
Screw PLN-530015940
...
45
Kit-Oil Pump (incl 46,47,49) PLN-530071259
...
46
Gear-Worm Spring PLN-530037820
...
47
Elbow-Oil Pickup PLN-530049477
...
48
SCREW 6-19X.437 PLN-545227101
...
49
Seal Block PLN-530019206
...
50
Assy-Oil-Pickup (Incl. 51,52) PLN-530047663
...
51
Pickup-Oiler PLN-530038373
...
52
Filter-Oil PLN-530056533

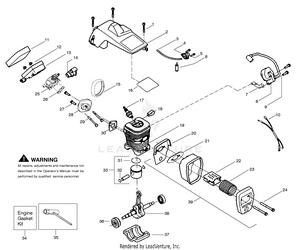

Engine Assembly

...
...
1
Screw p PLN-530016153
...
2
Assy-Cylinder Shield (includes # 16) PLN-530055637
...
3
Kit-Fuel Line (Small) PLN-530069247
...
4
Kit-Purge Bulb PLN-530071835
...
5
Screw PLN-530015780
...
6
Assy-Fuel Pick-up PLN-530095646
...
7
Strap-Ground PLN-530047442
...
8
Ignition Module PLN-530039198
...
9
Screw PLN-530015814
...
10
Assy-Wire Harness PLN-530052296
...
11
Foam-Air Filter PLN-530037793
...
12
Nut PLN-530016101
...
13
Assy-Air Box PLN-530057480
...
14
Grommet-Carb Adjust PLN-530035526
...
15
Seal-Carb Adapter PLN-530054144
...
16
Reflector-Heat PLN-530055698
...
17
BPMR7A NGK SPARK PLUG PLN-503235111
...
18
Clip-High Tension Lead PLN-530016136
...
19
Cylinder PLN-530012550
...
20
Backplate-Muffler PLN-530049870
...
21
Gasket-Muffler(kit) PLN-530069608
...
22
Diffuser-Muffler PLN-530037813
...
23
Screen-Spark PLN-530036103
...
24
Bolt-Muffler PLN-530016132
...
25
Kit-Carburetor (Walbro-WT-89) PLN-545081885
...
25
Kit-Carburetor (Walbro-WT-89) PLN-545081885
...
26
Gasket-Carb. (kit) PLN-530069608
...
27
Screw PLN-530016386
...
28
Carb. Adapter PLN-530049700
...
29
Screw PLN-530016187
...
30
Gasket- Adaptor(kit) PLN-530069608
...
31
Ring-Piston PLN-545160401
...
32
Retainer-Piston Pin PLN-530015697
...
33
Kit-Piston (Incl. 31 & 32) PLN-530071408
...
34
Kit-Engine Gasket (Incl. 21, 26 & 30) PLN-530069608
...
35
Bar Wrench PLN-530031163
...
36
Assy-Seal & Bearing PLN-530056363
...
37
Cap-Crankcase PLN-530037935
...
38
CRANKSHAFT ASSY PLN-545113101
...
39
MUFFLER (Incl. 20-24) PLN-530071904
...
xx
Manuals Not Shown PLN-530164603
...
xx
Decal-Warning Not Shown PLN-530057757
...
xx
Decal-Start Inst. Not Shown PLN-530059229
...
...
...
