product name

Poulan Paramount SK80C-00 Electric Trimmer

Model: SK80C-00 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

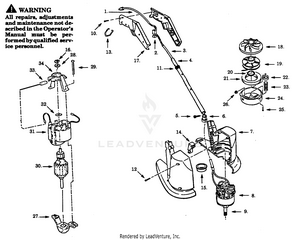

TRIMMER ASSEMBLY

...
...
1
Power Cord PLN-534234501
...
2
Trigger Switch PLN-534193001
...
3
Harness PLN-534305805
...
4
Tube PLN-534386403
...
5
Screw PLN-534624002
...
6
Rain Guard PLN-534299724
...
7
R.H./L.H. Housing PLN-534273574
...
8
Motor PLN-534517300
...
9
Drive Adapter PLN-534167100
...
10
Screw PLN-534193700
...
11
Bushing PLN-534356805
...
12
Screw PLN-534193800
...
13
Hanger PLN-534270100
...
14
Blade Retainer PLN-534525205
...
15
Air Baffle PLN-534455305
...
16
Retaining Ring PLN-534605011
...
17
R.H./L.H. Handle PLN-534356734
...
18
Rear Plate PLN-534167225
...
19
Spool & Line PLN-952710514
...
20
O-Ring PLN-534316200
...
21
Foam Pad PLN-534167700
...
22
Adapter Nut PLN-534166700
...
23
Spring PLN-534167500
...
24
Hub Ass'y. PLN-534167915
...
25
Cotter Pin PLN-534270300
...
26
Eyelet PLN-534167600
...
27
Endbell Ass'y. (Drive) PLN-534872701
...
28
Washer PLN-534608056
...
29
Screw PLN-534619037
...
30
Armature Ass'y. PLN-534517400
...
31
Field Ass'y. PLN-534521010
...
32
Washer PLN-534608056
...
33
Brush PLN-534600042
...
34
Endbell Ass'y. (Brush) PLN-534522012
...
...
...
