Poulan Paramount SK165-00 Electric Trimmer

Model: SK165-00 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

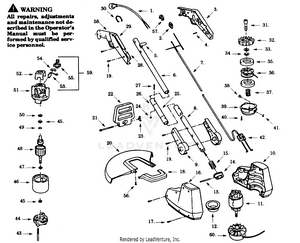

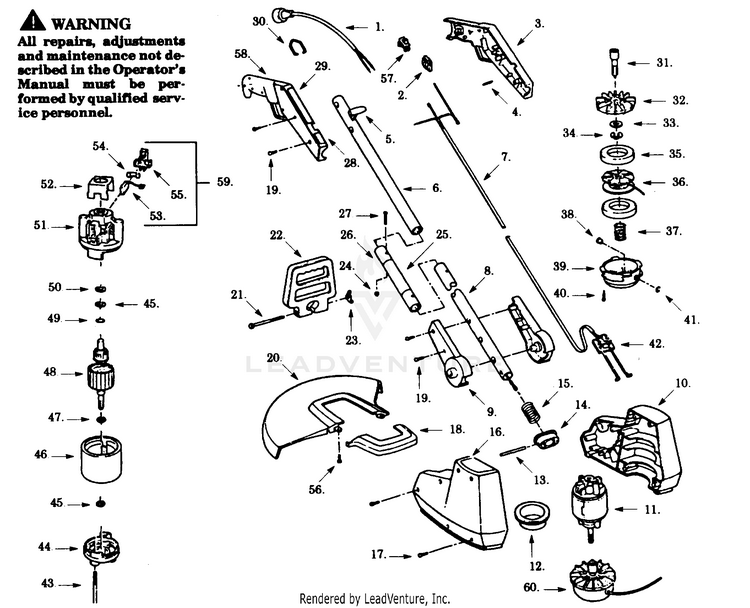

TRIMMER/BRUSHCUTTER ASSEMBLY

...
...
1
Power Cord PLN-534234500
...
2
Trigger Switch PLN-534193001
...
3
R.H./L.H. Handle PLN-534697014
...
4
Hinge Pin PLN-534327202
...
5
Cable & Lever Ass'y. PLN-534685801
...
6
Upper Tube PLN-534696200
...
7
Harness PLN-534316003
...
8
Lower Tube PLN-534682800
...
9
R.H./L.H. Pivot PLN-534677704
...
10
R.H./L.H. Housing PLN-534677024
...
11
Motor PLN-534225020
...
12
Air Baffle PLN-534487255
...
13
Sleeve Pin PLN-534679100
...
14
Sleeve PLN-534677905
...
15
Sleeve Spring PLN-534679200
...
16
Hsg. Top Label PLN-534672700
...
17
Screw PLN-534222400
...
18
Front Guard PLN-534677204
...
19
Screw PLN-534193700
...
20
Guard & Blade Ass'y. PLN-534685124
...
21
Bolt PLN-534218100
...
22
Assist Handle PLN-534282705
...
23
Wing Nut PLN-534437000
...
24
Nut PLN-530403094
...
25
Warning Label (Not a serviceable part) PLN-534688600
...
26
Outer Tube PLN-534696300
...
27
Screw PLN-534174502
...
28
Inch Cut Label (Not a serviceable part) PLN-534672201
...
29
Handle Label (Not a serviceable part) PLN-534672300
...
30
Hanger PLN-534270100
...
31
Drive Adapter PLN-534589900
...
32
Rear Plate PLN-534487115
...
33
Washer PLN-534220146
...
34
Retaining Ring PLN-534246703
...
35
Foam Pad PLN-534158602
...
36
Spool & Line PLN-534486815
...
37
Spring PLN-534157401
...
38
Eyelet PLN-534157600
...
39
Hub Ass'y. PLN-534486465
...
40
Cotter pin PLN-534270301
...
41
Wire Ring PLN-534157600
...
42
P.C. Bridge PLN-534327000
...
43
Screw PLN-534228700
...
44
Endbell Ass'y. (Drive) PLN-534207101
...
45
Washer PLN-534228800
...
46
Field Ass'y. PLN-534227001
...
47
Retaining Ring PLN-534747002
...
48
Armature Ass'y. PLN-534225120
...
49
Retaining Ring PLN-534246700
...
50
Washer PLN-534238903
...
51
Endbell Ass'y. (Brush) PLN-534227501
...
52
Insulator PLN-534226000
...
53
Brush PLN-534227800
...
54
Brush Spring PLN-534228000
...
55
Brush Holder PLN-534227700
...
56
Screw PLN-534184704
...
57
Power Switch PLN-534332500
...
58
Torque Booster Label (Not a serviceable part) PLN-534672800
...
59
Brush Kit (Incl. 53,54,55) PLN-534450400
...
60
Cutting Head Ass'y. PLN-534722625
...
61
Operator Manual Not Shown. PLN-534885450
...
...
...
