Poulan Paramount SK140C-00 Electric Trimmer

Model: SK140C-00 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

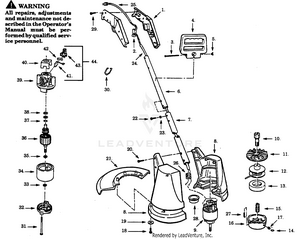

TRIMMER ASSEMBLY

...
...
1
R.H./L.H. Handle PLN-534356734
...
2
Trigger Switch PLN-534193001
...
3
Bolt PLN-534218100
...
4
Side Handle PLN-534282605
...
5
Wing Nut PLN-534437000
...
6
Upper Handle Tube PLN-534222506
...
7
Lower Handle Tube PLN-534223201
...
8
R.H./L.H. Housing PLN-534271634
...
9
Motor PLN-534225020
...
10
Drive Adapter PLN-534659505
...
11
Rear Plate PLN-534487125
...
12
Spool & Line PLN-952710508
...
13
Foam Pad PLN-534158602
...
14
Retaining Ring PLN-534487402
...
15
Spring PLN-534157401
...
16
Hub PLN-534486425
...
17
Eyelet PLN-534157600
...
18
Screw PLN-534193800
...
19
Washer PLN-534653000
...
20
Screw PLN-534222400
...
21
Line Cutter Guard PLN-534379604
...
22
Screw PLN-534970001
...
23
Washer PLN-534713000
...
24
Harness PLN-534162406
...
25
Power Cord PLN-534234501
...
26
P.C. Bridge Kit PLN-534404400
...
27
Cotter Pin PLN-534270301
...
28
Air Baffle PLN-534487214
...
29
Screw PLN-534193700
...
30
Hanger PLN-534270100
...
31
Screw PLN-534228700
...
32
Endbell Output PLN-534207101
...
33
Washer PLN-534228800
...
34
Field Ass'y. PLN-534227001
...
35
Retainer Ring PLN-534747002
...
36
Armature PLN-534225120
...
37
Retainer Ring PLN-534246700
...
38
Washer PLN-534238903
...
39
Endbell (Brush) PLN-534227501
...
40
Insulator PLN-534226000
...
41
Brush PLN-534227800
...
42
Spring PLN-534228000
...
43
Brush Holder PLN-534227700
...
44
Brush Kit (Incl. 41,42,43) PLN-534450400
...
...
...
