Poulan Paramount SK100-01 Electric Trimmer

Model: SK100-01 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

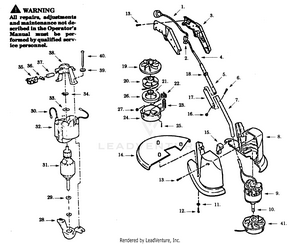

TRIMMER ASSEMBLY

...
...
1
Power Cord PLN-534234500
...
2
Switch PLN-534193001
...
3
R.H./L.H. Handle PLN-534356714
...
4
Harness PLN-534162311
...
5
Upper Tube PLN-534379800
...
6
Screw PLN-534393300
...
7
Lower Tube PLN-534379700
...
8
R.H./L.H. Housing PLN-534273514
...
9
Motor PLN-534638602
...
10
Drive Adapter PLN-534167100
...
11
Washer PLN-534653000
...
12
Screw PLN-534193700
...
13
Screw PLN-534193800
...
14
Guard PLN-534271914
...
15
Blade Retainer PLN-534292705
...
16
Nut PLN-534393500
...
17
Outer Tube PLN-534393200
...
18
Bushing PLN-534356805
...
19
Rear Plate PLN-534167215
...
20
Spool & Line PLN-534167805
...
21
O-Ring PLN-534316200
...
22
Adapter Nut PLN-534166700
...
23
Spring PLN-534819200
...
24
Hub Ass'y. PLN-534167935
...
25
Cotter Pin PLN-534270300
...
26
Foam Pad PLN-534167600
...
27
Eyelet PLN-534167600
...
28
Endbell Ass'y. (Drive) PLN-534872701
...
29
Washer PLN-534520022
...
30
Leadwire Ass'y. PLN-534810031
...
31
Armature Ass'y. PLN-534010701
...
32
Field Ass'y. PLN-534294703
...
33
Washer PLN-534520031
...
34
Retainer Ring PLN-534246701
...
35
Brush Holder PLN-534260007
...
36
Brush Spring PLN-534570009
...
37
Brush PLN-534200018
...
38
Endbell Ass'y. (Brush) PLN-534710641
...
39
Lockwasher PLN-534500020
...
40
Screw PLN-534500026
...
41
Cutting Head Ass'y. PLN-534167005
...
42
Operator Manual Not Shown. PLN-534883491
...
...
...
