Poulan Paramount PT90 Electric Trimmer

Model: PT90 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

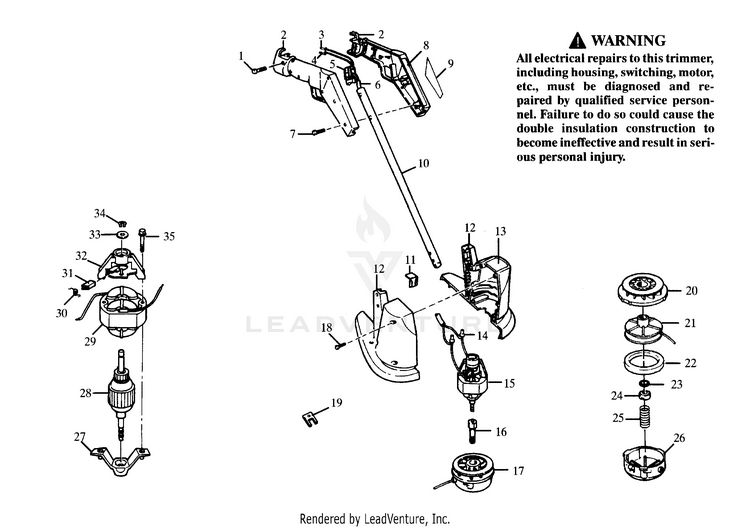

TRIMMER ASSEMBLY

...
...
1
Screw PLN-534826802
...
2
Handle Set PLN-534826502
...
3
Wire Blade Ass'y. PLN-534825700
...
4
Wire Blade Ass'y. PLN-534827900
...
5
Trigger Switch PLN-534193003
...
6
Harness PLN-534762007
...
7
Screw PLN-534826801
...
8
Handle Label (Not a serviceable part) PLN-534826900
...
9
Warning Label PLN-534827600
...
10
Tube PLN-534826700
...
11
Line Cutter PLN-534833500
...
12
Housing Set PLN-534826602
...
13
Housing Top Label PLN-534825800
...
14
Terminal Cap PLN-534561000
...
15
Motor Ass'y. PLN-534827000
...
16
Shaft Adapter PLN-534787800
...
17
Cutting Head Ass'y. PLN-534167065
...
18
Screw PLN-534826800
...
19
Spanner Wrench PLN-534166800
...
20
Rear Plate/Baffle Ass'y. PLN-534832900
...
21
Spool w/Line PLN-534167805
...
22
Foam Pad PLN-534167700
...
23
O-Ring PLN-534316200
...
24
Adapter Nut PLN-534166700
...
25
Spring PLN-534819200
...
26
Hub Ass'y. PLN-534167935
...
27
Endbell Ass'y. PLN-534872701
...
28
Armature Ass'y. PLN-534827100
...
29
Field Ass'y. PLN-534521010
...
30
Brush Spring PLN-534601015
...
31
Carbon Brush PLN-534600042
...
32
Bracket/Plate Ass'y. PLN-534522012
...
33
Washer, Shim PLN-534608056
...
34
Retaining Ring PLN-534605011
...
35
Screw PLN-534619037
...
xx
Operator Manual Not Shown. PLN-534886120
...
...
...
