Poulan Paramount PT70-02 Electric Trimmer

Model: PT70-02 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

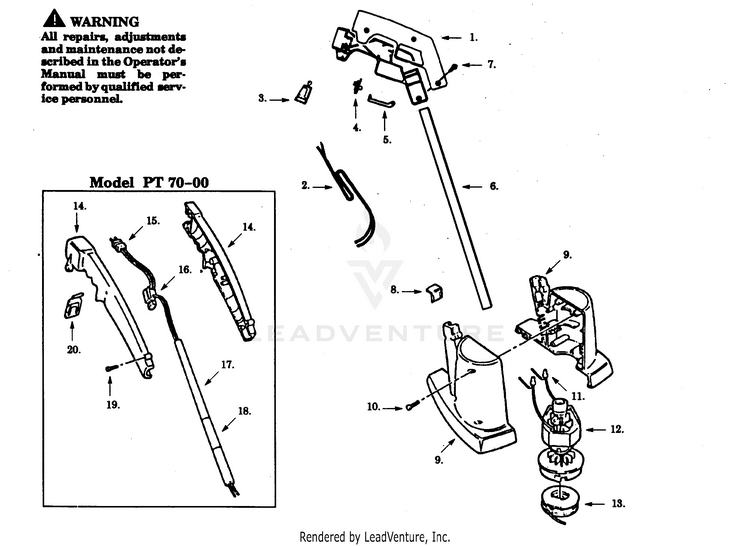

TRIMMER ASSEMBLY

...
...
1
Handle Set PLN-530351822
...
2
Harness Ass'y. PLN-534014581
...
3
Cord Retainer PLN-530347653
...
4
On/Off Switch PLN-530347897
...
5
Trigger PLN-530351826
...
6
Tube Assy. w/Decal PLN-534014577
...
7
Screw PLN-534184700
...
8
Line Cutter PLN-534789700
...
9
Housing Set PLN-534291022
...
10
Screw PLN-534193800
...
11
Terminal Cap PLN-534561000
...
12
Motor & Head Ass'y. PLN-534763001
...
13
Spool & Line PLN-534264805
...
14
Handle Set PLN-534192415
...
15
Harness Ass'y. PLN-534802500
...
16
Switch PLN-534193003
...
17
Handle Tube PLN-534801600
...
18
Warning Label PLN-534802700
...
19
Screw PLN-534184700
...
20
Cord Retainer PLN-534781115
...
xx
Operator Manual Not Shown. PLN-534068464
...
xx
Carton (Not a serviceable part) Not Shown. PLN-534061526
...
...
...
