Poulan Paramount PT160-00 Electric Trimmer

Model: PT160-00 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

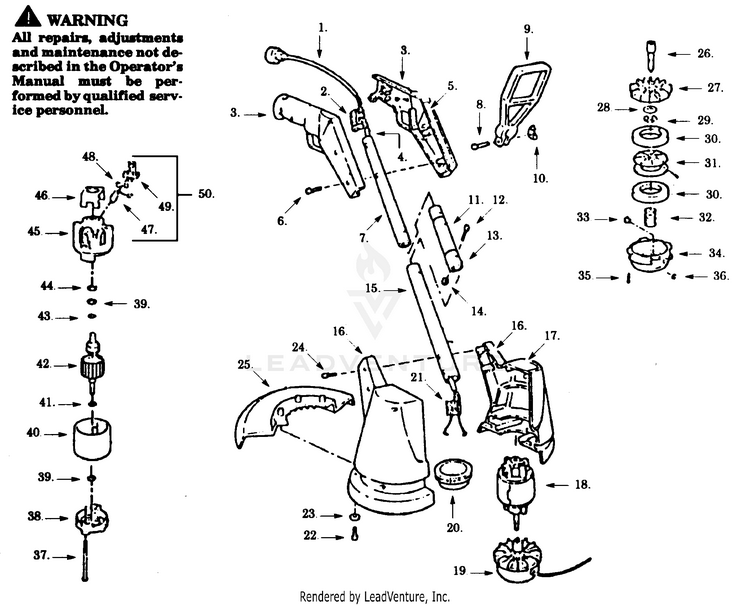

TRIMMER/BRUSHCUTTER ASSEMBLY

...
...
1
Power Cord PLN-534234500
...
2
Trigger Switch PLN-534193001
...
3
Handle Set PLN-534356772
...
4
Harness PLN-534551703
...
5
Handle Label PLN-534764900
...
6
Screw PLN-534193700
...
7
Upper Tube PLN-534696201
...
8
Bolt PLN-534218105
...
9
Assist Handle Ass'y. PLN-534156405
...
10
Wing Nut PLN-534437000
...
11
Warning Label (Not a serviceable part) PLN-534764500
...
12
Screw PLN-534174502
...
13
Outer Tube PLN-534696300
...
14
Nut PLN-530403094
...
15
Lower Tube PLN-534761300
...
16
Housing Set PLN-534271672
...
17
Housing Label (Not a serviceable part) PLN-534764100
...
18
Motor Ass'y. PLN-534768300
...
19
Cutting Head Ass'y. PLN-534631845
...
20
Air Baffle PLN-534487215
...
21
P.C. Bridge PLN-534336600
...
22
Screw PLN-534193800
...
23
Washer PLN-534653000
...
24
Screw PLN-534222400
...
25
Guard & Blade Ass'y. PLN-534379655
...
26
Drive Adapter PLN-534589900
...
27
Rear Plate PLN-534487115
...
28
Washer PLN-534220146
...
29
Retaining Ring PLN-534246703
...
30
Foam Pad PLN-534158602
...
31
Spool & Line PLN-534486805
...
32
Spring PLN-534157401
...
33
Eyelet PLN-534157600
...
34
Hub Ass'y. PLN-534486465
...
35
Cotter Pin PLN-534270301
...
36
Wire Ring PLN-534157600
...
37
Screw PLN-534228703
...
38
Endbell Ass'y. (Drive) PLN-534207101
...
39
Washer PLN-534228800
...
40
Field Ass'y. PLN-534227004
...
41
Retaining Ring PLN-534747002
...
42
Armature Ass'y. PLN-534767700
...
43
Retaining Ring PLN-534246700
...
44
Washer PLN-534238903
...
45
Endbell Ass'y. (Brush) PLN-534227501
...
46
Insulator PLN-534226000
...
47
Carbon Brush PLN-534227800
...
48
Brush Spring PLN-534228000
...
49
Brush Holder PLN-534227700
...
50
Brush Kit (Incl. 47,48,49) PLN-534450400
...
51
Operator Manual Not Shown. PLN-534885760
...
...
...
