Poulan Paramount PT145-00 Electric Trimmer

Model: PT145-00 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

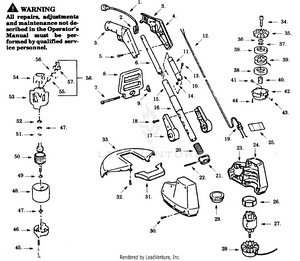

TRIMMER ASSEMBLY

...
...
1
Power Cord PLN-534234500
...
2
Trigger Switch PLN-534193001
...
3
Handle Set PLN-534356772
...
4
Handle Label (Not a serviceable part) PLN-534766100
...
5
Screw PLN-534193700
...
6
Upper Tube PLN-534696201
...
7
Bolt PLN-534218100
...
8
Assist Handle Ass'y. PLN-534282605
...
9
Wing Nut PLN-534437000
...
10
Outer Tube PLN-534696301
...
11
Warning Label (Not a serviceable part) PLN-534786200
...
12
Harness Ass'y. PLN-534486805
...
13
Screw PLN-534174502
...
14
Nut PLN-530403094
...
15
Lower Tube PLN-534766400
...
16
Sponge Grip PLN-534766800
...
17
Pivot Set PLN-534677705
...
18
Screw PLN-534184700
...
19
P.C. Bridge Ass'y. PLN-534336600
...
20
Spring PLN-534679200
...
21
Sleeve PLN-534677904
...
22
Sleeve Pin PLN-534679100
...
23
Housing Set PLN-534677024
...
24
Hsg. Top Label PLN-534766000
...
25
Shield Insulator PLN-534337100
...
26
Adapter Ring PLN-534286505
...
27
Motor Ass'y. PLN-534768300
...
28
Cutting Head Ass'y. PLN-534631845
...
29
Air Baffle PLN-534487255
...
30
Screw PLN-534222400
...
31
Front Guard PLN-534677212
...
32
Screw PLN-534184704
...
33
Guard & Blade Ass'y. PLN-534683715
...
34
Drive Adapter PLN-534589900
...
35
Rear Plate PLN-534487115
...
36
Washer PLN-534220146
...
37
Retaining Ring PLN-534246703
...
38
Foam Pad PLN-534158600
...
39
Spool & Line PLN-534486805
...
40
Spring PLN-534157401
...
41
Eyelet PLN-534157600
...
42
Hub Ass'y. PLN-534486465
...
43
Wire Retaining Ring PLN-534157600
...
44
Cotter Pin PLN-534270301
...
45
Screw PLN-534228703
...
46
Endbell Ass'y. (Drive) PLN-534207101
...
47
Washer PLN-534228800
...
48
Field Ass'y. PLN-534227004
...
49
Retaining Ring PLN-534747002
...
50
Armature Ass'y. PLN-534767700
...
51
Retaining Ring PLN-534246700
...
52
Washer PLN-534238903
...
53
Endbell Ass'y. (Brush) PLN-534227501
...
54
Insulator PLN-534226000
...
55
Carbon Brush PLN-534227800
...
56
Brush Spring PLN-534228000
...
57
Brush Holder PLN-534227700
...
58
Brush Kit (Incl. 55,56,57) PLN-534450400
...
59
Operator Manual Not Shown. PLN-534885790
...
...
...
