Poulan Paramount PT120-03 Electric Trimmer

Model: PT120-03 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

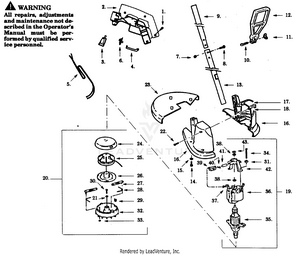

TRIMMER ASSEMBLY

...
...
1
Screw PLN-534193800
...
2
Handle Set PLN-530351822
...
3
Cord Retainer PLN-530347653
...
4
Trigger Switch PLN-530351826
...
5
Harness Assembly PLN-534014601
...
6
On/Off Switch PLN-530347897
...
7
Nut PLN-530403094
...
8
Screw PLN-530346034
...
9
Upper Handle Tube PLN-534500111
...
10
Screw PLN-530625509
...
11
Wing Nut PLN-530400013
...
12
Assist Handle PLN-534036733
...
13
Tube Assy. w/ Decal PLN-534014599
...
14
Screw PLN-534193700
...
15
Washer PLN-530015992
...
16
Housing Set PLN-534014580
...
17
Decal (Not a serviceable part) PLN-534036745
...
18
Decal (Not a serviceable part) PLN-534036696
...
19
Motor Assembly PLN-534968403
...
20
Cutting Head Ass'y PLN-534918302
...
21
Washer PLN-534908700
...
22
Screw PLN-534193800
...
23
Guard PLN-534368004
...
24
Cover PLN-534919200
...
25
Spool w/Line PLN-534919001
...
26
Cam PLN-534100640
...
27
Arm PLN-530400713
...
28
Spring PLN-534908501
...
29
Line Saver PLN-534918500
...
30
Screw PLN-534978600
...
31
Washer PLN-534520020
...
32
Housing Ass'y. (Inc. 27,28,29,32,33) PLN-530400739
...
33
Nut PLN-534400701
...
34
Screw PLN-534500261
...
35
Armature/End Bell PLN-534981703
...
36
Field Ass'y PLN-534367803
...
37
Terminal Bridge PLN-534927300
...
38
Washer PLN-534494616
...
39
Brush Holder Ass'y PLN-534260007
...
40
Spring PLN-534570009
...
41
Brush PLN-534200018
...
42
End Bell Ass'y PLN-534872601
...
43
Retaining Ring PLN-534246701
...
xx
Operator Manual Not Shown. PLN-534068490
...
xx
Carton (Not a serviceable part) Not Shown. PLN-534061540
...
xx
Carton Contents Bag Not Shown. PLN-534014596
...
...
...
